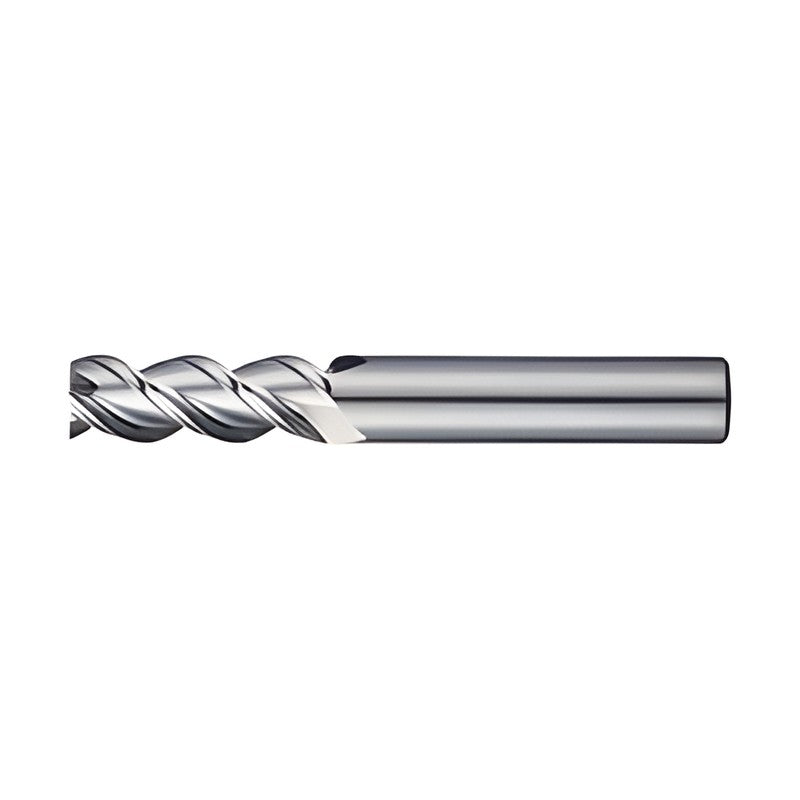

Korloy 3 Flutes Flat End Mill WAE303 / WAE323

Korloy 3 Flutes Flat End Mill WAE303 / WAE323

3 flutes flat end mill wae303 / wae323 from the A-Star end mill line for aluminum, aluminum alloys and non-ferrous materials.

Key features

  • Fine grain carbide
  • 45° helix angle
  • Uncoated

Specifications

Helix angle 45°
Coating Uncoated
Shank tolerance h6
WAE303010-02 D (mm): 1 | Shank d (mm): 6 | Flute length (mm): 2 | L (mm): 40
WAE303010-025 D (mm): 1 | Shank d (mm): 6 | Flute length (mm): 2.5 | L (mm): 40
WAE303010 D (mm): 1 | Shank d (mm): 6 | Flute length (mm): 3 | L (mm): 50
WAE303010-04 D (mm): 1 | Shank d (mm): 6 | Flute length (mm): 4 | L (mm): 60
WAE303010-06 D (mm): 1 | Shank d (mm): 6 | Flute length (mm): 6 | L (mm): 60
WAE303012 D (mm): 1.2 | Shank d (mm): 6 | Flute length (mm): 4 | L (mm): 50
WAE303015-03 D (mm): 1.5 | Shank d (mm): 6 | Flute length (mm): 3 | L (mm): 40
WAE303015 D (mm): 1.5 | Shank d (mm): 6 | Flute length (mm): 5 | L (mm): 50
WAE303015-06 D (mm): 1.5 | Shank d (mm): 6 | Flute length (mm): 6 | L (mm): 60
WAE303015-08 D (mm): 1.5 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 60
WAE303015-10 D (mm): 1.5 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 60
WAE303020-03 D (mm): 2 | Shank d (mm): 6 | Flute length (mm): 3 | L (mm): 40
WAE303020 D (mm): 2 | Shank d (mm): 6 | Flute length (mm): 6 | L (mm): 50
WAE303020-08 D (mm): 2 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 60
WAE303020-10 D (mm): 2 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 60
WAE303020-12 D (mm): 2 | Shank d (mm): 6 | Flute length (mm): 12 | L (mm): 60
WAE303025 D (mm): 2.5 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 40
WAE303025-10 D (mm): 2.5 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 55
WAE303025-12 D (mm): 2.5 | Shank d (mm): 6 | Flute length (mm): 12 | L (mm): 60
WAE303030-04 D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 4 | L (mm): 45
WAE303030-08 D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 45
WAE303030 D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 12 | L (mm): 55
WAE303031 D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 65
WAE323030 D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 70
WAE323031 D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 25 | L (mm): 75
WAE323032 D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 30 | L (mm): 80
WAE303035 D (mm): 3.5 | Shank d (mm): 6 | Flute length (mm): 12 | L (mm): 55
WAE303040-05 D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 5 | L (mm): 45
WAE303040-08 D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 45
WAE303040-11 D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 11 | L (mm): 45
WAE303040 D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 14 | L (mm): 55
WAE303040-16 D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 16 | L (mm): 65
WAE303041 D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 70
WAE323040 D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 26 | L (mm): 75
WAE323041 D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 30 | L (mm): 80
WAE303045 D (mm): 4.5 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 55
WAE303050-06 D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 6 | L (mm): 45
WAE303050 D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 17 | L (mm): 55
WAE303051 D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 22 | L (mm): 60
WAE303052 D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 26 | L (mm): 70
WAE323050 D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 31 | L (mm): 75
WAE323051 D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 36 | L (mm): 80
WAE323052 D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 41 | L (mm): 85
WAE323053 D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 46 | L (mm): 90
WAE303055 D (mm): 5.5 | Shank d (mm): 6 | Flute length (mm): 17 | L (mm): 55
WAE303060-07 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 7 | L (mm): 50
WAE303060-13 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 50
WAE303060 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 17 | L (mm): 60
WAE303061 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 22 | L (mm): 60
WAE303062 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 26 | L (mm): 70
WAE303063 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 31 | L (mm): 75
WAE323060 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 36 | L (mm): 80
WAE323061 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 43 | L (mm): 90
WAE323062 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 51 | L (mm): 100
WAE303070 D (mm): 7 | Shank d (mm): 8 | Flute length (mm): 23 | L (mm): 65
WAE303080-10 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 10 | L (mm): 60
WAE303080-20 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 60
WAE303080 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 23 | L (mm): 70
WAE303080-29 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 29 | L (mm): 80
WAE303081 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 31 | L (mm): 80
WAE303082 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 36 | L (mm): 85
WAE323080 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 41 | L (mm): 90
WAE323081 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 46 | L (mm): 95
WAE323082 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 51 | L (mm): 100
WAE323083 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 56 | L (mm): 105
WAE323084 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 66 | L (mm): 110
WAE303090 D (mm): 9 | Shank d (mm): 10 | Flute length (mm): 28 | L (mm): 70
WAE303100-12 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 12 | L (mm): 65
WAE303100-23 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 23 | L (mm): 65
WAE303100 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 28 | L (mm): 75
WAE303100-33 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 33 | L (mm): 90
WAE303101 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 36 | L (mm): 90
WAE303100-41 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 41 | L (mm): 90
WAE303102 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 46 | L (mm): 100
WAE303103 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 51 | L (mm): 100
WAE323100 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 56 | L (mm): 110
WAE323100-61 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 61 | L (mm): 110
WAE323101 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 66 | L (mm): 120
WAE303110 D (mm): 11 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 80
WAE303120-14 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 14 | L (mm): 70
WAE303120-27 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 27 | L (mm): 70
WAE303120 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 33 | L (mm): 80
WAE303121 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 41 | L (mm): 95
WAE303122 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 46 | L (mm): 100
WAE303122-51 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 51 | L (mm): 100
WAE303123 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 56 | L (mm): 110
WAE303124-61 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 61 | L (mm): 110
WAE323120 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 66 | L (mm): 120
WAE323120-71 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 71 | L (mm): 120
WAE323121 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 76 | L (mm): 135
WAE303130 D (mm): 13 | Shank d (mm): 14 | Flute length (mm): 35 | L (mm): 85
WAE303140 D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 38 | L (mm): 90
WAE303150 D (mm): 15 | Shank d (mm): 16 | Flute length (mm): 40 | L (mm): 90
WAE303160-19 D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 19 | L (mm): 90
WAE303160-33 D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 33 | L (mm): 90
WAE303160 D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 45 | L (mm): 100
WAE303160-53 D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 53 | L (mm): 105
WAE303161 D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 56 | L (mm): 110
WAE303162 D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 66 | L (mm): 130
WAE303163 D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 76 | L (mm): 150
WAE323160 D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 86 | L (mm): 160
WAE323161 D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 96 | L (mm): 180
WAE323162 D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 106 | L (mm): 190
WAE323163 D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 116 | L (mm): 200
WAE303180 D (mm): 18 | Shank d (mm): 18 | Flute length (mm): 49 | L (mm): 100
WAE303200-23 D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 23 | L (mm): 90
WAE303200-39 D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 39 | L (mm): 90
WAE303200 D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 50 | L (mm): 100
WAE303201 D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 60 | L (mm): 110
WAE303202 D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 70 | L (mm): 130
WAE303203 D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 76 | L (mm): 150
WAE323200 D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 86 | L (mm): 160
WAE323201 D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 96 | L (mm): 180
WAE323202 D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 106 | L (mm): 190
WAE323203 D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 116 | L (mm): 200
WAE323204 D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 126 | L (mm): 220
WAE303250 D (mm): 25 | Shank d (mm): 25 | Flute length (mm): 50 | L (mm): 120
