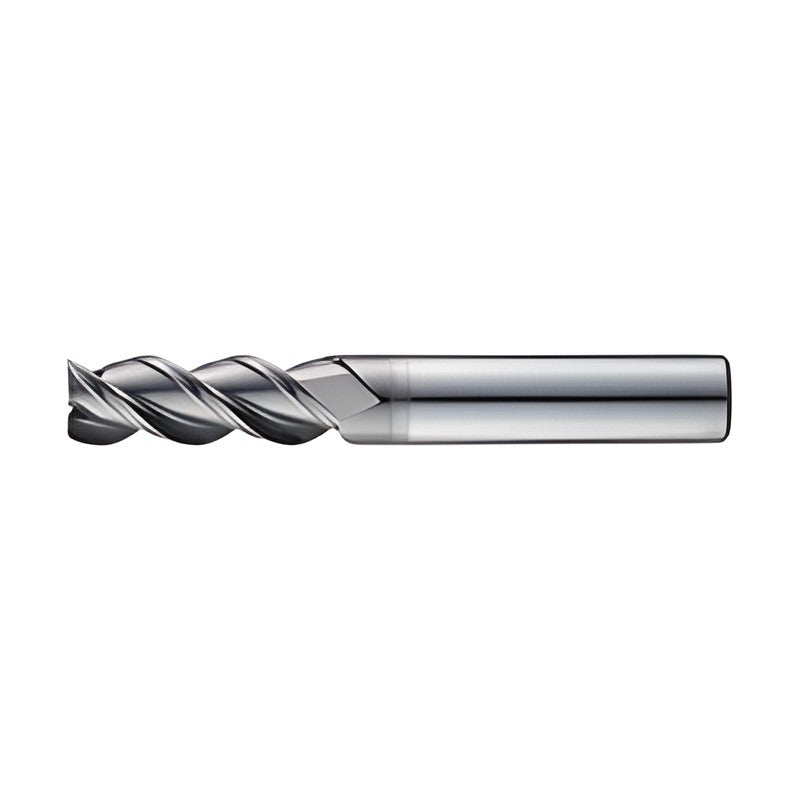

Korloy 3 Flutes Radius End Mill (DLC coated) WAR503

Korloy 3 Flutes Radius End Mill (DLC coated) WAR503

3 flutes radius end mill (DLC coated) from the A-Star end mill line for aluminum, aluminum alloys and non-ferrous materials.

Key features

  • Fine grain carbide
  • 45° helix angle

Specifications

Helix angle 45°
Shank tolerance h6
Coating DLC
WAR503040 R (mm): 0.5 | D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 14 | L (mm): 57
WAR503041 R (mm): 1 | D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 25 | L (mm): 62
WAR503060 R (mm): 0.5 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 16 | L (mm): 57
WAR503061 R (mm): 1 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 25 | L (mm): 62
WAR503080 R (mm): 0.5 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 22 | L (mm): 63
WAR503081 R (mm): 1 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 35 | L (mm): 80
WAR503100 R (mm): 0.5 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 28 | L (mm): 72
WAR503101 R (mm): 1 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 45 | L (mm): 100
WAR503120 R (mm): 0.5 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 32 | L (mm): 80
WAR503121 R (mm): 1 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 45 | L (mm): 100
WAR503160 R (mm): 0.5 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 45 | L (mm): 90
WAR503161 R (mm): 1 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 65 | L (mm): 125
WAR503200 R (mm): 0.5 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 50 | L (mm): 100
WAR503201 R (mm): 1 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 70 | L (mm): 130
End MillsKorloy
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy 3 Flutes Radius End Mill (DLC coated) WAR503

Brand Korloy·End Mills

Available part numbers (14)

WAR503040, WAR503041, WAR503060, WAR503061, WAR503080, WAR503081, WAR503100, WAR503101, WAR503120, WAR503121 + 4 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WAR503040R (mm): 0.5 | D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 14 | L (mm): 57
WAR503041R (mm): 1 | D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 25 | L (mm): 62
WAR503060R (mm): 0.5 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 16 | L (mm): 57
WAR503061R (mm): 1 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 25 | L (mm): 62
WAR503080R (mm): 0.5 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 22 | L (mm): 63
WAR503081R (mm): 1 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 35 | L (mm): 80
WAR503100R (mm): 0.5 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 28 | L (mm): 72
WAR503101R (mm): 1 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 45 | L (mm): 100
WAR503120R (mm): 0.5 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 32 | L (mm): 80
WAR503121R (mm): 1 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 45 | L (mm): 100
WAR503160R (mm): 0.5 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 45 | L (mm): 90
WAR503161R (mm): 1 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 65 | L (mm): 125
WAR503200R (mm): 0.5 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 50 | L (mm): 100
WAR503201R (mm): 1 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 70 | L (mm): 130
