• Korloy 3 Flutes Radius End Mill WAR303
1 1

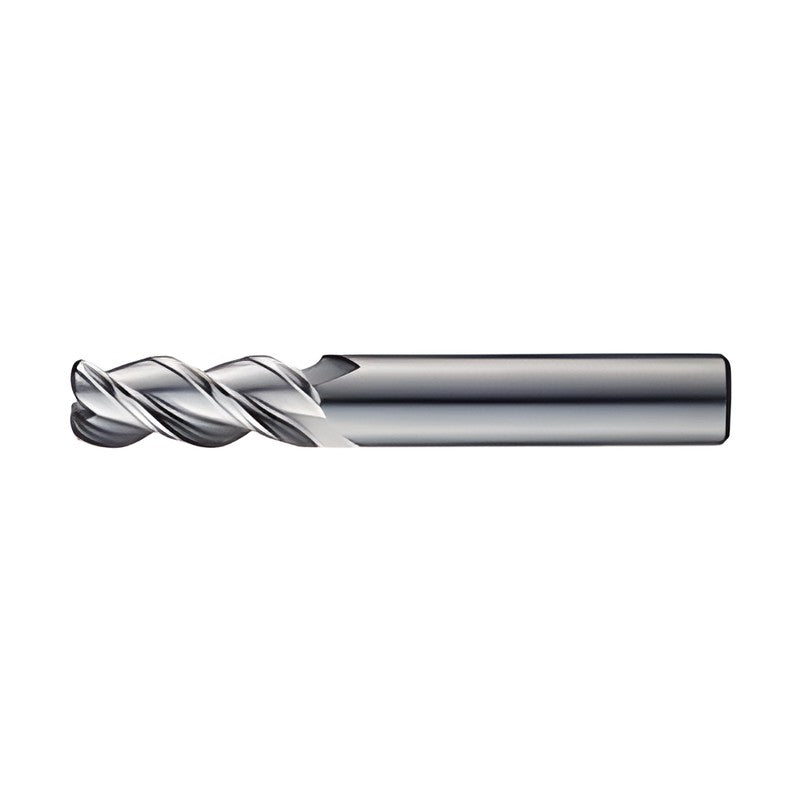

Korloy 3 Flutes Radius End Mill WAR303

Korloy 3 Flutes Radius End Mill WAR303

3 flutes radius end mill from the A-Star end mill line for aluminum, aluminum alloys and non-ferrous materials.

Key features

  • Fine grain carbide
  • 45° helix angle
  • Uncoated

Specifications

Helix angle 45°
Coating Uncoated
Shank tolerance h6
WAR3030605 R (mm): 0.5 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 50
WAR3030610 R (mm): 1 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 50
WAR3030615 R (mm): 1.5 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 50
WAR3030620 R (mm): 2 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 50
WAR3030805 R (mm): 0.5 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 60
WAR3030810 R (mm): 1 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 60
WAR3030815 R (mm): 1.5 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 60
WAR3030820 R (mm): 2 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 60
WAR3031005 R (mm): 0.5 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 70
WAR3031010 R (mm): 1 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 70
WAR3031015 R (mm): 1.5 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 70
WAR3031020 R (mm): 2 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 70
WAR3031030 R (mm): 3 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 70
WAR3031040 R (mm): 4 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 70
WAR3031210 R (mm): 1 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 75
WAR3031220 R (mm): 2 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 75
WAR3031230 R (mm): 3 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 75
WAR3031240 R (mm): 4 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 75
WAR3031410 R (mm): 1 | D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 35 | L (mm): 80
WAR3031420 R (mm): 2 | D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 35 | L (mm): 80
WAR3031430 R (mm): 3 | D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 35 | L (mm): 80
WAR3031440 R (mm): 4 | D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 35 | L (mm): 80
WAR3031450 R (mm): 5 | D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 35 | L (mm): 80
WAR3031610 R (mm): 1 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 40 | L (mm): 90
WAR3031620 R (mm): 2 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 40 | L (mm): 90
WAR3031630 R (mm): 3 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 40 | L (mm): 90
WAR3031640 R (mm): 4 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 40 | L (mm): 90
WAR3031650 R (mm): 5 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 40 | L (mm): 90
WAR3032010 R (mm): 1 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 45 | L (mm): 100
WAR3032020 R (mm): 2 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 45 | L (mm): 100
WAR3032030 R (mm): 3 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 45 | L (mm): 100
WAR3032040 R (mm): 4 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 45 | L (mm): 100
WAR3032050 R (mm): 5 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 45 | L (mm): 100
End MillsKorloy
33 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy 3 Flutes Radius End Mill WAR303

Brand Korloy·End Mills

Available part numbers (33)

WAR3030605, WAR3030610, WAR3030615, WAR3030620, WAR3030805, WAR3030810, WAR3030815, WAR3030820, WAR3031005, WAR3031010 + 23 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WAR3030605R (mm): 0.5 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 50
WAR3030610R (mm): 1 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 50
WAR3030615R (mm): 1.5 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 50
WAR3030620R (mm): 2 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 50
WAR3030805R (mm): 0.5 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 60
WAR3030810R (mm): 1 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 60
WAR3030815R (mm): 1.5 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 60
WAR3030820R (mm): 2 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 60
WAR3031005R (mm): 0.5 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 70
WAR3031010R (mm): 1 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 70
WAR3031015R (mm): 1.5 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 70
WAR3031020R (mm): 2 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 70
WAR3031030R (mm): 3 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 70
WAR3031040R (mm): 4 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 70
WAR3031210R (mm): 1 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 75
WAR3031220R (mm): 2 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 75
WAR3031230R (mm): 3 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 75
WAR3031240R (mm): 4 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 75
WAR3031410R (mm): 1 | D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 35 | L (mm): 80
WAR3031420R (mm): 2 | D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 35 | L (mm): 80
WAR3031430R (mm): 3 | D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 35 | L (mm): 80
WAR3031440R (mm): 4 | D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 35 | L (mm): 80
WAR3031450R (mm): 5 | D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 35 | L (mm): 80
WAR3031610R (mm): 1 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 40 | L (mm): 90
WAR3031620R (mm): 2 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 40 | L (mm): 90
WAR3031630R (mm): 3 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 40 | L (mm): 90
WAR3031640R (mm): 4 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 40 | L (mm): 90
WAR3031650R (mm): 5 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 40 | L (mm): 90
WAR3032010R (mm): 1 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 45 | L (mm): 100
WAR3032020R (mm): 2 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 45 | L (mm): 100
WAR3032030R (mm): 3 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 45 | L (mm): 100
WAR3032040R (mm): 4 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 45 | L (mm): 100
WAR3032050R (mm): 5 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 45 | L (mm): 100
