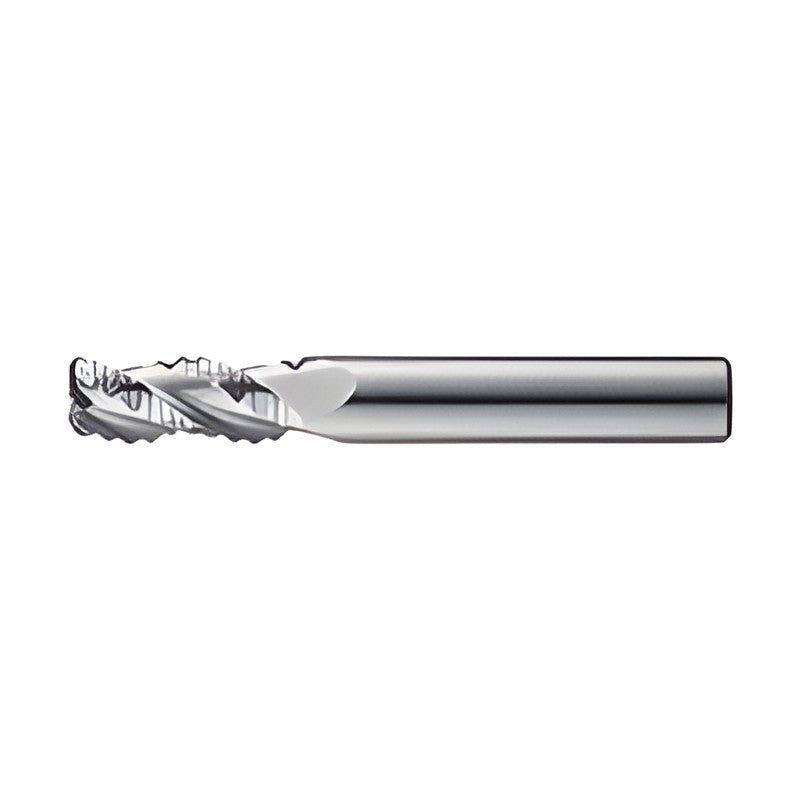

Korloy 3 Flutes Roughing End Mill WAF303

Korloy 3 Flutes Roughing End Mill WAF303

3 flutes roughing end mill from the A-Star end mill line for aluminum, aluminum alloys and non-ferrous materials.

Key features

  • Fine grain carbide
  • 38° helix angle
  • Uncoated

Specifications

Helix angle 38°
Coating Uncoated
Shank tolerance h6
WAF303040 D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 55
WAF303050 D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 55
WAF303060 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 16 | L (mm): 60
WAF303061 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 25 | L (mm): 80
WAF303070 D (mm): 7 | Shank d (mm): 8 | Flute length (mm): 16 | L (mm): 63
WAF303080 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 65
WAF303081 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 30 | L (mm): 90
WAF303090 D (mm): 9 | Shank d (mm): 10 | Flute length (mm): 19 | L (mm): 72
WAF303100 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 75
WAF303101 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 40 | L (mm): 100
WAF303120 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 80
WAF303121 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 50 | L (mm): 110
WAF303140 D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 35 | L (mm): 90
WAF303160 D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 42 | L (mm): 100
WAF303161 D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 52 | L (mm): 150
WAF303162 D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 65 | L (mm): 125
WAF303180 D (mm): 18 | Shank d (mm): 18 | Flute length (mm): 32 | L (mm): 92
WAF303200 D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 38 | L (mm): 104
WAF303201 D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 55 | L (mm): 160
End MillsKorloy
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy 3 Flutes Roughing End Mill WAF303

Brand Korloy·End Mills

Available part numbers (19)

WAF303040, WAF303050, WAF303060, WAF303061, WAF303070, WAF303080, WAF303081, WAF303090, WAF303100, WAF303101 + 9 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WAF303040D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 55
WAF303050D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 55
WAF303060D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 16 | L (mm): 60
WAF303061D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 25 | L (mm): 80
WAF303070D (mm): 7 | Shank d (mm): 8 | Flute length (mm): 16 | L (mm): 63
WAF303080D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 65
WAF303081D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 30 | L (mm): 90
WAF303090D (mm): 9 | Shank d (mm): 10 | Flute length (mm): 19 | L (mm): 72
WAF303100D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 75
WAF303101D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 40 | L (mm): 100
WAF303120D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 80
WAF303121D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 50 | L (mm): 110
WAF303140D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 35 | L (mm): 90
WAF303160D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 42 | L (mm): 100
WAF303161D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 52 | L (mm): 150
WAF303162D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 65 | L (mm): 125
WAF303180D (mm): 18 | Shank d (mm): 18 | Flute length (mm): 32 | L (mm): 92
WAF303200D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 38 | L (mm): 104
WAF303201D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 55 | L (mm): 160
