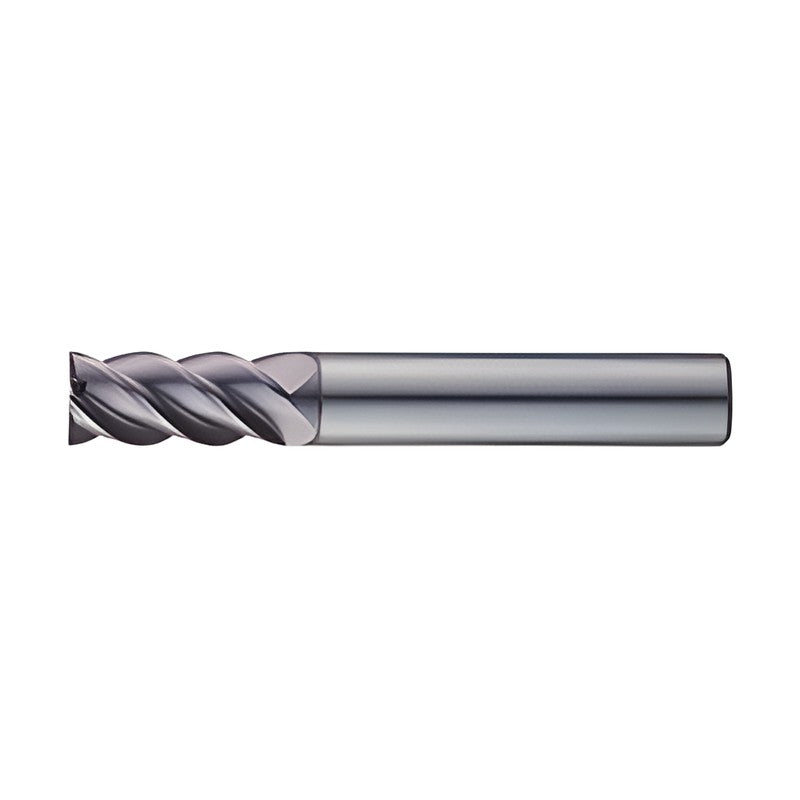

Korloy 4 Flutes 45 Degree Helix Flat End Mill TX304H

Korloy 4 Flutes 45 Degree Helix Flat End Mill TX304H

4 flutes 45 degree helix flat end mill from the G-Star end mill line for low hardness steel (HRC10~30) such as alloy, carbon, pre-hardened and hardened steel.

Key features

  • Fine grain carbide
  • 45° helix angle
  • AlTiN coating

Specifications

Helix angle 45°
Coating AlTiN
Shank tolerance h6
TX304H030 D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 50
TX304H030S3 D (mm): 3 | Shank d (mm): 3 | Flute length (mm): 8 | L (mm): 50
TX304H030S4 D (mm): 3 | Shank d (mm): 4 | Flute length (mm): 8 | L (mm): 50
TX304H040 D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 11 | L (mm): 50
TX304H040S4 D (mm): 4 | Shank d (mm): 4 | Flute length (mm): 11 | L (mm): 50
TX304H050 D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 50
TX304H060 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 50
TX304H080 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 19 | L (mm): 60
TX304H100 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 22 | L (mm): 70
TX304H120 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 26 | L (mm): 75
TX304H130 D (mm): 13 | Shank d (mm): 12 | Flute length (mm): 26 | L (mm): 80
TX304H140 D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 26 | L (mm): 80
TX304H160 D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 32 | L (mm): 90
TX304H180 D (mm): 18 | Shank d (mm): 18 | Flute length (mm): 32 | L (mm): 100
TX304H200 D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 38 | L (mm): 100
End MillsKorloy
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy 4 Flutes 45 Degree Helix Flat End Mill TX304H

Brand Korloy·End Mills

Available part numbers (15)

TX304H030, TX304H030S3, TX304H030S4, TX304H040, TX304H040S4, TX304H050, TX304H060, TX304H080, TX304H100, TX304H120 + 5 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TX304H030D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 50
TX304H030S3D (mm): 3 | Shank d (mm): 3 | Flute length (mm): 8 | L (mm): 50
TX304H030S4D (mm): 3 | Shank d (mm): 4 | Flute length (mm): 8 | L (mm): 50
TX304H040D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 11 | L (mm): 50
TX304H040S4D (mm): 4 | Shank d (mm): 4 | Flute length (mm): 11 | L (mm): 50
TX304H050D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 50
TX304H060D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 50
TX304H080D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 19 | L (mm): 60
TX304H100D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 22 | L (mm): 70
TX304H120D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 26 | L (mm): 75
TX304H130D (mm): 13 | Shank d (mm): 12 | Flute length (mm): 26 | L (mm): 80
TX304H140D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 26 | L (mm): 80
TX304H160D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 32 | L (mm): 90
TX304H180D (mm): 18 | Shank d (mm): 18 | Flute length (mm): 32 | L (mm): 100
TX304H200D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 38 | L (mm): 100
