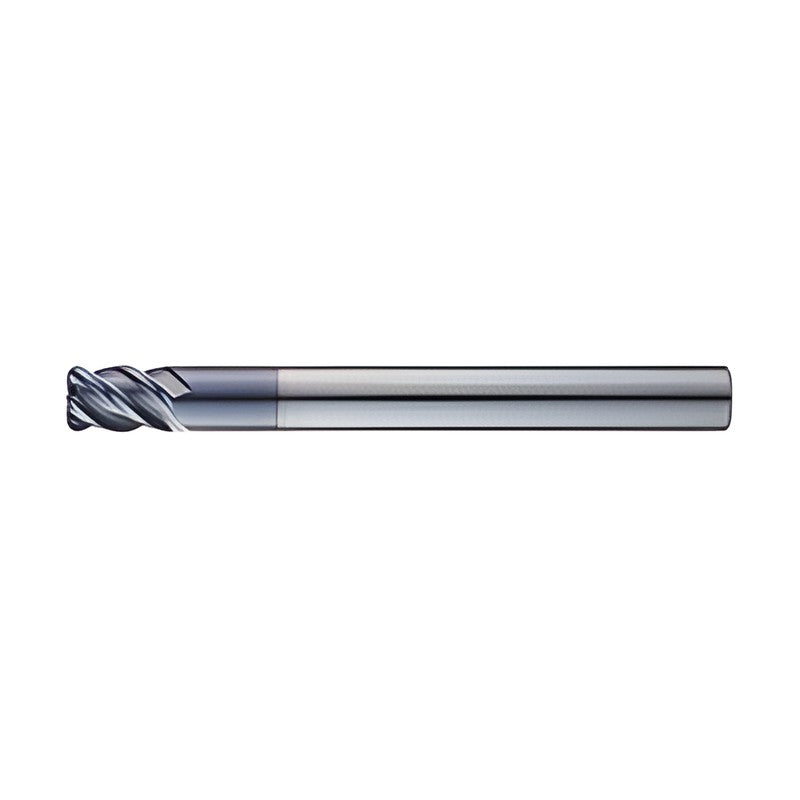

Korloy 4 Flutes 45 Degree Helix Radius End Mill ZR324H

Korloy 4 Flutes 45 Degree Helix Radius End Mill ZR324H

4 flutes 45 degree helix radius end mill from the G-Star end mill line for low hardness steel (HRC10~30) such as alloy, carbon, pre-hardened and hardened steel.

Key features

  • Fine grain carbide
  • 45° helix angle
  • AlTiN coating

Specifications

Helix angle 45°
Coating AlTiN
Shank tolerance h6
ZR324H0605 R (mm): 0.5 | D (mm): 6 | Shank d (mm): 6 | l1 (mm): 9 | l2 (mm): 20 | L (mm): 90
ZR324H0610 R (mm): 1 | D (mm): 6 | Shank d (mm): 6 | l1 (mm): 9 | l2 (mm): 20 | L (mm): 90
ZR324H0805 R (mm): 0.5 | D (mm): 8 | Shank d (mm): 8 | l1 (mm): 12 | l2 (mm): 25 | L (mm): 100
ZR324H0810 R (mm): 1 | D (mm): 8 | Shank d (mm): 8 | l1 (mm): 12 | l2 (mm): 25 | L (mm): 100
ZR324H1005 R (mm): 0.5 | D (mm): 10 | Shank d (mm): 10 | l1 (mm): 15 | l2 (mm): 32 | L (mm): 100
ZR324H1010 R (mm): 1 | D (mm): 10 | Shank d (mm): 10 | l1 (mm): 15 | l2 (mm): 32 | L (mm): 100
ZR324H1015 R (mm): 1.5 | D (mm): 10 | Shank d (mm): 10 | l1 (mm): 15 | l2 (mm): 32 | L (mm): 100
ZR324H1020 R (mm): 2 | D (mm): 10 | Shank d (mm): 10 | l1 (mm): 15 | l2 (mm): 32 | L (mm): 100
ZR324H1205 R (mm): 0.5 | D (mm): 12 | Shank d (mm): 12 | l1 (mm): 18 | l2 (mm): 38 | L (mm): 110
ZR324H1210 R (mm): 1 | D (mm): 12 | Shank d (mm): 12 | l1 (mm): 18 | l2 (mm): 38 | L (mm): 110
ZR324H1215 R (mm): 1.5 | D (mm): 12 | Shank d (mm): 12 | l1 (mm): 18 | l2 (mm): 38 | L (mm): 110
ZR324H1220 R (mm): 2 | D (mm): 12 | Shank d (mm): 12 | l1 (mm): 18 | l2 (mm): 38 | L (mm): 110
End MillsKorloy
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy 4 Flutes 45 Degree Helix Radius End Mill ZR324H

Brand Korloy·End Mills

Available part numbers (12)

ZR324H0605, ZR324H0610, ZR324H0805, ZR324H0810, ZR324H1005, ZR324H1010, ZR324H1015, ZR324H1020, ZR324H1205, ZR324H1210 + 2 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZR324H0605R (mm): 0.5 | D (mm): 6 | Shank d (mm): 6 | l1 (mm): 9 | l2 (mm): 20 | L (mm): 90
ZR324H0610R (mm): 1 | D (mm): 6 | Shank d (mm): 6 | l1 (mm): 9 | l2 (mm): 20 | L (mm): 90
ZR324H0805R (mm): 0.5 | D (mm): 8 | Shank d (mm): 8 | l1 (mm): 12 | l2 (mm): 25 | L (mm): 100
ZR324H0810R (mm): 1 | D (mm): 8 | Shank d (mm): 8 | l1 (mm): 12 | l2 (mm): 25 | L (mm): 100
ZR324H1005R (mm): 0.5 | D (mm): 10 | Shank d (mm): 10 | l1 (mm): 15 | l2 (mm): 32 | L (mm): 100
ZR324H1010R (mm): 1 | D (mm): 10 | Shank d (mm): 10 | l1 (mm): 15 | l2 (mm): 32 | L (mm): 100
ZR324H1015R (mm): 1.5 | D (mm): 10 | Shank d (mm): 10 | l1 (mm): 15 | l2 (mm): 32 | L (mm): 100
ZR324H1020R (mm): 2 | D (mm): 10 | Shank d (mm): 10 | l1 (mm): 15 | l2 (mm): 32 | L (mm): 100
ZR324H1205R (mm): 0.5 | D (mm): 12 | Shank d (mm): 12 | l1 (mm): 18 | l2 (mm): 38 | L (mm): 110
ZR324H1210R (mm): 1 | D (mm): 12 | Shank d (mm): 12 | l1 (mm): 18 | l2 (mm): 38 | L (mm): 110
ZR324H1215R (mm): 1.5 | D (mm): 12 | Shank d (mm): 12 | l1 (mm): 18 | l2 (mm): 38 | L (mm): 110
ZR324H1220R (mm): 2 | D (mm): 12 | Shank d (mm): 12 | l1 (mm): 18 | l2 (mm): 38 | L (mm): 110
