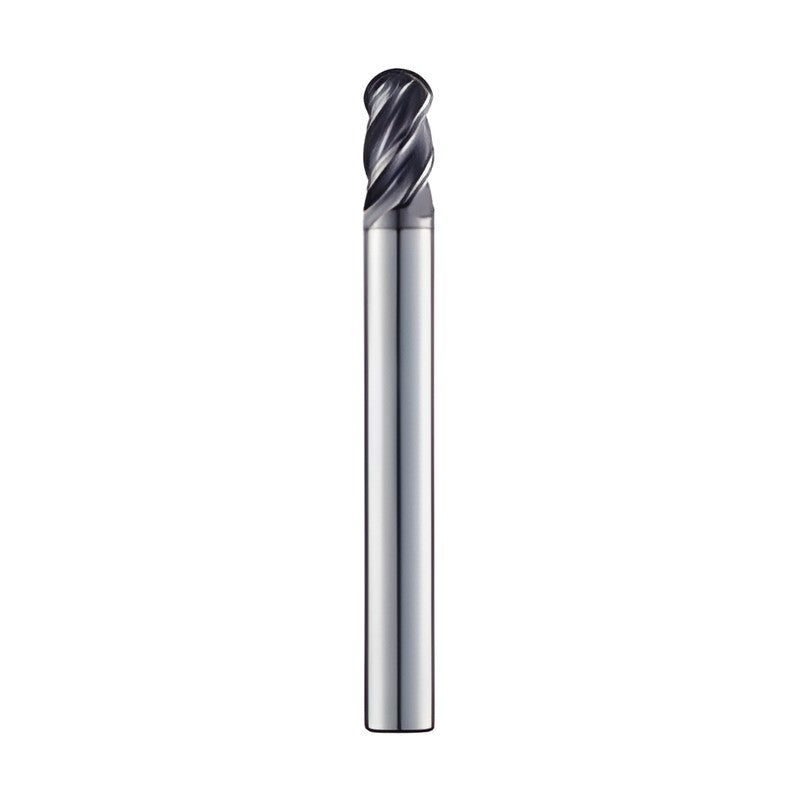

Korloy 4 Flutes Ball End Mill SB504

Korloy 4 Flutes Ball End Mill SB504

4 flutes ball end mill from the S-Star end mill line for stainless steel and difficult-to-cut materials such as Ti, Ni alloys and Inconel.

Key features

  • Solid carbide
  • 37° helix angle
  • AlCrN coating

Specifications

Helix angle 37°
Coating AlCrN
Shank tolerance h5
SB504030 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 60
SB504040 R (mm): 2 | D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 70
SB504050 R (mm): 2.5 | D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 12 | L (mm): 80
SB504060 R (mm): 3 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 12 | L (mm): 90
SB504080 R (mm): 4 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 16 | L (mm): 100
SB504100 R (mm): 5 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 20 | L (mm): 100
SB504120 R (mm): 6 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 25 | L (mm): 100
SB504160 R (mm): 8 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 30 | L (mm): 100
SB504200 R (mm): 10 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 38 | L (mm): 100
Ball End MillsKorloy
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy 4 Flutes Ball End Mill SB504

Brand Korloy·Ball End Mills

Available part numbers (9)

SB504030, SB504040, SB504050, SB504060, SB504080, SB504100, SB504120, SB504160, SB504200

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SB504030R (mm): 1.5 | D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 60
SB504040R (mm): 2 | D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 70
SB504050R (mm): 2.5 | D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 12 | L (mm): 80
SB504060R (mm): 3 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 12 | L (mm): 90
SB504080R (mm): 4 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 16 | L (mm): 100
SB504100R (mm): 5 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 20 | L (mm): 100
SB504120R (mm): 6 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 25 | L (mm): 100
SB504160R (mm): 8 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 30 | L (mm): 100
SB504200R (mm): 10 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 38 | L (mm): 100
