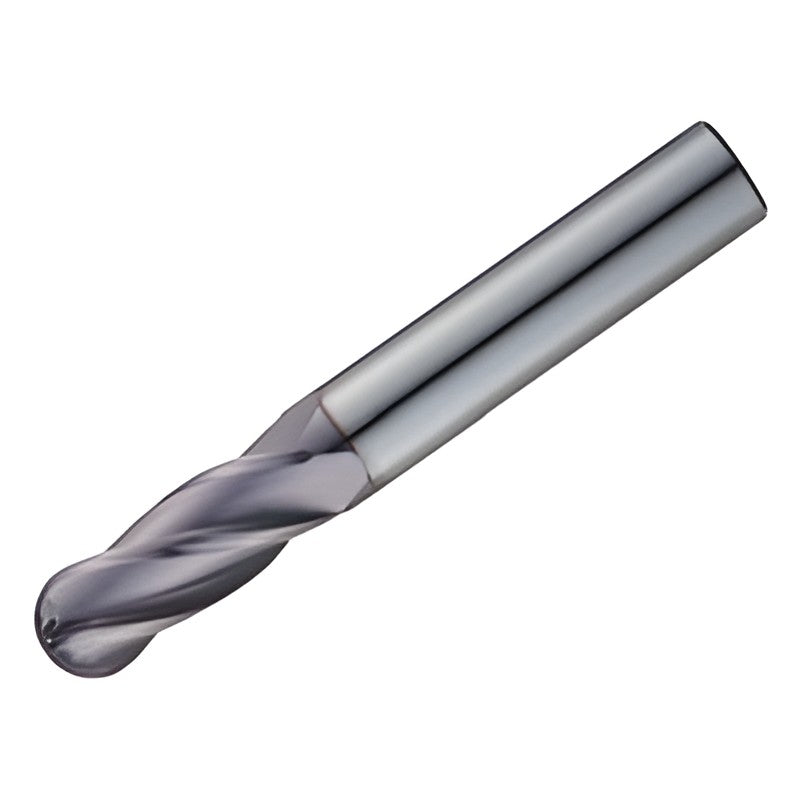

Korloy 4 Flutes Ball Nose End Mill TXB304

Korloy 4 Flutes Ball Nose End Mill TXB304

4 flutes ball nose end mill from the G-Star end mill line for low hardness steel (HRC10~30) such as alloy, carbon, pre-hardened and hardened steel.

Key features

  • Fine grain carbide
  • 30° helix angle
  • AlTiN coating

Specifications

Helix angle 30°
Coating AlTiN
Shank tolerance h6
TXB304010 R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | Flute length (mm): 2 | L (mm): 50
TXB304015 R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | Flute length (mm): 3 | L (mm): 50
TXB304020 R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | Flute length (mm): 4 | L (mm): 50
TXB304030 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 4 | Flute length (mm): 6 | L (mm): 50
TXB304040 R (mm): 2 | D (mm): 4 | Shank d (mm): 4 | Flute length (mm): 8 | L (mm): 50
TXB304050 R (mm): 2.5 | D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 50
TXB304060 R (mm): 3 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 12 | L (mm): 50
TXB304080 R (mm): 4 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 14 | L (mm): 60
TXB304100 R (mm): 5 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 18 | L (mm): 75
TXB304120 R (mm): 6 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 22 | L (mm): 75
TXB304140 R (mm): 7 | D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 32 | L (mm): 75
TXB304160 R (mm): 8 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 32 | L (mm): 100
TXB304180 R (mm): 9 | D (mm): 18 | Shank d (mm): 18 | Flute length (mm): 32 | L (mm): 100
TXB304200 R (mm): 10 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 38 | L (mm): 100
Ball End MillsKorloy
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy 4 Flutes Ball Nose End Mill TXB304

Brand Korloy·Ball End Mills

Available part numbers (14)

TXB304010, TXB304015, TXB304020, TXB304030, TXB304040, TXB304050, TXB304060, TXB304080, TXB304100, TXB304120 + 4 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TXB304010R (mm): 0.5 | D (mm): 1 | Shank d (mm): 4 | Flute length (mm): 2 | L (mm): 50
TXB304015R (mm): 0.75 | D (mm): 1.5 | Shank d (mm): 4 | Flute length (mm): 3 | L (mm): 50
TXB304020R (mm): 1 | D (mm): 2 | Shank d (mm): 4 | Flute length (mm): 4 | L (mm): 50
TXB304030R (mm): 1.5 | D (mm): 3 | Shank d (mm): 4 | Flute length (mm): 6 | L (mm): 50
TXB304040R (mm): 2 | D (mm): 4 | Shank d (mm): 4 | Flute length (mm): 8 | L (mm): 50
TXB304050R (mm): 2.5 | D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 50
TXB304060R (mm): 3 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 12 | L (mm): 50
TXB304080R (mm): 4 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 14 | L (mm): 60
TXB304100R (mm): 5 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 18 | L (mm): 75
TXB304120R (mm): 6 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 22 | L (mm): 75
TXB304140R (mm): 7 | D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 32 | L (mm): 75
TXB304160R (mm): 8 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 32 | L (mm): 100
TXB304180R (mm): 9 | D (mm): 18 | Shank d (mm): 18 | Flute length (mm): 32 | L (mm): 100
TXB304200R (mm): 10 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 38 | L (mm): 100
