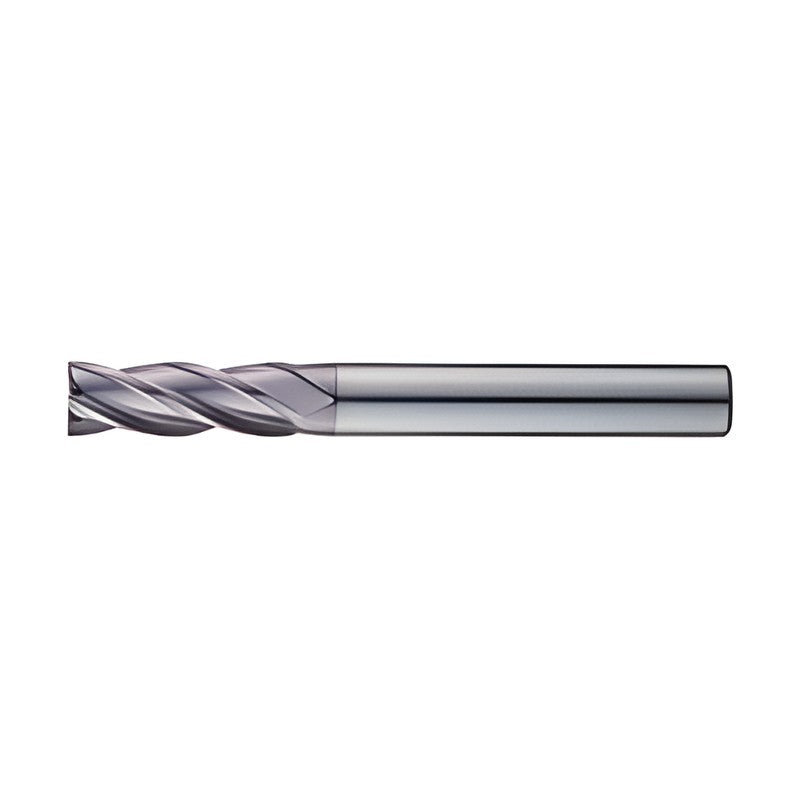

• Korloy 4 Flutes Extra Long Flat End Mill ZE324
1 1

Korloy 4 Flutes Extra Long Flat End Mill ZE324

Korloy 4 Flutes Extra Long Flat End Mill ZE324

4 flutes extra long flat end mill from the G-Star end mill line for low hardness steel (HRC10~30) such as alloy, carbon, pre-hardened and hardened steel.

Key features

  • Fine grain carbide
  • 30° helix angle
  • AlTiN coating

Specifications

Helix angle 30°
Coating AlTiN
Shank tolerance h6
ZE324030 D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 60
ZE324031 D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 70
ZE324030S D (mm): 3 | Shank d (mm): 3 | Flute length (mm): 20 | L (mm): 100
ZE324040 D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 60
ZE324041 D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 70
ZE324040S D (mm): 4 | Shank d (mm): 4 | Flute length (mm): 20 | L (mm): 100
ZE324050 D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 60
ZE324051 D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 80
ZE324052 D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 25 | L (mm): 100
ZE324060 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 80
ZE324061 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 30 | L (mm): 100
ZE324062 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 40 | L (mm): 150
ZE324080 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 30 | L (mm): 90
ZE324081 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 35 | L (mm): 100
ZE324082 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 40 | L (mm): 150
ZE324100 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 30 | L (mm): 90
ZE324101 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 35 | L (mm): 100
ZE324102 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 45 | L (mm): 150
ZE324103 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 55 | L (mm): 180
ZE324120 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 90
ZE324121 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 40 | L (mm): 110
ZE324122 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 50 | L (mm): 150
ZE324123 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 60 | L (mm): 200
ZE324140 D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 40 | L (mm): 120
ZE324141 D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 60 | L (mm): 150
ZE324160 D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 50 | L (mm): 140
ZE324161 D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 70 | L (mm): 160
ZE324162 D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 80 | L (mm): 200
ZE324180 D (mm): 18 | Shank d (mm): 18 | Flute length (mm): 50 | L (mm): 140
ZE324200 D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 60 | L (mm): 150
ZE324201 D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 100 | L (mm): 200
ZE324202 D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 130 | L (mm): 250
End MillsKorloy
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy 4 Flutes Extra Long Flat End Mill ZE324

Brand Korloy·End Mills

Available part numbers (32)

ZE324030, ZE324031, ZE324030S, ZE324040, ZE324041, ZE324040S, ZE324050, ZE324051, ZE324052, ZE324060 + 22 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZE324030D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 60
ZE324031D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 70
ZE324030SD (mm): 3 | Shank d (mm): 3 | Flute length (mm): 20 | L (mm): 100
ZE324040D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 60
ZE324041D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 70
ZE324040SD (mm): 4 | Shank d (mm): 4 | Flute length (mm): 20 | L (mm): 100
ZE324050D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 60
ZE324051D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 80
ZE324052D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 25 | L (mm): 100
ZE324060D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 80
ZE324061D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 30 | L (mm): 100
ZE324062D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 40 | L (mm): 150
ZE324080D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 30 | L (mm): 90
ZE324081D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 35 | L (mm): 100
ZE324082D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 40 | L (mm): 150
ZE324100D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 30 | L (mm): 90
ZE324101D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 35 | L (mm): 100
ZE324102D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 45 | L (mm): 150
ZE324103D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 55 | L (mm): 180
ZE324120D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 90
ZE324121D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 40 | L (mm): 110
ZE324122D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 50 | L (mm): 150
ZE324123D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 60 | L (mm): 200
ZE324140D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 40 | L (mm): 120
ZE324141D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 60 | L (mm): 150
ZE324160D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 50 | L (mm): 140
ZE324161D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 70 | L (mm): 160
ZE324162D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 80 | L (mm): 200
ZE324180D (mm): 18 | Shank d (mm): 18 | Flute length (mm): 50 | L (mm): 140
ZE324200D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 60 | L (mm): 150
ZE324201D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 100 | L (mm): 200
ZE324202D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 130 | L (mm): 250
