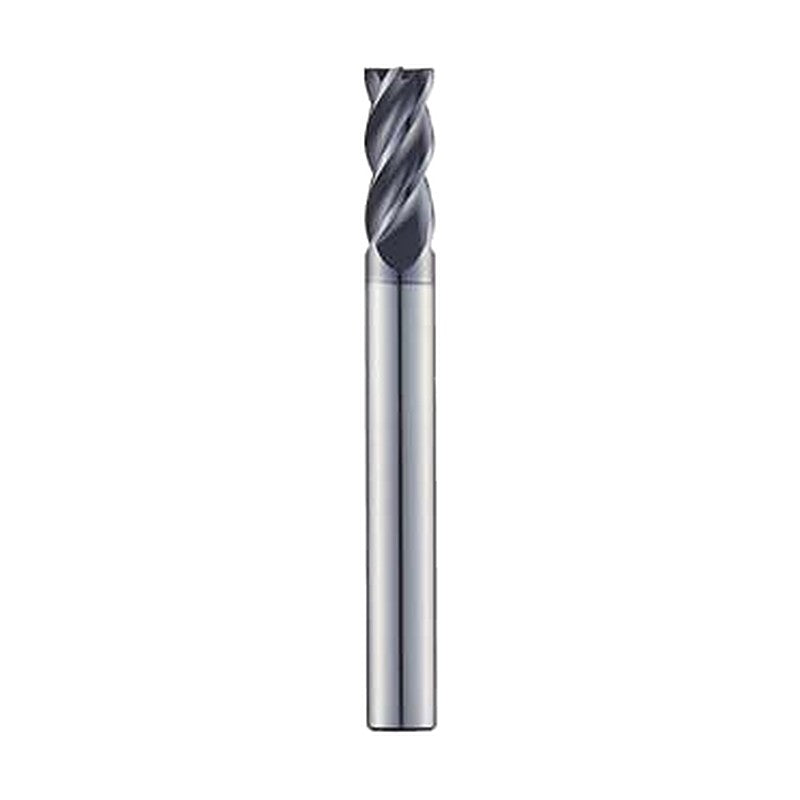

Korloy 4 Flutes Flat End Mill SE504

Korloy 4 Flutes Flat End Mill SE504

4 flutes flat end mill from the S-Star end mill line for stainless steel and difficult-to-cut materials such as Ti, Ni alloys and Inconel.

Key features

  • Solid carbide
  • 37° helix angle
  • AlCrN coating

Specifications

Helix angle 37°
Coating AlCrN
Shank tolerance h5
SE504010 D (mm): 1 | Shank d (mm): 6 | Flute length (mm): 2.5 | L (mm): 50
SE504012 D (mm): 1.2 | Shank d (mm): 6 | Flute length (mm): 3 | L (mm): 50
SE504015 D (mm): 1.5 | Shank d (mm): 6 | Flute length (mm): 4 | L (mm): 50
SE504020 D (mm): 2 | Shank d (mm): 6 | Flute length (mm): 6 | L (mm): 50
SE504025 D (mm): 2.5 | Shank d (mm): 6 | Flute length (mm): 7 | L (mm): 50
SE504030 D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 55
SE50403010 D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 60
SE504035 D (mm): 3.5 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 55
SE504040 D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 55
SE50404012 D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 12 | L (mm): 60
SE504045 D (mm): 4.5 | Shank d (mm): 6 | Flute length (mm): 12 | L (mm): 55
SE504050 D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 55
SE504055 D (mm): 5.5 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 60
SE504060 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 60
SE50406020 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 65
SE504065 D (mm): 6.5 | Shank d (mm): 8 | Flute length (mm): 15 | L (mm): 60
SE504070 D (mm): 7 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 80
SE504080 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 70
SE50408025 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 25 | L (mm): 70
SE50408030 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 30 | L (mm): 80
SE504085 D (mm): 8.5 | Shank d (mm): 10 | Flute length (mm): 20 | L (mm): 70
SE504090 D (mm): 9 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 80
SE504100 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 75
SE50410035 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 35 | L (mm): 85
SE504120 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 80
SE50412040 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 40 | L (mm): 90
SE504140 D (mm): 14 | Shank d (mm): 16 | Flute length (mm): 35 | L (mm): 90
SE504160 D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 42 | L (mm): 100
SE504180 D (mm): 18 | Shank d (mm): 16 | Flute length (mm): 45 | L (mm): 100
SE504200 D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 48 | L (mm): 100
End MillsKorloy
30 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy 4 Flutes Flat End Mill SE504

Brand Korloy·End Mills

Available part numbers (30)

SE504010, SE504012, SE504015, SE504020, SE504025, SE504030, SE50403010, SE504035, SE504040, SE50404012 + 20 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SE504010D (mm): 1 | Shank d (mm): 6 | Flute length (mm): 2.5 | L (mm): 50
SE504012D (mm): 1.2 | Shank d (mm): 6 | Flute length (mm): 3 | L (mm): 50
SE504015D (mm): 1.5 | Shank d (mm): 6 | Flute length (mm): 4 | L (mm): 50
SE504020D (mm): 2 | Shank d (mm): 6 | Flute length (mm): 6 | L (mm): 50
SE504025D (mm): 2.5 | Shank d (mm): 6 | Flute length (mm): 7 | L (mm): 50
SE504030D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 55
SE50403010D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 60
SE504035D (mm): 3.5 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 55
SE504040D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 55
SE50404012D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 12 | L (mm): 60
SE504045D (mm): 4.5 | Shank d (mm): 6 | Flute length (mm): 12 | L (mm): 55
SE504050D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 55
SE504055D (mm): 5.5 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 60
SE504060D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 60
SE50406020D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 20 | L (mm): 65
SE504065D (mm): 6.5 | Shank d (mm): 8 | Flute length (mm): 15 | L (mm): 60
SE504070D (mm): 7 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 80
SE504080D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 70
SE50408025D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 25 | L (mm): 70
SE50408030D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 30 | L (mm): 80
SE504085D (mm): 8.5 | Shank d (mm): 10 | Flute length (mm): 20 | L (mm): 70
SE504090D (mm): 9 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 80
SE504100D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 75
SE50410035D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 35 | L (mm): 85
SE504120D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 80
SE50412040D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 40 | L (mm): 90
SE504140D (mm): 14 | Shank d (mm): 16 | Flute length (mm): 35 | L (mm): 90
SE504160D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 42 | L (mm): 100
SE504180D (mm): 18 | Shank d (mm): 16 | Flute length (mm): 45 | L (mm): 100
SE504200D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 48 | L (mm): 100
