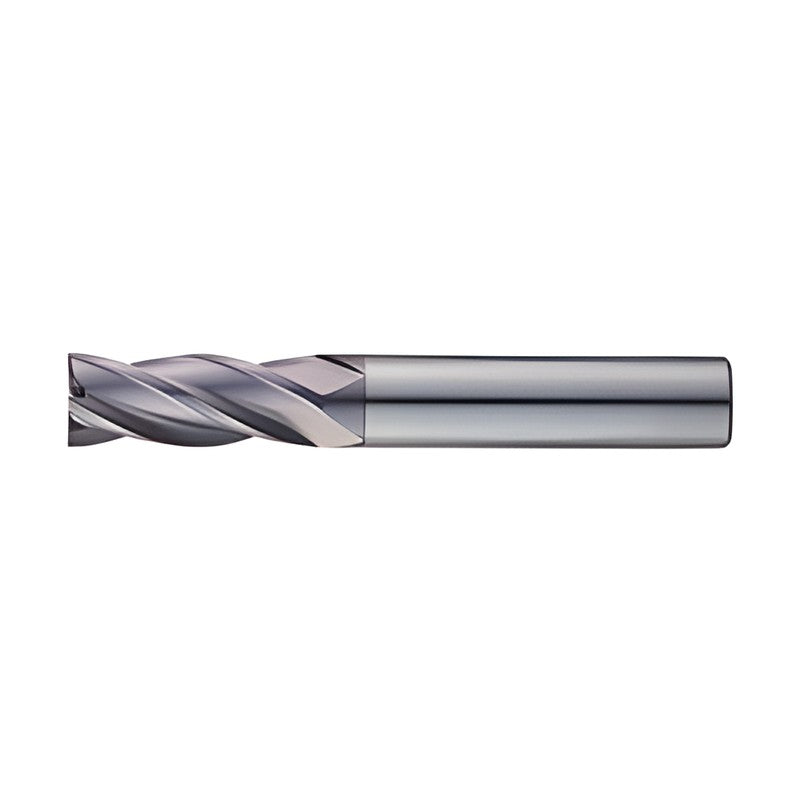

Korloy 4 Flutes Flat End Mill TX304

Korloy 4 Flutes Flat End Mill TX304

4 flutes flat end mill from the G-Star end mill line for low hardness steel (HRC10~30) such as alloy, carbon, pre-hardened and hardened steel.

Key features

  • Fine grain carbide
  • 30° helix angle
  • AlTiN coating

Specifications

Helix angle 30°
Coating AlTiN
Shank tolerance h6
TX304010 D (mm): 1 | Shank d (mm): 4 | Flute length (mm): 3 | L (mm): 50
TX304015 D (mm): 1.5 | Shank d (mm): 4 | Flute length (mm): 4 | L (mm): 50
TX304020 D (mm): 2 | Shank d (mm): 4 | Flute length (mm): 6 | L (mm): 50
TX304025 D (mm): 2.5 | Shank d (mm): 4 | Flute length (mm): 8 | L (mm): 50
TX304030 D (mm): 3 | Shank d (mm): 4 | Flute length (mm): 9 | L (mm): 50
TX304040 D (mm): 4 | Shank d (mm): 4 | Flute length (mm): 11 | L (mm): 50
TX304050 D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 50
TX304060 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 16 | L (mm): 50
TX304070 D (mm): 7 | Shank d (mm): 8 | Flute length (mm): 16 | L (mm): 60
TX304080 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 19 | L (mm): 60
TX304090 D (mm): 9 | Shank d (mm): 10 | Flute length (mm): 19 | L (mm): 60
TX304100 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 75
TX304120 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 75
TX304140 D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 32 | L (mm): 75
TX304160 D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 32 | L (mm): 100
TX304180 D (mm): 18 | Shank d (mm): 18 | Flute length (mm): 32 | L (mm): 100
TX304200 D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 38 | L (mm): 100
End MillsKorloy
17 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy 4 Flutes Flat End Mill TX304

Brand Korloy·End Mills

Available part numbers (17)

TX304010, TX304015, TX304020, TX304025, TX304030, TX304040, TX304050, TX304060, TX304070, TX304080 + 7 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TX304010D (mm): 1 | Shank d (mm): 4 | Flute length (mm): 3 | L (mm): 50
TX304015D (mm): 1.5 | Shank d (mm): 4 | Flute length (mm): 4 | L (mm): 50
TX304020D (mm): 2 | Shank d (mm): 4 | Flute length (mm): 6 | L (mm): 50
TX304025D (mm): 2.5 | Shank d (mm): 4 | Flute length (mm): 8 | L (mm): 50
TX304030D (mm): 3 | Shank d (mm): 4 | Flute length (mm): 9 | L (mm): 50
TX304040D (mm): 4 | Shank d (mm): 4 | Flute length (mm): 11 | L (mm): 50
TX304050D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 50
TX304060D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 16 | L (mm): 50
TX304070D (mm): 7 | Shank d (mm): 8 | Flute length (mm): 16 | L (mm): 60
TX304080D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 19 | L (mm): 60
TX304090D (mm): 9 | Shank d (mm): 10 | Flute length (mm): 19 | L (mm): 60
TX304100D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 75
TX304120D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 75
TX304140D (mm): 14 | Shank d (mm): 14 | Flute length (mm): 32 | L (mm): 75
TX304160D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 32 | L (mm): 100
TX304180D (mm): 18 | Shank d (mm): 18 | Flute length (mm): 32 | L (mm): 100
TX304200D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 38 | L (mm): 100
