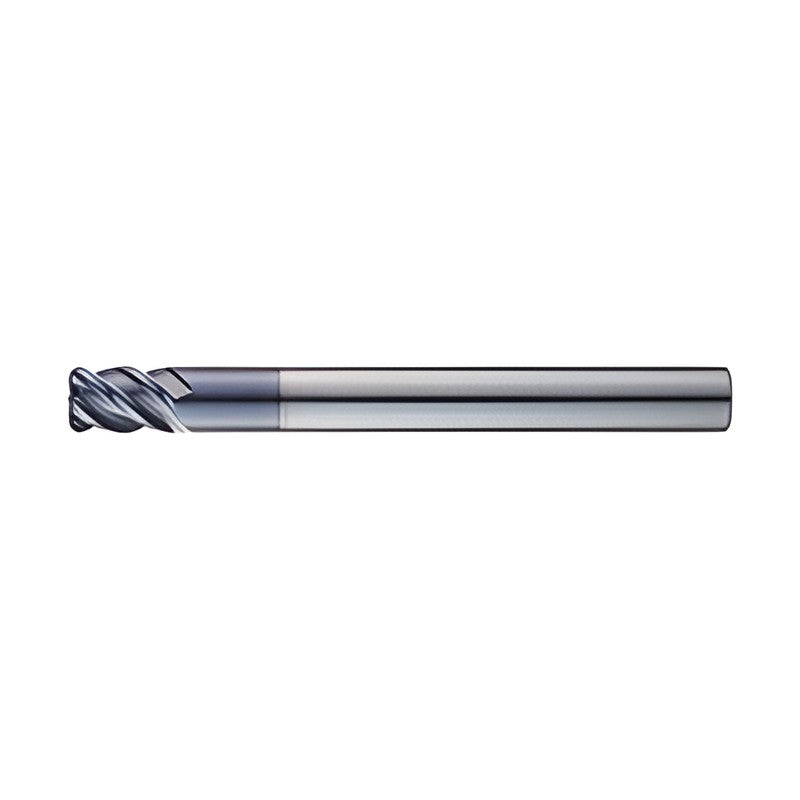

Korloy 4 Flutes Long Shank Radius End Mill ZR324

Korloy 4 Flutes Long Shank Radius End Mill ZR324

4 flutes long shank radius end mill from the G-Star end mill line for low hardness steel (HRC10~30) such as alloy, carbon, pre-hardened and hardened steel.

Key features

  • Fine grain carbide
  • 30° helix angle
  • AlTiN coating

Specifications

Helix angle 30°
Coating AlTiN
Shank tolerance h6
ZR3240302S4 R (mm): 0.2 | D (mm): 3 | Shank d (mm): 4 | Flute length (mm): 8 | L (mm): 60
ZR3240302 R (mm): 0.2 | D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 60
ZR3240303 R (mm): 0.3 | D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 60
ZR3240305S4 R (mm): 0.5 | D (mm): 3 | Shank d (mm): 4 | Flute length (mm): 8 | L (mm): 60
ZR3240305 R (mm): 0.5 | D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 60
ZR3240402S4 R (mm): 0.2 | D (mm): 4 | Shank d (mm): 4 | Flute length (mm): 11 | L (mm): 70
ZR3240402 R (mm): 0.2 | D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 11 | L (mm): 70
ZR3240403 R (mm): 0.3 | D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 11 | L (mm): 70
ZR3240405S4 R (mm): 0.5 | D (mm): 4 | Shank d (mm): 4 | Flute length (mm): 11 | L (mm): 70
ZR3240405 R (mm): 0.5 | D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 11 | L (mm): 70
ZR3240410S4 R (mm): 1 | D (mm): 4 | Shank d (mm): 4 | Flute length (mm): 11 | L (mm): 70
ZR3240410 R (mm): 1 | D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 11 | L (mm): 70
ZR3240502 R (mm): 0.2 | D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 80
ZR3240503 R (mm): 0.3 | D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 80
ZR3240505 R (mm): 0.5 | D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 80
ZR3240510 R (mm): 1 | D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 80
ZR3240602 R (mm): 0.2 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 90
ZR3240603 R (mm): 0.3 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 90
ZR3240605 R (mm): 0.5 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 90
ZR3240610 R (mm): 1 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 90
ZR3240803 R (mm): 0.3 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 19 | L (mm): 100
ZR3240805 R (mm): 0.5 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 19 | L (mm): 100
ZR3240810 R (mm): 1 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 19 | L (mm): 100
ZR3240815 R (mm): 1.5 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 19 | L (mm): 100
ZR3240820 R (mm): 2 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 19 | L (mm): 100
ZR3241003 R (mm): 0.3 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 22 | L (mm): 100
ZR3241005 R (mm): 0.5 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 22 | L (mm): 100
ZR3241010 R (mm): 1 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 22 | L (mm): 100
ZR3241015 R (mm): 1.5 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 22 | L (mm): 100
ZR3241020 R (mm): 2 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 22 | L (mm): 100
ZR3241025 R (mm): 2.5 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 22 | L (mm): 100
ZR3241205 R (mm): 0.5 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 26 | L (mm): 110
ZR3241210 R (mm): 1 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 26 | L (mm): 110
ZR3241215 R (mm): 1.5 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 26 | L (mm): 110
ZR3241220 R (mm): 2 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 26 | L (mm): 110
ZR3241225 R (mm): 2.5 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 26 | L (mm): 110
ZR3241230 R (mm): 3 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 26 | L (mm): 110
End MillsKorloy
37 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy 4 Flutes Long Shank Radius End Mill ZR324

Brand Korloy·End Mills

Available part numbers (37)

ZR3240302S4, ZR3240302, ZR3240303, ZR3240305S4, ZR3240305, ZR3240402S4, ZR3240402, ZR3240403, ZR3240405S4, ZR3240405 + 27 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZR3240302S4R (mm): 0.2 | D (mm): 3 | Shank d (mm): 4 | Flute length (mm): 8 | L (mm): 60
ZR3240302R (mm): 0.2 | D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 60
ZR3240303R (mm): 0.3 | D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 60
ZR3240305S4R (mm): 0.5 | D (mm): 3 | Shank d (mm): 4 | Flute length (mm): 8 | L (mm): 60
ZR3240305R (mm): 0.5 | D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 60
ZR3240402S4R (mm): 0.2 | D (mm): 4 | Shank d (mm): 4 | Flute length (mm): 11 | L (mm): 70
ZR3240402R (mm): 0.2 | D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 11 | L (mm): 70
ZR3240403R (mm): 0.3 | D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 11 | L (mm): 70
ZR3240405S4R (mm): 0.5 | D (mm): 4 | Shank d (mm): 4 | Flute length (mm): 11 | L (mm): 70
ZR3240405R (mm): 0.5 | D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 11 | L (mm): 70
ZR3240410S4R (mm): 1 | D (mm): 4 | Shank d (mm): 4 | Flute length (mm): 11 | L (mm): 70
ZR3240410R (mm): 1 | D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 11 | L (mm): 70
ZR3240502R (mm): 0.2 | D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 80
ZR3240503R (mm): 0.3 | D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 80
ZR3240505R (mm): 0.5 | D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 80
ZR3240510R (mm): 1 | D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 80
ZR3240602R (mm): 0.2 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 90
ZR3240603R (mm): 0.3 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 90
ZR3240605R (mm): 0.5 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 90
ZR3240610R (mm): 1 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 13 | L (mm): 90
ZR3240803R (mm): 0.3 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 19 | L (mm): 100
ZR3240805R (mm): 0.5 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 19 | L (mm): 100
ZR3240810R (mm): 1 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 19 | L (mm): 100
ZR3240815R (mm): 1.5 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 19 | L (mm): 100
ZR3240820R (mm): 2 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 19 | L (mm): 100
ZR3241003R (mm): 0.3 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 22 | L (mm): 100
ZR3241005R (mm): 0.5 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 22 | L (mm): 100
ZR3241010R (mm): 1 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 22 | L (mm): 100
ZR3241015R (mm): 1.5 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 22 | L (mm): 100
ZR3241020R (mm): 2 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 22 | L (mm): 100
ZR3241025R (mm): 2.5 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 22 | L (mm): 100
ZR3241205R (mm): 0.5 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 26 | L (mm): 110
ZR3241210R (mm): 1 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 26 | L (mm): 110
ZR3241215R (mm): 1.5 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 26 | L (mm): 110
ZR3241220R (mm): 2 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 26 | L (mm): 110
ZR3241225R (mm): 2.5 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 26 | L (mm): 110
ZR3241230R (mm): 3 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 26 | L (mm): 110
