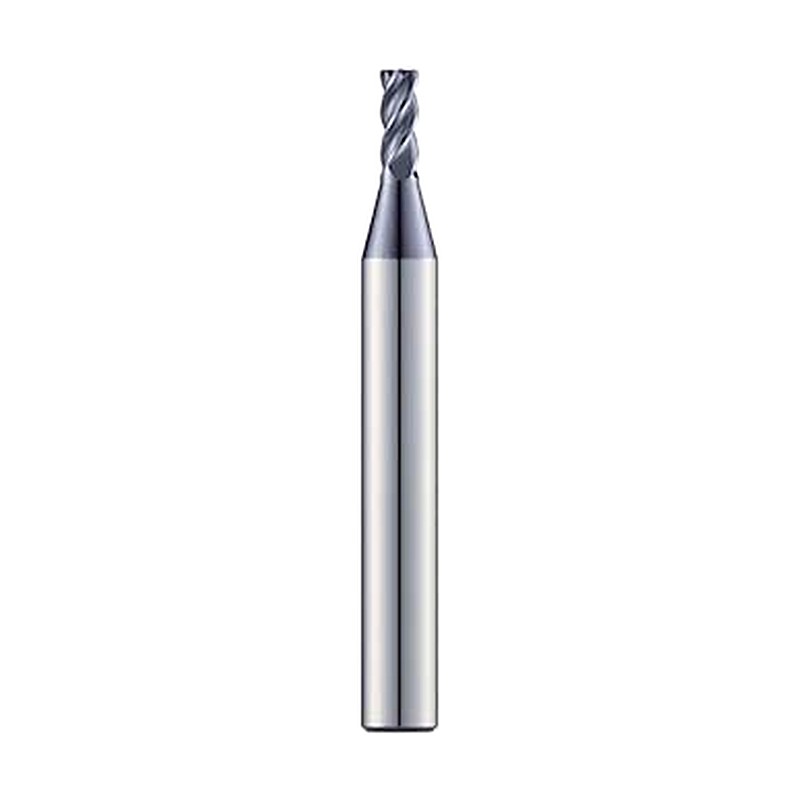

Korloy 4 Flutes Radius End Mill SR504

Korloy 4 Flutes Radius End Mill SR504

4 flutes radius end mill from the S-Star end mill line for stainless steel and difficult-to-cut materials such as Ti, Ni alloys and Inconel.

Key features

  • Solid carbide
  • 37° helix angle
  • AlCrN coating

Specifications

Helix angle 37°
Coating AlCrN
Shank tolerance h5
SR50401001 R (mm): 0.1 | D (mm): 1 | Shank d (mm): 6 | Flute length (mm): 2.5 | L (mm): 50
SR50401002 R (mm): 0.2 | D (mm): 1 | Shank d (mm): 6 | Flute length (mm): 2.5 | L (mm): 50
SR50401201 R (mm): 0.1 | D (mm): 1.2 | Shank d (mm): 6 | Flute length (mm): 3 | L (mm): 50
SR50401501 R (mm): 0.1 | D (mm): 1.5 | Shank d (mm): 6 | Flute length (mm): 4 | L (mm): 50
SR50401502 R (mm): 0.2 | D (mm): 1.5 | Shank d (mm): 6 | Flute length (mm): 4 | L (mm): 50
SR50402001 R (mm): 0.1 | D (mm): 2 | Shank d (mm): 6 | Flute length (mm): 6 | L (mm): 50
SR50402002 R (mm): 0.2 | D (mm): 2 | Shank d (mm): 6 | Flute length (mm): 6 | L (mm): 50
SR50402502 R (mm): 0.2 | D (mm): 2.5 | Shank d (mm): 6 | Flute length (mm): 7 | L (mm): 50
SR50403002 R (mm): 0.2 | D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 55
SR50403003 R (mm): 0.3 | D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 55
SR50403005 R (mm): 0.5 | D (mm): 3 | Shank d (mm): 6 | Flute length (mm): 8 | L (mm): 55
SR50404002 R (mm): 0.2 | D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 55
SR50404003 R (mm): 0.3 | D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 55
SR50404005 R (mm): 0.5 | D (mm): 4 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 55
SR50405002 R (mm): 0.2 | D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 55
SR50405003 R (mm): 0.3 | D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 55
SR50405005 R (mm): 0.5 | D (mm): 5 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 55
SR50406003 R (mm): 0.3 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 60
SR50406005 R (mm): 0.5 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 60
SR50406010 R (mm): 1 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 60
SR50407003 R (mm): 0.3 | D (mm): 7 | Shank d (mm): 8 | Flute length (mm): 15 | L (mm): 60
SR50408002 R (mm): 0.2 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 70
SR50408003 R (mm): 0.3 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 70
SR50408005 R (mm): 0.5 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 70
SR50408010 R (mm): 1 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 70
SR50410003 R (mm): 0.3 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 75
SR50410005 R (mm): 0.5 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 75
SR50410010 R (mm): 1 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 75
SR50410015 R (mm): 1.5 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 75
SR50410020 R (mm): 2 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 75
SR50410030 R (mm): 3 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 75
SR50412003 R (mm): 0.3 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 80
SR50412005 R (mm): 0.5 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 80
SR50412010 R (mm): 1 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 80
SR50412015 R (mm): 1.5 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 80
SR50412020 R (mm): 2 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 80
SR50412030 R (mm): 3 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 80
SR50412040 R (mm): 4 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 80
SR50414005 R (mm): 0.5 | D (mm): 14 | Shank d (mm): 16 | Flute length (mm): 35 | L (mm): 90
SR50414010 R (mm): 1 | D (mm): 14 | Shank d (mm): 16 | Flute length (mm): 35 | L (mm): 90
SR50416005 R (mm): 0.5 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 42 | L (mm): 100
SR50416010 R (mm): 1 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 42 | L (mm): 100
SR50418005 R (mm): 0.5 | D (mm): 18 | Shank d (mm): 16 | Flute length (mm): 45 | L (mm): 100
SR50420005 R (mm): 0.5 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 48 | L (mm): 100
SR50420010 R (mm): 1 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 48 | L (mm): 100
