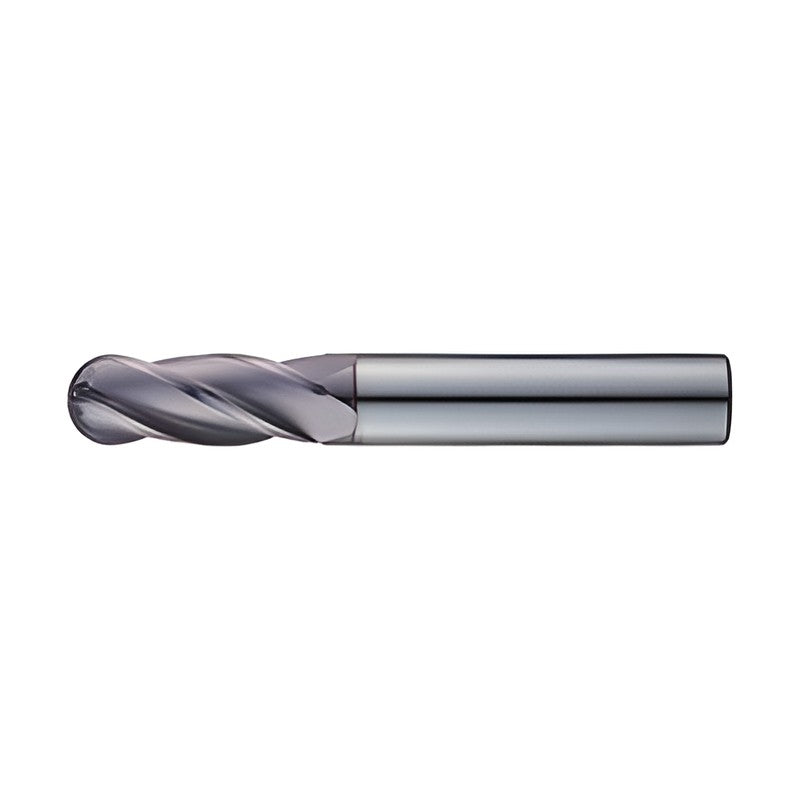

Korloy 4 Flutes Short Shank Ball Nose End Mill TXB204

Korloy 4 Flutes Short Shank Ball Nose End Mill TXB204

4 flutes short shank ball nose end mill from the G-Star end mill line for low hardness steel (HRC10~30) such as alloy, carbon, pre-hardened and hardened steel.

Key features

  • Fine grain carbide
  • 30° helix angle
  • AlTiN coating

Specifications

Helix angle 30°
Coating AlTiN
Shank tolerance h6
TXB204020 R (mm): 1 | D (mm): 2 | Shank d (mm): 3 | Flute length (mm): 7 | L (mm): 39
TXB204030 R (mm): 1.5 | D (mm): 3 | Shank d (mm): 3 | Flute length (mm): 10 | L (mm): 39
TXB204040 R (mm): 2 | D (mm): 4 | Shank d (mm): 4 | Flute length (mm): 14 | L (mm): 51
TXB204050 R (mm): 2.5 | D (mm): 5 | Shank d (mm): 5 | Flute length (mm): 16 | L (mm): 51
TXB204060 R (mm): 3 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 19 | L (mm): 64
TXB204080 R (mm): 4 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 21 | L (mm): 64
TXB204100 R (mm): 5 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 70
TXB204120 R (mm): 6 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 25 | L (mm): 76
TXB204160 R (mm): 8 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 32 | L (mm): 89
TXB204200 R (mm): 10 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 38 | L (mm): 100
Ball End MillsKorloy
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy 4 Flutes Short Shank Ball Nose End Mill TXB204

Brand Korloy·Ball End Mills

Available part numbers (10)

TXB204020, TXB204030, TXB204040, TXB204050, TXB204060, TXB204080, TXB204100, TXB204120, TXB204160, TXB204200

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TXB204020R (mm): 1 | D (mm): 2 | Shank d (mm): 3 | Flute length (mm): 7 | L (mm): 39
TXB204030R (mm): 1.5 | D (mm): 3 | Shank d (mm): 3 | Flute length (mm): 10 | L (mm): 39
TXB204040R (mm): 2 | D (mm): 4 | Shank d (mm): 4 | Flute length (mm): 14 | L (mm): 51
TXB204050R (mm): 2.5 | D (mm): 5 | Shank d (mm): 5 | Flute length (mm): 16 | L (mm): 51
TXB204060R (mm): 3 | D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 19 | L (mm): 64
TXB204080R (mm): 4 | D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 21 | L (mm): 64
TXB204100R (mm): 5 | D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 70
TXB204120R (mm): 6 | D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 25 | L (mm): 76
TXB204160R (mm): 8 | D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 32 | L (mm): 89
TXB204200R (mm): 10 | D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 38 | L (mm): 100
