• Korloy 6 Flutes Flat End Mill SE506
1 1

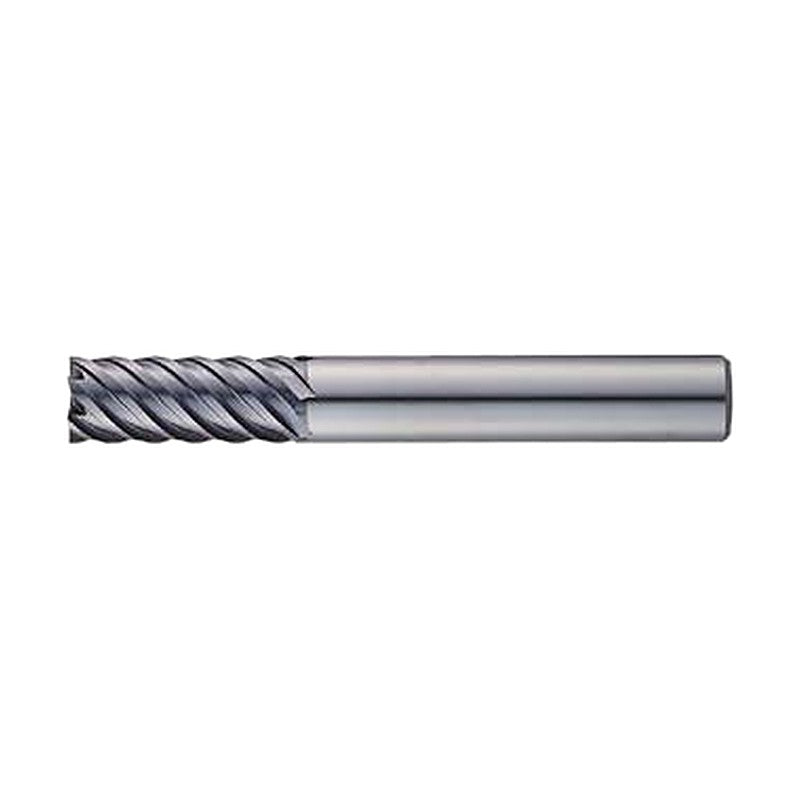

Korloy 6 Flutes Flat End Mill SE506

Korloy 6 Flutes Flat End Mill SE506

6 flutes flat end mill from the S-Star end mill line for stainless steel and difficult-to-cut materials such as Ti, Ni alloys and Inconel.

Key features

  • Solid carbide
  • 45° helix angle
  • AlCrN coating

Specifications

Helix angle 45°
Coating AlCrN
Shank tolerance h5
SE506060 D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 60
SE506080 D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 70
SE506100 D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 75
SE506120 D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 80
SE506160 D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 42 | L (mm): 100
SE506200 D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 48 | L (mm): 100
End MillsKorloy
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy 6 Flutes Flat End Mill SE506

Brand Korloy·End Mills

Available part numbers (6)

SE506060, SE506080, SE506100, SE506120, SE506160, SE506200

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SE506060D (mm): 6 | Shank d (mm): 6 | Flute length (mm): 15 | L (mm): 60
SE506080D (mm): 8 | Shank d (mm): 8 | Flute length (mm): 20 | L (mm): 70
SE506100D (mm): 10 | Shank d (mm): 10 | Flute length (mm): 25 | L (mm): 75
SE506120D (mm): 12 | Shank d (mm): 12 | Flute length (mm): 30 | L (mm): 80
SE506160D (mm): 16 | Shank d (mm): 16 | Flute length (mm): 42 | L (mm): 100
SE506200D (mm): 20 | Shank d (mm): 20 | Flute length (mm): 48 | L (mm): 100
