• Korloy A+ Endmill Flat APFE2000/3000
1 1

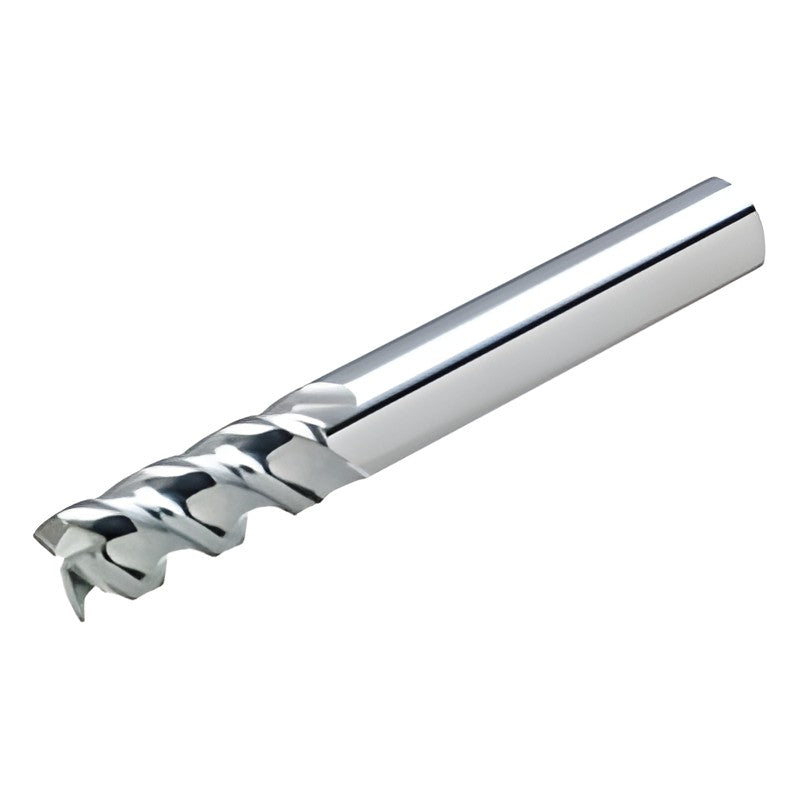

Korloy A+ Endmill Flat APFE2000/3000

Korloy A+ Endmill Flat APFE2000/3000

A+ Endmill for non-ferrous metals with exclusive U-shaped flute and double relief angle.

Key features

  • U-shaped buffed flute for chip evacuation and less built-up edge
  • Double relief angle for rigid cutting edge
  • Roughing and finishing: shouldering, slotting, ramping
APFE2025-050 Flutes: 2 | Dia. (mm): 2.5 | Length of cut (mm): 5.0
APFE2030-050 Flutes: 2 | Dia. (mm): 3.0 | Length of cut (mm): 5.0
APFE2040-050 Flutes: 2 | Dia. (mm): 4.0 | Length of cut (mm): 5.0
APFE2050-050 Flutes: 2 | Dia. (mm): 5.0 | Length of cut (mm): 5.0
APFE2060-050 Flutes: 2 | Dia. (mm): 6.0 | Length of cut (mm): 5.0
APFE2080-060 Flutes: 2 | Dia. (mm): 8.0 | Length of cut (mm): 6.0
APFE2100-075 Flutes: 2 | Dia. (mm): 10.0 | Length of cut (mm): 7.5
APFE2120-075 Flutes: 2 | Dia. (mm): 12.0 | Length of cut (mm): 7.5
APFE2160-100 Flutes: 2 | Dia. (mm): 16.0 | Length of cut (mm): 10.0
APFE2200-100 Flutes: 2 | Dia. (mm): 20.0 | Length of cut (mm): 10.0
APFE3025-050 Flutes: 3 | Dia. (mm): 2.5 | Length of cut (mm): 5.0
APFE3030-050 Flutes: 3 | Dia. (mm): 3.0 | Length of cut (mm): 5.0
APFE3040-050 Flutes: 3 | Dia. (mm): 4.0 | Length of cut (mm): 5.0
APFE3050-050 Flutes: 3 | Dia. (mm): 5.0 | Length of cut (mm): 5.0
APFE3060-050 Flutes: 3 | Dia. (mm): 6.0 | Length of cut (mm): 5.0
APFE3080-060 Flutes: 3 | Dia. (mm): 8.0 | Length of cut (mm): 6.0
APFE3100-075 Flutes: 3 | Dia. (mm): 10.0 | Length of cut (mm): 7.5
APFE3120-075 Flutes: 3 | Dia. (mm): 12.0 | Length of cut (mm): 7.5
APFE3160-100 Flutes: 3 | Dia. (mm): 16.0 | Length of cut (mm): 10.0
APFE3200-100 Flutes: 3 | Dia. (mm): 20.0 | Length of cut (mm): 10.0
End MillsKorloy
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy A+ Endmill Flat APFE2000/3000

Brand Korloy·End Mills

Available part numbers (20)

APFE2025-050, APFE2030-050, APFE2040-050, APFE2050-050, APFE2060-050, APFE2080-060, APFE2100-075, APFE2120-075, APFE2160-100, APFE2200-100 + 10 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
APFE2025-050Flutes: 2 | Dia. (mm): 2.5 | Length of cut (mm): 5.0
APFE2030-050Flutes: 2 | Dia. (mm): 3.0 | Length of cut (mm): 5.0
APFE2040-050Flutes: 2 | Dia. (mm): 4.0 | Length of cut (mm): 5.0
APFE2050-050Flutes: 2 | Dia. (mm): 5.0 | Length of cut (mm): 5.0
APFE2060-050Flutes: 2 | Dia. (mm): 6.0 | Length of cut (mm): 5.0
APFE2080-060Flutes: 2 | Dia. (mm): 8.0 | Length of cut (mm): 6.0
APFE2100-075Flutes: 2 | Dia. (mm): 10.0 | Length of cut (mm): 7.5
APFE2120-075Flutes: 2 | Dia. (mm): 12.0 | Length of cut (mm): 7.5
APFE2160-100Flutes: 2 | Dia. (mm): 16.0 | Length of cut (mm): 10.0
APFE2200-100Flutes: 2 | Dia. (mm): 20.0 | Length of cut (mm): 10.0
APFE3025-050Flutes: 3 | Dia. (mm): 2.5 | Length of cut (mm): 5.0
APFE3030-050Flutes: 3 | Dia. (mm): 3.0 | Length of cut (mm): 5.0
APFE3040-050Flutes: 3 | Dia. (mm): 4.0 | Length of cut (mm): 5.0
APFE3050-050Flutes: 3 | Dia. (mm): 5.0 | Length of cut (mm): 5.0
APFE3060-050Flutes: 3 | Dia. (mm): 6.0 | Length of cut (mm): 5.0
APFE3080-060Flutes: 3 | Dia. (mm): 8.0 | Length of cut (mm): 6.0
APFE3100-075Flutes: 3 | Dia. (mm): 10.0 | Length of cut (mm): 7.5
APFE3120-075Flutes: 3 | Dia. (mm): 12.0 | Length of cut (mm): 7.5
APFE3160-100Flutes: 3 | Dia. (mm): 16.0 | Length of cut (mm): 10.0
APFE3200-100Flutes: 3 | Dia. (mm): 20.0 | Length of cut (mm): 10.0
