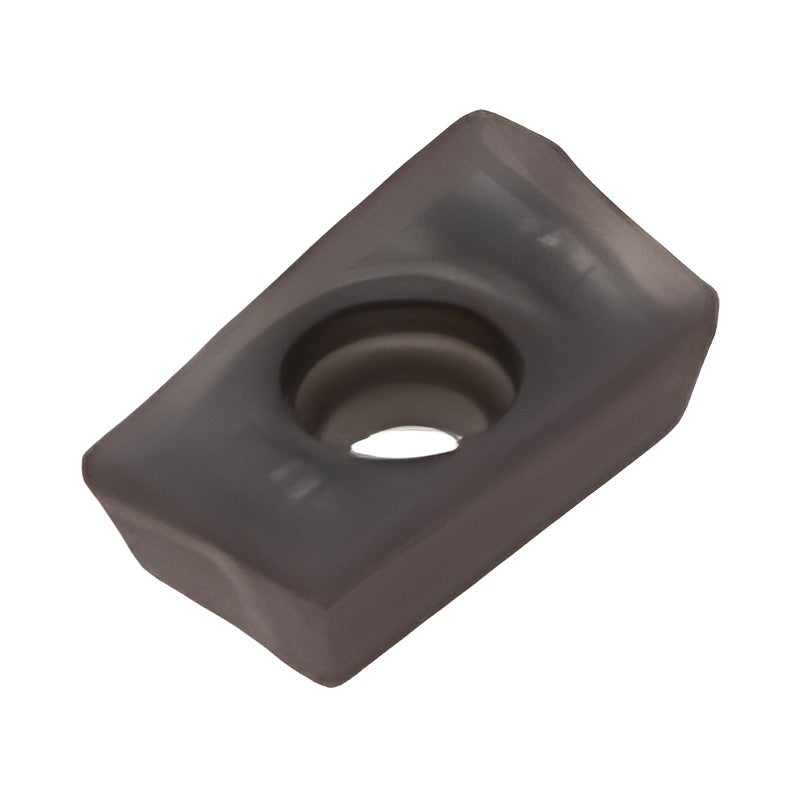

Korloy Alpha-Mill Milling Insert APMT

Korloy Alpha-Mill Milling Insert APMT

Alpha-Mill 90-degree shoulder milling system with APMT inserts and shank, cutter and modular holders.

Key features

  • Curved cutting edge and chip breaker for true 90-degree shouldering
  • High rake angle reduces cutting resistance
  • Multi-functional cutters for drilling, ramping, helical cutting and slotting
APMT0602PDFR-MA H01 Chip breaker: MA | l (mm): 6 | d (mm): 4.24 | t (mm): 2.6 | r (mm): 0.4 | d1 (mm): 2.0 | Grade: H01 | Stock: Yes
APMT0903PDFR-MA H01 Chip breaker: MA | l (mm): 9.4 | d (mm): 6.21 | t (mm): 3.6 | r (mm): 0.4 | d1 (mm): 2.8 | Grade: H01 | Stock: Yes
APMT11T3PDFR-MA H01 Chip breaker: MA | l (mm): 11.2 | d (mm): 6.467 | t (mm): 3.6 | r (mm): 0.5 | d1 (mm): 2.9 | Grade: H01 | Stock: Yes
APMT1604PDFR-MA H01 Chip breaker: MA | l (mm): 16.4 | d (mm): 9.41 | t (mm): 5.76 | r (mm): 0.8 | d1 (mm): 4.5 | Grade: H01 | Stock: Yes
APMT1806PDFR-MA H01 Chip breaker: MA | l (mm): 17.4 | d (mm): 10.98 | t (mm): 6.35 | r (mm): 0.8 | d1 (mm): 4.5 | Grade: H01 | Stock: Yes
APMT11T3PDSR-MF PC3500 Chip breaker: MF | l (mm): 11.2 | d (mm): 6.467 | t (mm): 3.6 | r (mm): 0.5 | d1 (mm): 2.9 | Grade: PC3500 | Stock: Yes
APMT11T3PDSR-MF PC5300 Chip breaker: MF | l (mm): 11.2 | d (mm): 6.467 | t (mm): 3.6 | r (mm): 0.5 | d1 (mm): 2.9 | Grade: PC5300 | Stock: Yes
APMT11T3PDSR-MF PC5400 Chip breaker: MF | l (mm): 11.2 | d (mm): 6.467 | t (mm): 3.6 | r (mm): 0.5 | d1 (mm): 2.9 | Grade: PC5400 | Stock: Yes
APMT1604PDSR-MF PC3500 Chip breaker: MF | l (mm): 16.4 | d (mm): 9.41 | t (mm): 5.76 | r (mm): 0.8 | d1 (mm): 4.5 | Grade: PC3500 | Stock: Yes
APMT1604PDSR-MF PC5300 Chip breaker: MF | l (mm): 16.4 | d (mm): 9.41 | t (mm): 5.76 | r (mm): 0.8 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
APMT1604PDSR-MF PC5400 Chip breaker: MF | l (mm): 16.4 | d (mm): 9.41 | t (mm): 5.76 | r (mm): 0.8 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
APMT1806PDSR-MF PC5300 Chip breaker: MF | l (mm): 17.4 | d (mm): 10.98 | t (mm): 6.35 | r (mm): 0.8 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
APMT1806PDSR-MF PC5400 Chip breaker: MF | l (mm): 17.4 | d (mm): 10.98 | t (mm): 6.35 | r (mm): 0.8 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
APMT0903PDER-ML PC5300 Chip breaker: ML | l (mm): 9.4 | d (mm): 6.21 | t (mm): 3.6 | r (mm): 0.4 | d1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
APMT0903PDER-ML PC5400 Chip breaker: ML | l (mm): 9.4 | d (mm): 6.21 | t (mm): 3.6 | r (mm): 0.4 | d1 (mm): 2.8 | Grade: PC5400 | Stock: Yes
APMT11T3PDER-ML PC5300 Chip breaker: ML | l (mm): 11.2 | d (mm): 6.467 | t (mm): 3.6 | r (mm): 0.5 | d1 (mm): 2.9 | Grade: PC5300 | Stock: Yes
APMT11T3PDER-ML PC5400 Chip breaker: ML | l (mm): 11.2 | d (mm): 6.467 | t (mm): 3.6 | r (mm): 0.5 | d1 (mm): 2.9 | Grade: PC5400 | Stock: Yes
APMT1604PDER-ML PC5300 Chip breaker: ML | l (mm): 16.4 | d (mm): 9.41 | t (mm): 5.76 | r (mm): 0.8 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
APMT1604PDER-ML PC5400 Chip breaker: ML | l (mm): 16.4 | d (mm): 9.41 | t (mm): 5.76 | r (mm): 0.8 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
APMT180612PDER-ML PC5300 Chip breaker: ML | l (mm): 17.4 | d (mm): 10.98 | t (mm): 6.35 | r (mm): 1.2 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
APMT180612PDER-ML PC5400 Chip breaker: ML | l (mm): 17.4 | d (mm): 10.98 | t (mm): 6.35 | r (mm): 1.2 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
APMT060202PDSR-MM PC3500 Chip breaker: MM | l (mm): 6 | d (mm): 4.24 | t (mm): 2.6 | r (mm): 2.6 | d1 (mm): 2.0 | Grade: PC3500 | Stock: Yes
APMT060202PDSR-MM PC5300 Chip breaker: MM | l (mm): 6 | d (mm): 4.24 | t (mm): 2.6 | r (mm): 2.6 | d1 (mm): 2.0 | Grade: PC5300 | Stock: Yes
APMT060202PDSR-MM PC5400 Chip breaker: MM | l (mm): 6 | d (mm): 4.24 | t (mm): 2.6 | r (mm): 2.6 | d1 (mm): 2.0 | Grade: PC5400 | Stock: Yes
APMT0602PDSR-MM PC3500 Chip breaker: MM | l (mm): 6 | d (mm): 4.24 | t (mm): 2.6 | r (mm): 2.6 | d1 (mm): 2.0 | Grade: PC3500 | Stock: Yes
APMT0602PDSR-MM PC5300 Chip breaker: MM | l (mm): 6 | d (mm): 4.24 | t (mm): 2.6 | r (mm): 2.6 | d1 (mm): 2.0 | Grade: PC5300 | Stock: Yes
APMT0602PDSR-MM PC5400 Chip breaker: MM | l (mm): 6 | d (mm): 4.24 | t (mm): 2.6 | r (mm): 2.6 | d1 (mm): 2.0 | Grade: PC5400 | Stock: Yes
APMT060208PDSR-MM PC3500 Chip breaker: MM | l (mm): 6 | d (mm): 4.24 | t (mm): 2.6 | r (mm): 2.6 | d1 (mm): 2.0 | Grade: PC3500 | Stock: Yes
APMT060208PDSR-MM PC5300 Chip breaker: MM | l (mm): 6 | d (mm): 4.24 | t (mm): 2.6 | r (mm): 2.6 | d1 (mm): 2.0 | Grade: PC5300 | Stock: Yes
APMT060208PDSR-MM PC5400 Chip breaker: MM | l (mm): 6 | d (mm): 4.24 | t (mm): 2.6 | r (mm): 2.6 | d1 (mm): 2.0 | Grade: PC5400 | Stock: Yes
APMT060212R-MM PC3500 Chip breaker: MM | l (mm): 6 | d (mm): 4.24 | t (mm): 2.6 | r (mm): 2.6 | d1 (mm): 2.0 | Grade: PC3500 | Stock: Yes
APMT060212R-MM PC5300 Chip breaker: MM | l (mm): 6 | d (mm): 4.24 | t (mm): 2.6 | r (mm): 2.6 | d1 (mm): 2.0 | Grade: PC5300 | Stock: Yes
APMT060212R-MM PC5400 Chip breaker: MM | l (mm): 6 | d (mm): 4.24 | t (mm): 2.6 | r (mm): 2.6 | d1 (mm): 2.0 | Grade: PC5400 | Stock: Yes
APMT060216R-MM PC3500 Chip breaker: MM | l (mm): 6 | d (mm): 4.24 | t (mm): 2.6 | r (mm): 2.6 | d1 (mm): 2.0 | Grade: PC3500 | Stock: Yes
APMT060216R-MM PC5300 Chip breaker: MM | l (mm): 6 | d (mm): 4.24 | t (mm): 2.6 | r (mm): 2.6 | d1 (mm): 2.0 | Grade: PC5300 | Stock: Yes
APMT060216R-MM PC5400 Chip breaker: MM | l (mm): 6 | d (mm): 4.24 | t (mm): 2.6 | r (mm): 2.6 | d1 (mm): 2.0 | Grade: PC5400 | Stock: Yes
APMT0903PDSR-MM PC3500 Chip breaker: MM | l (mm): 9.4 | d (mm): 6.21 | t (mm): 3.6 | r (mm): 3.6 | d1 (mm): 2.8 | Grade: PC3500 | Stock: Yes
APMT0903PDSR-MM PC3600 Chip breaker: MM | l (mm): 9.4 | d (mm): 6.21 | t (mm): 3.6 | r (mm): 3.6 | d1 (mm): 2.8 | Grade: PC3600 | Stock: Yes
APMT0903PDSR-MM PC5300 Chip breaker: MM | l (mm): 9.4 | d (mm): 6.21 | t (mm): 3.6 | r (mm): 3.6 | d1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
APMT0903PDSR-MM PC5400 Chip breaker: MM | l (mm): 9.4 | d (mm): 6.21 | t (mm): 3.6 | r (mm): 3.6 | d1 (mm): 2.8 | Grade: PC5400 | Stock: Yes
APMT090308PDSR-MM PC3500 Chip breaker: MM | l (mm): 9.4 | d (mm): 6.21 | t (mm): 3.6 | r (mm): 3.6 | d1 (mm): 2.8 | Grade: PC3500 | Stock: Yes
APMT090308PDSR-MM PC5300 Chip breaker: MM | l (mm): 9.4 | d (mm): 6.21 | t (mm): 3.6 | r (mm): 3.6 | d1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
APMT090308PDSR-MM PC5400 Chip breaker: MM | l (mm): 9.4 | d (mm): 6.21 | t (mm): 3.6 | r (mm): 3.6 | d1 (mm): 2.8 | Grade: PC5400 | Stock: Yes
APMT090312R-MM PC5300 Chip breaker: MM | l (mm): 9.4 | d (mm): 6.21 | t (mm): 3.6 | r (mm): 3.6 | d1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
APMT090312R-MM PC5400 Chip breaker: MM | l (mm): 9.4 | d (mm): 6.21 | t (mm): 3.6 | r (mm): 3.6 | d1 (mm): 2.8 | Grade: PC5400 | Stock: Yes
APMT090316R-MM PC3500 Chip breaker: MM | l (mm): 9.4 | d (mm): 6.21 | t (mm): 3.6 | r (mm): 3.6 | d1 (mm): 2.8 | Grade: PC3500 | Stock: Yes
APMT090316R-MM PC5300 Chip breaker: MM | l (mm): 9.4 | d (mm): 6.21 | t (mm): 3.6 | r (mm): 3.6 | d1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
APMT090316R-MM PC5400 Chip breaker: MM | l (mm): 9.4 | d (mm): 6.21 | t (mm): 3.6 | r (mm): 3.6 | d1 (mm): 2.8 | Grade: PC5400 | Stock: Yes
APMT090320R-MM PC3500 Chip breaker: MM | l (mm): 9.2 | d (mm): 6.21 | t (mm): 3.6 | r (mm): 3.6 | d1 (mm): 2.8 | Grade: PC3500 | Stock: Yes
APMT090320R-MM PC5300 Chip breaker: MM | l (mm): 9.2 | d (mm): 6.21 | t (mm): 3.6 | r (mm): 3.6 | d1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
APMT090320R-MM PC5400 Chip breaker: MM | l (mm): 9.2 | d (mm): 6.21 | t (mm): 3.6 | r (mm): 3.6 | d1 (mm): 2.8 | Grade: PC5400 | Stock: Yes
APMT090332R-MM PC5300 Chip breaker: MM | l (mm): 9.2 | d (mm): 6.21 | t (mm): 3.6 | r (mm): 3.6 | d1 (mm): 2.8 | Grade: PC5300 | Stock: Yes
APMT090332R-MM PC5400 Chip breaker: MM | l (mm): 9.2 | d (mm): 6.21 | t (mm): 3.6 | r (mm): 3.6 | d1 (mm): 2.8 | Grade: PC5400 | Stock: Yes
APMT11T3PDSR-MM PC3500 Chip breaker: MM | l (mm): 11.2 | d (mm): 6.467 | t (mm): 3.6 | r (mm): 0.5 | d1 (mm): 2.85 | Grade: PC3500 | Stock: Yes
APMT11T3PDSR-MM PC3600 Chip breaker: MM | l (mm): 11.2 | d (mm): 6.467 | t (mm): 3.6 | r (mm): 0.5 | d1 (mm): 2.85 | Grade: PC3600 | Stock: Yes
APMT11T3PDSR-MM PC5300 Chip breaker: MM | l (mm): 11.2 | d (mm): 6.467 | t (mm): 3.6 | r (mm): 0.5 | d1 (mm): 2.85 | Grade: PC5300 | Stock: Yes
APMT11T3PDSR-MM PC5400 Chip breaker: MM | l (mm): 11.2 | d (mm): 6.467 | t (mm): 3.6 | r (mm): 0.5 | d1 (mm): 2.85 | Grade: PC5400 | Stock: Yes
APMT11T308PDSR-MM PC3500 Chip breaker: MM | l (mm): 11.2 | d (mm): 6.467 | t (mm): 3.6 | r (mm): 0.8 | d1 (mm): 2.85 | Grade: PC3500 | Stock: Yes
APMT11T308PDSR-MM PC5300 Chip breaker: MM | l (mm): 11.2 | d (mm): 6.467 | t (mm): 3.6 | r (mm): 0.8 | d1 (mm): 2.85 | Grade: PC5300 | Stock: Yes
APMT11T308PDSR-MM PC5400 Chip breaker: MM | l (mm): 11.2 | d (mm): 6.467 | t (mm): 3.6 | r (mm): 0.8 | d1 (mm): 2.85 | Grade: PC5400 | Stock: Yes
APMT11T312PDSR-MM PC3500 Chip breaker: MM | l (mm): 11.2 | d (mm): 6.467 | t (mm): 3.6 | r (mm): 1.2 | d1 (mm): 2.85 | Grade: PC3500 | Stock: Yes
APMT11T312PDSR-MM PC5300 Chip breaker: MM | l (mm): 11.2 | d (mm): 6.467 | t (mm): 3.6 | r (mm): 1.2 | d1 (mm): 2.85 | Grade: PC5300 | Stock: Yes
APMT11T312PDSR-MM PC5400 Chip breaker: MM | l (mm): 11.2 | d (mm): 6.467 | t (mm): 3.6 | r (mm): 1.2 | d1 (mm): 2.85 | Grade: PC5400 | Stock: Yes
APMT11T316R-MM PC3500 Chip breaker: MM | l (mm): 11.0 | d (mm): 6.467 | t (mm): 3.6 | r (mm): 1.6 | d1 (mm): 2.85 | Grade: PC3500 | Stock: Yes
APMT11T316R-MM PC5300 Chip breaker: MM | l (mm): 11.0 | d (mm): 6.467 | t (mm): 3.6 | r (mm): 1.6 | d1 (mm): 2.85 | Grade: PC5300 | Stock: Yes
APMT11T316R-MM PC5400 Chip breaker: MM | l (mm): 11.0 | d (mm): 6.467 | t (mm): 3.6 | r (mm): 1.6 | d1 (mm): 2.85 | Grade: PC5400 | Stock: Yes
APMT11T324R-MM PC3500 Chip breaker: MM | l (mm): 11.0 | d (mm): 6.467 | t (mm): 3.6 | r (mm): 2.4 | d1 (mm): 2.85 | Grade: PC3500 | Stock: Yes
APMT11T324R-MM PC5300 Chip breaker: MM | l (mm): 11.0 | d (mm): 6.467 | t (mm): 3.6 | r (mm): 2.4 | d1 (mm): 2.85 | Grade: PC5300 | Stock: Yes
APMT11T324R-MM PC5400 Chip breaker: MM | l (mm): 11.0 | d (mm): 6.467 | t (mm): 3.6 | r (mm): 2.4 | d1 (mm): 2.85 | Grade: PC5400 | Stock: Yes
APMT1604PDSR-MM PC3500 Chip breaker: MM | l (mm): 16.4 | d (mm): 9.41 | t (mm): 5.76 | r (mm): 0.8 | d1 (mm): 4.5 | Grade: PC3500 | Stock: Yes
APMT1604PDSR-MM PC5300 Chip breaker: MM | l (mm): 16.4 | d (mm): 9.41 | t (mm): 5.76 | r (mm): 0.8 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
APMT1604PDSR-MM PC5400 Chip breaker: MM | l (mm): 16.4 | d (mm): 9.41 | t (mm): 5.76 | r (mm): 0.8 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
APMT160410PDSR-MM PC5300 Chip breaker: MM | l (mm): 16.4 | d (mm): 9.41 | t (mm): 5.76 | r (mm): 1.0 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
APMT160410PDSR-MM PC5400 Chip breaker: MM | l (mm): 16.4 | d (mm): 9.41 | t (mm): 5.76 | r (mm): 1.0 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
APMT160416PDSR-MM PC3500 Chip breaker: MM | l (mm): 16.4 | d (mm): 9.41 | t (mm): 5.76 | r (mm): 1.6 | d1 (mm): 4.5 | Grade: PC3500 | Stock: Yes
APMT160416PDSR-MM PC5300 Chip breaker: MM | l (mm): 16.4 | d (mm): 9.41 | t (mm): 5.76 | r (mm): 1.6 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
APMT160416PDSR-MM PC5400 Chip breaker: MM | l (mm): 16.4 | d (mm): 9.41 | t (mm): 5.76 | r (mm): 1.6 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
APMT160424R-MM PC3500 Chip breaker: MM | l (mm): 16 | d (mm): 9.41 | t (mm): 5.76 | r (mm): 2.4 | d1 (mm): 4.5 | Grade: PC3500 | Stock: Yes
APMT160424R-MM PC5300 Chip breaker: MM | l (mm): 16 | d (mm): 9.41 | t (mm): 5.76 | r (mm): 2.4 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
APMT160424R-MM PC5400 Chip breaker: MM | l (mm): 16 | d (mm): 9.41 | t (mm): 5.76 | r (mm): 2.4 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
APMT160430R-MM PC5300 Chip breaker: MM | l (mm): 16 | d (mm): 9.41 | t (mm): 5.76 | r (mm): 3.0 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
APMT160430R-MM PC5400 Chip breaker: MM | l (mm): 16 | d (mm): 9.41 | t (mm): 5.76 | r (mm): 3.0 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
APMT160432R-MM PC3500 Chip breaker: MM | l (mm): 16 | d (mm): 9.41 | t (mm): 5.76 | r (mm): 3.2 | d1 (mm): 4.5 | Grade: PC3500 | Stock: Yes
APMT160432R-MM PC5300 Chip breaker: MM | l (mm): 16 | d (mm): 9.41 | t (mm): 5.76 | r (mm): 3.2 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
APMT160432R-MM PC5400 Chip breaker: MM | l (mm): 16 | d (mm): 9.41 | t (mm): 5.76 | r (mm): 3.2 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
APMT160450R-MM PC5300 Chip breaker: MM | l (mm): 16 | d (mm): 9.41 | t (mm): 5.76 | r (mm): 5.0 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
APMT160450R-MM PC5400 Chip breaker: MM | l (mm): 16 | d (mm): 9.41 | t (mm): 5.76 | r (mm): 5.0 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
APMT160464R-MM PC5300 Chip breaker: MM | l (mm): 16 | d (mm): 9.41 | t (mm): 5.76 | r (mm): 6.4 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
APMT160464R-MM PC5400 Chip breaker: MM | l (mm): 16 | d (mm): 9.41 | t (mm): 5.76 | r (mm): 6.4 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
APMT1806PDSR-MM PC3500 Chip breaker: MM | l (mm): 17.4 | d (mm): 10.98 | t (mm): 6.35 | r (mm): 0.8 | d1 (mm): 4.5 | Grade: PC3500 | Stock: Yes
APMT1806PDSR-MM PC5300 Chip breaker: MM | l (mm): 17.4 | d (mm): 10.98 | t (mm): 6.35 | r (mm): 0.8 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
APMT1806PDSR-MM PC5400 Chip breaker: MM | l (mm): 17.4 | d (mm): 10.98 | t (mm): 6.35 | r (mm): 0.8 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
APMT180612PDSR-MM PC3500 Chip breaker: MM | l (mm): 17.4 | d (mm): 10.98 | t (mm): 6.35 | r (mm): 1.2 | d1 (mm): 4.5 | Grade: PC3500 | Stock: Yes
APMT180612PDSR-MM PC5300 Chip breaker: MM | l (mm): 17.4 | d (mm): 10.98 | t (mm): 6.35 | r (mm): 1.2 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
APMT180612PDSR-MM PC5400 Chip breaker: MM | l (mm): 17.4 | d (mm): 10.98 | t (mm): 6.35 | r (mm): 1.2 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
APMT180616PDSR-MM PC5300 Chip breaker: MM | l (mm): 17.4 | d (mm): 10.98 | t (mm): 6.35 | r (mm): 1.6 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
APMT180616PDSR-MM PC5400 Chip breaker: MM | l (mm): 17.4 | d (mm): 10.98 | t (mm): 6.35 | r (mm): 1.6 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
APMT180624PDSR-MM PC3500 Chip breaker: MM | l (mm): 17.4 | d (mm): 10.98 | t (mm): 6.35 | r (mm): 2.4 | d1 (mm): 4.5 | Grade: PC3500 | Stock: Yes
APMT180624PDSR-MM PC5300 Chip breaker: MM | l (mm): 17.4 | d (mm): 10.98 | t (mm): 6.35 | r (mm): 2.4 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
APMT180624PDSR-MM PC5400 Chip breaker: MM | l (mm): 17.4 | d (mm): 10.98 | t (mm): 6.35 | r (mm): 2.4 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
APMT180630R-MM PC5300 Chip breaker: MM | l (mm): 16.7 | d (mm): 10.98 | t (mm): 6.35 | r (mm): 3.0 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
APMT180630R-MM PC5400 Chip breaker: MM | l (mm): 16.7 | d (mm): 10.98 | t (mm): 6.35 | r (mm): 3.0 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
APMT180632R-MM PC3500 Chip breaker: MM | l (mm): 16.7 | d (mm): 10.98 | t (mm): 6.35 | r (mm): 3.2 | d1 (mm): 4.5 | Grade: PC3500 | Stock: Yes
APMT180632R-MM PC5300 Chip breaker: MM | l (mm): 16.7 | d (mm): 10.98 | t (mm): 6.35 | r (mm): 3.2 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
APMT180632R-MM PC5400 Chip breaker: MM | l (mm): 16.7 | d (mm): 10.98 | t (mm): 6.35 | r (mm): 3.2 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
APMT180640R-MM PC5300 Chip breaker: MM | l (mm): 16.7 | d (mm): 10.98 | t (mm): 6.35 | r (mm): 4.0 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
APMT180640R-MM PC5400 Chip breaker: MM | l (mm): 16.7 | d (mm): 10.98 | t (mm): 6.35 | r (mm): 4.0 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
APMT180648R-MM PC5300 Chip breaker: MM | l (mm): 16.7 | d (mm): 10.98 | t (mm): 6.35 | r (mm): 4.8 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
APMT180648R-MM PC5400 Chip breaker: MM | l (mm): 16.7 | d (mm): 10.98 | t (mm): 6.35 | r (mm): 4.8 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
APMT180650R-MM PC5300 Chip breaker: MM | l (mm): 16.7 | d (mm): 10.98 | t (mm): 6.35 | r (mm): 5.0 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
APMT180650R-MM PC5400 Chip breaker: MM | l (mm): 16.7 | d (mm): 10.98 | t (mm): 6.35 | r (mm): 5.0 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
APMT180664R-MM PC5300 Chip breaker: MM | l (mm): 16.7 | d (mm): 10.98 | t (mm): 6.35 | r (mm): 6.4 | d1 (mm): 4.5 | Grade: PC5300 | Stock: Yes
APMT180664R-MM PC5400 Chip breaker: MM | l (mm): 16.7 | d (mm): 10.98 | t (mm): 6.35 | r (mm): 6.4 | d1 (mm): 4.5 | Grade: PC5400 | Stock: Yes
Milling InsertsKorloy
113 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Alpha-Mill Milling Insert APMT

Brand Korloy·Milling Inserts

Available part numbers (113)

APMT0602PDFR-MA H01, APMT0903PDFR-MA H01, APMT11T3PDFR-MA H01, APMT1604PDFR-MA H01, APMT1806PDFR-MA H01, APMT11T3PDSR-MF PC3500, APMT11T3PDSR-MF PC5300, APMT11T3PDSR-MF PC5400, APMT1604PDSR-MF PC3500, APMT1604PDSR-MF PC5300 + 103 more — see full table ↓
