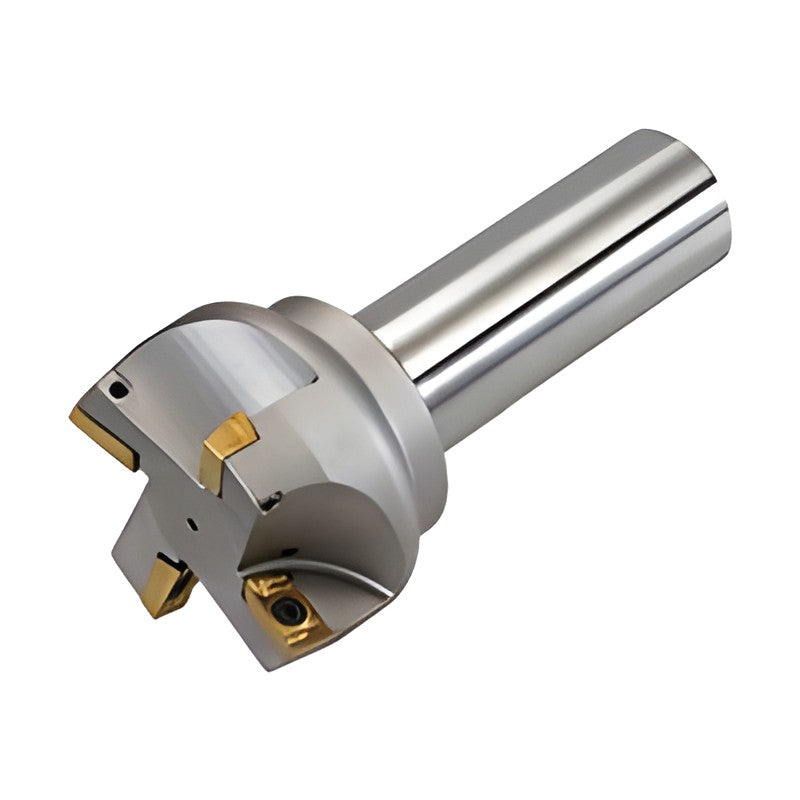

Korloy Alpha Mill Shank Type End Mill AMS1000SE/2000SE

Korloy Alpha Mill Shank Type End Mill AMS1000SE/2000SE

Indexable end mill for shouldering and various milling applications.

Key features

  • Curved cutting edge for true 90 degree shouldering
  • Facing, slotting and square shoulder milling
  • Strong cutting edge for large depths of cut
AMS1025HSE Teeth: 3 | D (mm): 25 | d (mm): 25 | l (mm): 30 | L (mm): 115 | ap max (mm): 2.5 | Weight (kg): 0.41
AMS2025HSE Teeth: 2 | D (mm): 25 | d (mm): 25 | l (mm): 30 | L (mm): 115 | ap max (mm): 4 | Weight (kg): 0.4 | Stock: Yes
AMS2032HSE Teeth: 3 | D (mm): 32 | d (mm): 32 | l (mm): 40 | L (mm): 125 | ap max (mm): 4 | Weight (kg): 0.72 | Stock: Yes
AMS2040HSE Teeth: 3 | D (mm): 40 | d (mm): 32 | l (mm): 40 | L (mm): 130 | ap max (mm): 4 | Weight (kg): 0.86 | Stock: Yes
AMS2040HSE-S40 Teeth: 3 | D (mm): 40 | d (mm): 40 | l (mm): 40 | L (mm): 130 | ap max (mm): 4 | Weight (kg): 1.2
AMS2040HSE-S42 Teeth: 3 | D (mm): 40 | d (mm): 42 | l (mm): 40 | L (mm): 130 | ap max (mm): 4 | Weight (kg): 1.3
AMS2050HSE Teeth: 4 | D (mm): 50 | d (mm): 32 | l (mm): 40 | L (mm): 135 | ap max (mm): 4 | Weight (kg): 0.98
AMS2050HSE-S40 Teeth: 4 | D (mm): 50 | d (mm): 40 | l (mm): 40 | L (mm): 135 | ap max (mm): 4 | Weight (kg): 1.3
AMS2050HSE-S42 Teeth: 4 | D (mm): 50 | d (mm): 42 | l (mm): 40 | L (mm): 135 | ap max (mm): 4 | Weight (kg): 1.4
AMS2063HSE Teeth: 5 | D (mm): 63 | d (mm): 32 | l (mm): 40 | L (mm): 135 | ap max (mm): 4 | Weight (kg): 1.24
AMS2063HSE-S40 Teeth: 5 | D (mm): 63 | d (mm): 40 | l (mm): 40 | L (mm): 135 | ap max (mm): 4 | Weight (kg): 1.57
AMS2063HSE-S42 Teeth: 5 | D (mm): 63 | d (mm): 42 | l (mm): 40 | L (mm): 135 | ap max (mm): 4 | Weight (kg): 1.62
Milling CuttersKorloy
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Alpha Mill Shank Type End Mill AMS1000SE/2000SE

Brand Korloy·Milling Cutters

Available part numbers (12)

AMS1025HSE, AMS2025HSE, AMS2032HSE, AMS2040HSE, AMS2040HSE-S40, AMS2040HSE-S42, AMS2050HSE, AMS2050HSE-S40, AMS2050HSE-S42, AMS2063HSE + 2 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AMS1025HSETeeth: 3 | D (mm): 25 | d (mm): 25 | l (mm): 30 | L (mm): 115 | ap max (mm): 2.5 | Weight (kg): 0.41
AMS2025HSETeeth: 2 | D (mm): 25 | d (mm): 25 | l (mm): 30 | L (mm): 115 | ap max (mm): 4 | Weight (kg): 0.4 | Stock: Yes
AMS2032HSETeeth: 3 | D (mm): 32 | d (mm): 32 | l (mm): 40 | L (mm): 125 | ap max (mm): 4 | Weight (kg): 0.72 | Stock: Yes
AMS2040HSETeeth: 3 | D (mm): 40 | d (mm): 32 | l (mm): 40 | L (mm): 130 | ap max (mm): 4 | Weight (kg): 0.86 | Stock: Yes
AMS2040HSE-S40Teeth: 3 | D (mm): 40 | d (mm): 40 | l (mm): 40 | L (mm): 130 | ap max (mm): 4 | Weight (kg): 1.2
AMS2040HSE-S42Teeth: 3 | D (mm): 40 | d (mm): 42 | l (mm): 40 | L (mm): 130 | ap max (mm): 4 | Weight (kg): 1.3
AMS2050HSETeeth: 4 | D (mm): 50 | d (mm): 32 | l (mm): 40 | L (mm): 135 | ap max (mm): 4 | Weight (kg): 0.98
AMS2050HSE-S40Teeth: 4 | D (mm): 50 | d (mm): 40 | l (mm): 40 | L (mm): 135 | ap max (mm): 4 | Weight (kg): 1.3
AMS2050HSE-S42Teeth: 4 | D (mm): 50 | d (mm): 42 | l (mm): 40 | L (mm): 135 | ap max (mm): 4 | Weight (kg): 1.4
AMS2063HSETeeth: 5 | D (mm): 63 | d (mm): 32 | l (mm): 40 | L (mm): 135 | ap max (mm): 4 | Weight (kg): 1.24
AMS2063HSE-S40Teeth: 5 | D (mm): 63 | d (mm): 40 | l (mm): 40 | L (mm): 135 | ap max (mm): 4 | Weight (kg): 1.57
AMS2063HSE-S42Teeth: 5 | D (mm): 63 | d (mm): 42 | l (mm): 40 | L (mm): 135 | ap max (mm): 4 | Weight (kg): 1.62
