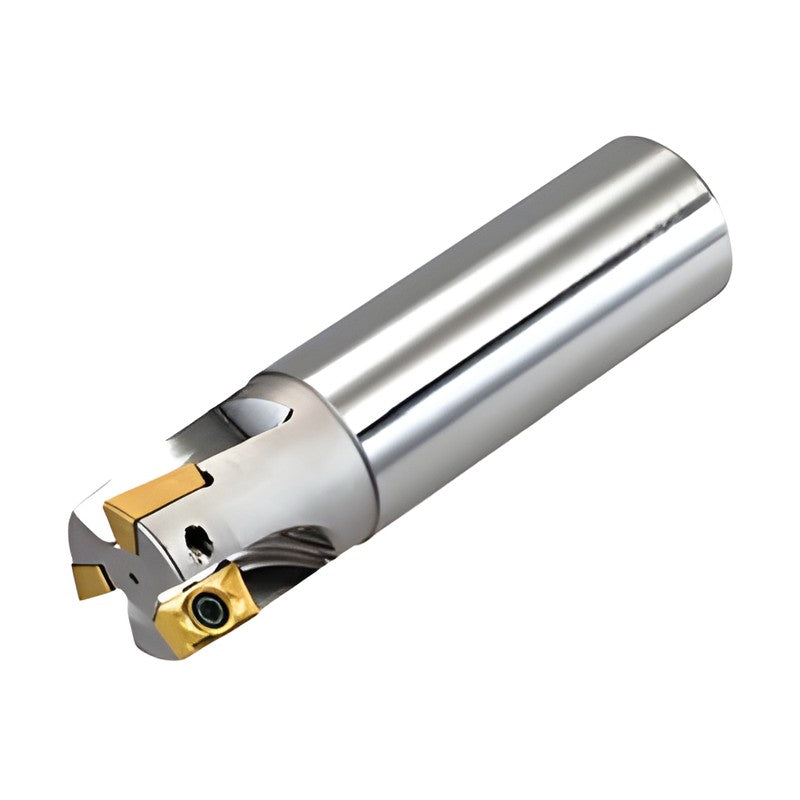

Korloy Alpha Mill Shank Type End Mill AMS3000S-K

Korloy Alpha Mill Shank Type End Mill AMS3000S-K

Indexable end mill for shouldering and various milling applications.

Key features

  • Curved cutting edge for true 90 degree shouldering
  • Facing, slotting and square shoulder milling
  • Strong cutting edge for large depths of cut
AMS3025HS-K Teeth: 2 | D (mm): 25 | d (mm): 25 | l (mm): 35 | L (mm): 115 | ap max (mm): 16 | Weight (kg): 0.4 | Stock: Yes
AMS3032HS-K Teeth: 3 | D (mm): 32 | d (mm): 32 | l (mm): 40 | L (mm): 125 | ap max (mm): 16 | Weight (kg): 0.69 | Stock: Yes
AMS3040HS-K Teeth: 4 | D (mm): 40 | d (mm): 32 | l (mm): 42 | L (mm): 130 | ap max (mm): 16 | Weight (kg): 0.8 | Stock: Yes
AMS3040HS-K-S40 Teeth: 4 | D (mm): 40 | d (mm): 40 | l (mm): 42 | L (mm): 130 | ap max (mm): 16 | Weight (kg): 1.1
AMS3040HS-K-S42 Teeth: 4 | D (mm): 40 | d (mm): 42 | l (mm): 42 | L (mm): 130 | ap max (mm): 16 | Weight (kg): 1.2
AMS3050HS-K Teeth: 5 | D (mm): 50 | d (mm): 32 | l (mm): 45 | L (mm): 135 | ap max (mm): 16 | Weight (kg): 1.0
AMS3050HS-K-S40 Teeth: 5 | D (mm): 50 | d (mm): 40 | l (mm): 45 | L (mm): 135 | ap max (mm): 16 | Weight (kg): 1.3 | Stock: Yes
AMS3050HS-K-S42 Teeth: 5 | D (mm): 50 | d (mm): 42 | l (mm): 45 | L (mm): 135 | ap max (mm): 16 | Weight (kg): 1.4 | Stock: Yes
AMS3063HS-K Teeth: 6 | D (mm): 63 | d (mm): 32 | l (mm): 45 | L (mm): 135 | ap max (mm): 16 | Weight (kg): 1.25
AMS3063HS-K-S40 Teeth: 6 | D (mm): 63 | d (mm): 40 | l (mm): 45 | L (mm): 135 | ap max (mm): 16 | Weight (kg): 1.5
AMS3063HS-K-S42 Teeth: 6 | D (mm): 63 | d (mm): 42 | l (mm): 45 | L (mm): 135 | ap max (mm): 16 | Weight (kg): 1.54 | Stock: Yes
Milling CuttersKorloy
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Alpha Mill Shank Type End Mill AMS3000S-K

Brand Korloy·Milling Cutters

Available part numbers (11)

AMS3025HS-K, AMS3032HS-K, AMS3040HS-K, AMS3040HS-K-S40, AMS3040HS-K-S42, AMS3050HS-K, AMS3050HS-K-S40, AMS3050HS-K-S42, AMS3063HS-K, AMS3063HS-K-S40 + 1 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AMS3025HS-KTeeth: 2 | D (mm): 25 | d (mm): 25 | l (mm): 35 | L (mm): 115 | ap max (mm): 16 | Weight (kg): 0.4 | Stock: Yes
AMS3032HS-KTeeth: 3 | D (mm): 32 | d (mm): 32 | l (mm): 40 | L (mm): 125 | ap max (mm): 16 | Weight (kg): 0.69 | Stock: Yes
AMS3040HS-KTeeth: 4 | D (mm): 40 | d (mm): 32 | l (mm): 42 | L (mm): 130 | ap max (mm): 16 | Weight (kg): 0.8 | Stock: Yes
AMS3040HS-K-S40Teeth: 4 | D (mm): 40 | d (mm): 40 | l (mm): 42 | L (mm): 130 | ap max (mm): 16 | Weight (kg): 1.1
AMS3040HS-K-S42Teeth: 4 | D (mm): 40 | d (mm): 42 | l (mm): 42 | L (mm): 130 | ap max (mm): 16 | Weight (kg): 1.2
AMS3050HS-KTeeth: 5 | D (mm): 50 | d (mm): 32 | l (mm): 45 | L (mm): 135 | ap max (mm): 16 | Weight (kg): 1.0
AMS3050HS-K-S40Teeth: 5 | D (mm): 50 | d (mm): 40 | l (mm): 45 | L (mm): 135 | ap max (mm): 16 | Weight (kg): 1.3 | Stock: Yes
AMS3050HS-K-S42Teeth: 5 | D (mm): 50 | d (mm): 42 | l (mm): 45 | L (mm): 135 | ap max (mm): 16 | Weight (kg): 1.4 | Stock: Yes
AMS3063HS-KTeeth: 6 | D (mm): 63 | d (mm): 32 | l (mm): 45 | L (mm): 135 | ap max (mm): 16 | Weight (kg): 1.25
AMS3063HS-K-S40Teeth: 6 | D (mm): 63 | d (mm): 40 | l (mm): 45 | L (mm): 135 | ap max (mm): 16 | Weight (kg): 1.5
AMS3063HS-K-S42Teeth: 6 | D (mm): 63 | d (mm): 42 | l (mm): 45 | L (mm): 135 | ap max (mm): 16 | Weight (kg): 1.54 | Stock: Yes
