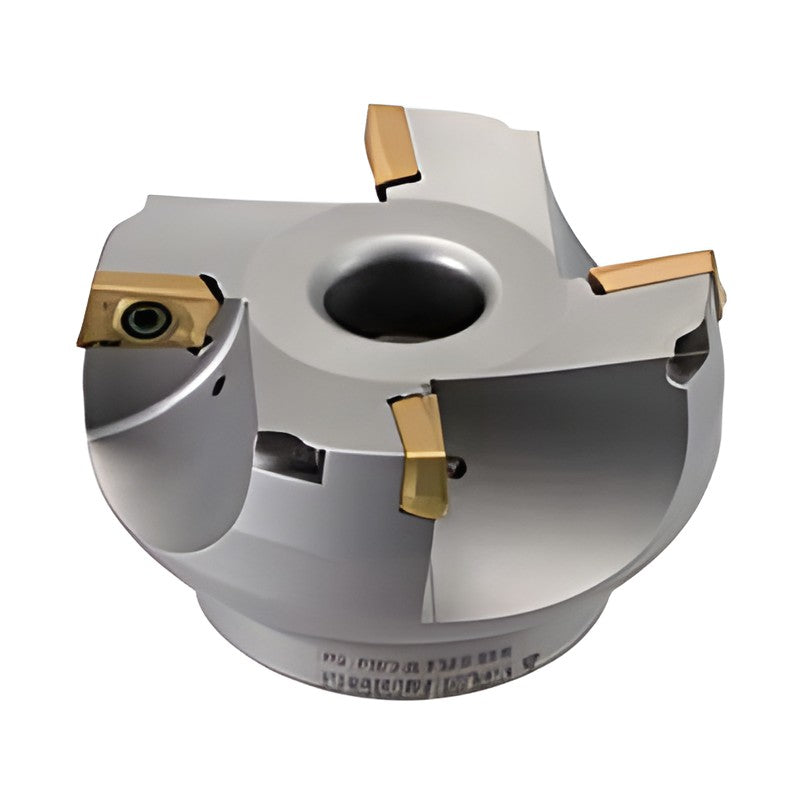

Korloy Alpha Mill Shell Mill AMC(M)1000SE/2000SE

Korloy Alpha Mill Shell Mill AMC(M)1000SE/2000SE

Indexable end mill for shouldering and various milling applications.

Key features

  • Curved cutting edge for true 90 degree shouldering
  • Facing, slotting and square shoulder milling
  • Strong cutting edge for large depths of cut
AMCM1040HSE Teeth: 4 | D (mm): 40 | D2 (mm): 34 | d (mm): 16 | d1 (mm): 9 | ap max (mm): 2.5 | Weight (kg): 0.26 | d2 (mm): 14 | E (mm): 19 | F (mm): 40 | a (mm): 8.4 | b (mm): 5.6
AMCM1050HSE Teeth: 5 | D (mm): 50 | D2 (mm): 42 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 2.5 | Weight (kg): 0.39 | d2 (mm): 18 | E (mm): 21 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3
AMC2080HSE Teeth: 5 | D (mm): 80 | D2 (mm): 57 | d (mm): 25.4 | d1 (mm): 14 | ap max (mm): 4 | Weight (kg): 1.2 | d2 (mm): 20 | E (mm): 25 | F (mm): 50 | a (mm): 9.5 | b (mm): 6.0 | Stock: Yes
AMC2100HSE Teeth: 6 | D (mm): 100 | D2 (mm): 67 | d (mm): 31.75 | d1 (mm): 18 | ap max (mm): 4 | Weight (kg): 2.33 | d2 (mm): 26 | E (mm): 32 | F (mm): 63 | a (mm): 12.7 | b (mm): 8.0
AMCM2100HSE Teeth: 6 | D (mm): 100 | D2 (mm): 67 | d (mm): 32 | d1 (mm): 18 | ap max (mm): 4 | Weight (kg): 2.33 | d2 (mm): 26 | E (mm): 28 | F (mm): 63 | a (mm): 14.4 | b (mm): 8.0
Milling CuttersKorloy
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Alpha Mill Shell Mill AMC(M)1000SE/2000SE

Brand Korloy·Milling Cutters

Available part numbers (5)

AMCM1040HSE, AMCM1050HSE, AMC2080HSE, AMC2100HSE, AMCM2100HSE

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AMCM1040HSETeeth: 4 | D (mm): 40 | D2 (mm): 34 | d (mm): 16 | d1 (mm): 9 | ap max (mm): 2.5 | Weight (kg): 0.26 | d2 (mm): 14 | E (mm): 19 | F (mm): 40 | a (mm): 8.4 | b (mm): 5.6
AMCM1050HSETeeth: 5 | D (mm): 50 | D2 (mm): 42 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 2.5 | Weight (kg): 0.39 | d2 (mm): 18 | E (mm): 21 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3
AMC2080HSETeeth: 5 | D (mm): 80 | D2 (mm): 57 | d (mm): 25.4 | d1 (mm): 14 | ap max (mm): 4 | Weight (kg): 1.2 | d2 (mm): 20 | E (mm): 25 | F (mm): 50 | a (mm): 9.5 | b (mm): 6.0 | Stock: Yes
AMC2100HSETeeth: 6 | D (mm): 100 | D2 (mm): 67 | d (mm): 31.75 | d1 (mm): 18 | ap max (mm): 4 | Weight (kg): 2.33 | d2 (mm): 26 | E (mm): 32 | F (mm): 63 | a (mm): 12.7 | b (mm): 8.0
AMCM2100HSETeeth: 6 | D (mm): 100 | D2 (mm): 67 | d (mm): 32 | d1 (mm): 18 | ap max (mm): 4 | Weight (kg): 2.33 | d2 (mm): 26 | E (mm): 28 | F (mm): 63 | a (mm): 14.4 | b (mm): 8.0
