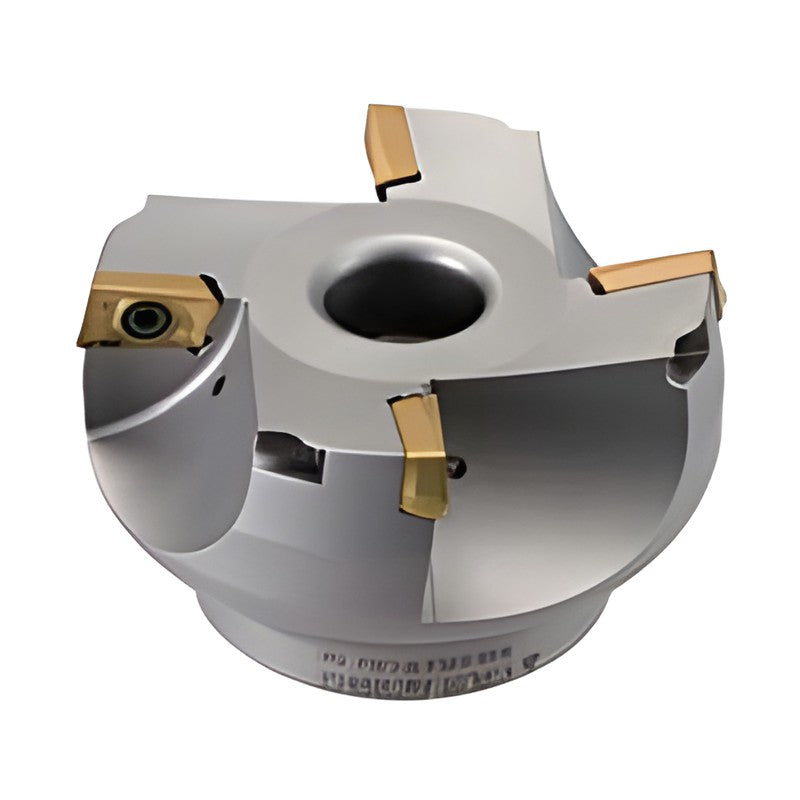

Korloy Alpha Mill Shell Mill AMC(M)3000SE

Korloy Alpha Mill Shell Mill AMC(M)3000SE

Indexable end mill for shouldering and various milling applications.

Key features

  • Curved cutting edge for true 90 degree shouldering
  • Facing, slotting and square shoulder milling
  • Strong cutting edge for large depths of cut
AMC3080HSE Teeth: 4 | D (mm): 80 | D2 (mm): 57 | d (mm): 25.4 | d1 (mm): 14 | ap max (mm): 6 | Weight (kg): 1.3 | d2 (mm): 20 | E (mm): 25 | F (mm): 50 | a (mm): 9.5 | b (mm): 6.0
AMC3100HSE Teeth: 5 | D (mm): 100 | D2 (mm): 67 | d (mm): 31.75 | d1 (mm): 18 | ap max (mm): 6 | Weight (kg): 2.3 | d2 (mm): 26 | E (mm): 32 | F (mm): 63 | a (mm): 12.7 | b (mm): 8.0
AMCM3100HSE Teeth: 5 | D (mm): 100 | D2 (mm): 67 | d (mm): 32 | d1 (mm): 18 | ap max (mm): 6 | Weight (kg): 2.3 | d2 (mm): 26 | E (mm): 28 | F (mm): 63 | a (mm): 14.4 | b (mm): 8.0
Milling CuttersKorloy
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Alpha Mill Shell Mill AMC(M)3000SE

Brand Korloy·Milling Cutters

Available part numbers (3)

AMC3080HSE, AMC3100HSE, AMCM3100HSE

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AMC3080HSETeeth: 4 | D (mm): 80 | D2 (mm): 57 | d (mm): 25.4 | d1 (mm): 14 | ap max (mm): 6 | Weight (kg): 1.3 | d2 (mm): 20 | E (mm): 25 | F (mm): 50 | a (mm): 9.5 | b (mm): 6.0
AMC3100HSETeeth: 5 | D (mm): 100 | D2 (mm): 67 | d (mm): 31.75 | d1 (mm): 18 | ap max (mm): 6 | Weight (kg): 2.3 | d2 (mm): 26 | E (mm): 32 | F (mm): 63 | a (mm): 12.7 | b (mm): 8.0
AMCM3100HSETeeth: 5 | D (mm): 100 | D2 (mm): 67 | d (mm): 32 | d1 (mm): 18 | ap max (mm): 6 | Weight (kg): 2.3 | d2 (mm): 26 | E (mm): 28 | F (mm): 63 | a (mm): 14.4 | b (mm): 8.0
