Korloy Alpha Mill-X Milling Insert ADKT

Korloy Alpha Mill-X Milling Insert ADKT

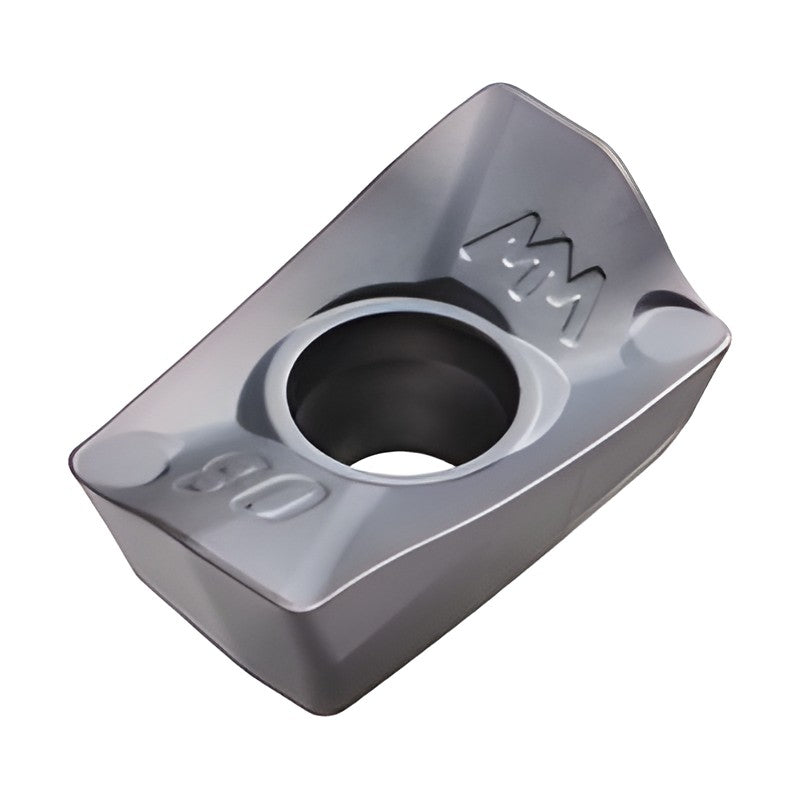

Indexable ADKT milling insert used on the Alpha Mill-X milling tool series.

ADKT170608PESR-MM PC3700 l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 0.8 | d1 (mm): 4.5 | Chip breaker: MM | Grade: PC3700 | Grade type: Coated carbide | Stock: Not marked
ADKT170608PESR-MM PC6510 l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 0.8 | d1 (mm): 4.5 | Chip breaker: MM | Grade: PC6510 | Grade type: Coated carbide | Stock: Not marked
ADKT170608PESR-MM PC5300 l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 0.8 | d1 (mm): 4.5 | Chip breaker: MM | Grade: PC5300 | Grade type: Coated carbide | Stock: Not marked
ADKT170608PESR-MM PC5400 l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 0.8 | d1 (mm): 4.5 | Chip breaker: MM | Grade: PC5400 | Grade type: Coated carbide | Stock: Not marked
ADKT170608PESR-MM UNC840 l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 0.8 | d1 (mm): 4.5 | Chip breaker: MM | Grade: UNC840 | Grade type: Coated carbide | Stock: Not marked
ADKT170608PESR-ML PC3700 l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 0.8 | d1 (mm): 4.5 | Chip breaker: ML | Grade: PC3700 | Grade type: Coated carbide | Stock: Not marked
ADKT170608PESR-ML PC6510 l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 0.8 | d1 (mm): 4.5 | Chip breaker: ML | Grade: PC6510 | Grade type: Coated carbide | Stock: Not marked
ADKT170608PESR-ML PC5300 l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 0.8 | d1 (mm): 4.5 | Chip breaker: ML | Grade: PC5300 | Grade type: Coated carbide | Stock: Not marked
ADKT170608PESR-ML PC5400 l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 0.8 | d1 (mm): 4.5 | Chip breaker: ML | Grade: PC5400 | Grade type: Coated carbide | Stock: Not marked
ADKT170608PESR-ML UNC840 l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 0.8 | d1 (mm): 4.5 | Chip breaker: ML | Grade: UNC840 | Grade type: Coated carbide | Stock: Not marked
ADKT170616PESR-MM PC3700 l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 1.6 | d1 (mm): 4.5 | Chip breaker: MM | Grade: PC3700 | Grade type: Coated carbide | Stock: Not marked
ADKT170616PESR-MM PC6510 l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 1.6 | d1 (mm): 4.5 | Chip breaker: MM | Grade: PC6510 | Grade type: Coated carbide | Stock: Not marked
ADKT170616PESR-MM PC5300 l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 1.6 | d1 (mm): 4.5 | Chip breaker: MM | Grade: PC5300 | Grade type: Coated carbide | Stock: Not marked
ADKT170616PESR-MM PC5400 l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 1.6 | d1 (mm): 4.5 | Chip breaker: MM | Grade: PC5400 | Grade type: Coated carbide | Stock: Not marked
ADKT170616PESR-MM UNC840 l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 1.6 | d1 (mm): 4.5 | Chip breaker: MM | Grade: UNC840 | Grade type: Coated carbide | Stock: Not marked
ADKT170620PESR-MM PC3700 l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 2.0 | d1 (mm): 4.5 | Chip breaker: MM | Grade: PC3700 | Grade type: Coated carbide | Stock: Not marked
ADKT170620PESR-MM PC6510 l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 2.0 | d1 (mm): 4.5 | Chip breaker: MM | Grade: PC6510 | Grade type: Coated carbide | Stock: Not marked
ADKT170620PESR-MM PC5300 l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 2.0 | d1 (mm): 4.5 | Chip breaker: MM | Grade: PC5300 | Grade type: Coated carbide | Stock: Not marked
ADKT170620PESR-MM PC5400 l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 2.0 | d1 (mm): 4.5 | Chip breaker: MM | Grade: PC5400 | Grade type: Coated carbide | Stock: Not marked
ADKT170620PESR-MM UNC840 l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 2.0 | d1 (mm): 4.5 | Chip breaker: MM | Grade: UNC840 | Grade type: Coated carbide | Stock: Not marked
Milling InsertsKorloy
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Alpha Mill-X Milling Insert ADKT

Brand Korloy·Milling Inserts

Available part numbers (20)

ADKT170608PESR-MM PC3700, ADKT170608PESR-MM PC6510, ADKT170608PESR-MM PC5300, ADKT170608PESR-MM PC5400, ADKT170608PESR-MM UNC840, ADKT170608PESR-ML PC3700, ADKT170608PESR-ML PC6510, ADKT170608PESR-ML PC5300, ADKT170608PESR-ML PC5400, ADKT170608PESR-ML UNC840 + 10 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ADKT170608PESR-MM PC3700l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 0.8 | d1 (mm): 4.5 | Chip breaker: MM | Grade: PC3700 | Grade type: Coated carbide | Stock: Not marked
ADKT170608PESR-MM PC6510l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 0.8 | d1 (mm): 4.5 | Chip breaker: MM | Grade: PC6510 | Grade type: Coated carbide | Stock: Not marked
ADKT170608PESR-MM PC5300l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 0.8 | d1 (mm): 4.5 | Chip breaker: MM | Grade: PC5300 | Grade type: Coated carbide | Stock: Not marked
ADKT170608PESR-MM PC5400l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 0.8 | d1 (mm): 4.5 | Chip breaker: MM | Grade: PC5400 | Grade type: Coated carbide | Stock: Not marked
ADKT170608PESR-MM UNC840l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 0.8 | d1 (mm): 4.5 | Chip breaker: MM | Grade: UNC840 | Grade type: Coated carbide | Stock: Not marked
ADKT170608PESR-ML PC3700l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 0.8 | d1 (mm): 4.5 | Chip breaker: ML | Grade: PC3700 | Grade type: Coated carbide | Stock: Not marked
ADKT170608PESR-ML PC6510l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 0.8 | d1 (mm): 4.5 | Chip breaker: ML | Grade: PC6510 | Grade type: Coated carbide | Stock: Not marked
ADKT170608PESR-ML PC5300l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 0.8 | d1 (mm): 4.5 | Chip breaker: ML | Grade: PC5300 | Grade type: Coated carbide | Stock: Not marked
ADKT170608PESR-ML PC5400l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 0.8 | d1 (mm): 4.5 | Chip breaker: ML | Grade: PC5400 | Grade type: Coated carbide | Stock: Not marked
ADKT170608PESR-ML UNC840l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 0.8 | d1 (mm): 4.5 | Chip breaker: ML | Grade: UNC840 | Grade type: Coated carbide | Stock: Not marked
ADKT170616PESR-MM PC3700l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 1.6 | d1 (mm): 4.5 | Chip breaker: MM | Grade: PC3700 | Grade type: Coated carbide | Stock: Not marked
ADKT170616PESR-MM PC6510l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 1.6 | d1 (mm): 4.5 | Chip breaker: MM | Grade: PC6510 | Grade type: Coated carbide | Stock: Not marked
ADKT170616PESR-MM PC5300l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 1.6 | d1 (mm): 4.5 | Chip breaker: MM | Grade: PC5300 | Grade type: Coated carbide | Stock: Not marked
ADKT170616PESR-MM PC5400l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 1.6 | d1 (mm): 4.5 | Chip breaker: MM | Grade: PC5400 | Grade type: Coated carbide | Stock: Not marked
ADKT170616PESR-MM UNC840l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 1.6 | d1 (mm): 4.5 | Chip breaker: MM | Grade: UNC840 | Grade type: Coated carbide | Stock: Not marked
ADKT170620PESR-MM PC3700l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 2.0 | d1 (mm): 4.5 | Chip breaker: MM | Grade: PC3700 | Grade type: Coated carbide | Stock: Not marked
ADKT170620PESR-MM PC6510l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 2.0 | d1 (mm): 4.5 | Chip breaker: MM | Grade: PC6510 | Grade type: Coated carbide | Stock: Not marked
ADKT170620PESR-MM PC5300l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 2.0 | d1 (mm): 4.5 | Chip breaker: MM | Grade: PC5300 | Grade type: Coated carbide | Stock: Not marked
ADKT170620PESR-MM PC5400l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 2.0 | d1 (mm): 4.5 | Chip breaker: MM | Grade: PC5400 | Grade type: Coated carbide | Stock: Not marked
ADKT170620PESR-MM UNC840l (mm): 19.650 | d (mm): 10.843 | t (mm): 6.529 | r (mm): 2.0 | d1 (mm): 4.5 | Chip breaker: MM | Grade: UNC840 | Grade type: Coated carbide | Stock: Not marked
