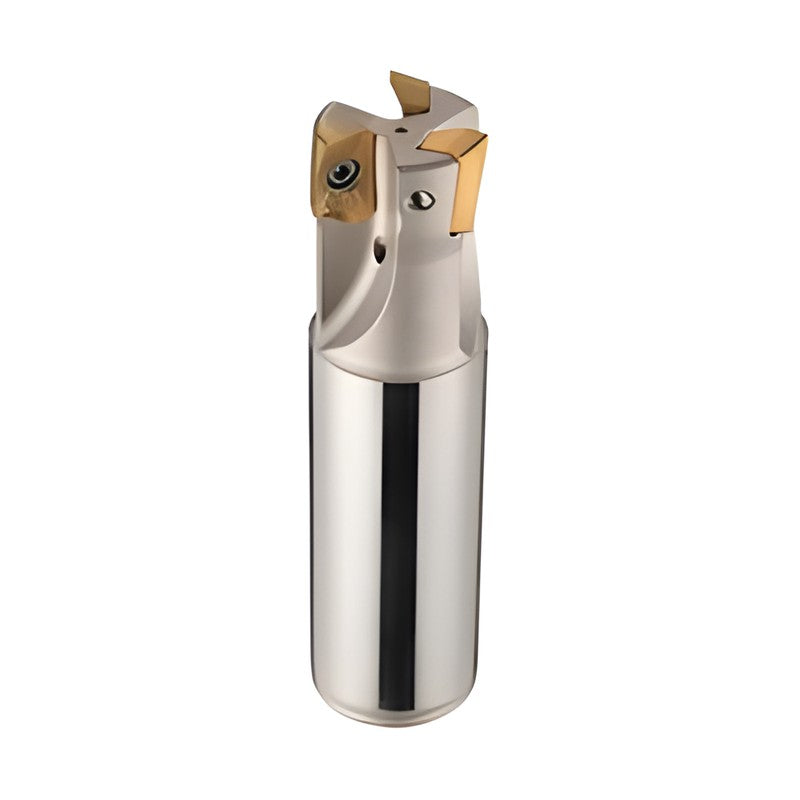

Korloy Alpha Mill-X Shank Type End Mill AMXS

Korloy Alpha Mill-X Shank Type End Mill AMXS

Milling tool for high productivity with good perpendicularity and minimized cutting load.

Key features

  • Superior perpendicularity and surface finish
  • High rake angle edge reduces cutting load and burr
  • Cutting speed and feed per tooth improved by about 15 percent
AMXS032R-3W32-125-AD17 Teeth: 3 | D (mm): 32 | d (mm): 32 | l (mm): 45 | L (mm): 125 | ap max (mm): 16.5 | Weight (kg): 1.05
AMXS032R-3C32-200-AD17 Teeth: 3 | D (mm): 32 | d (mm): 32 | l (mm): 45 | L (mm): 200 | ap max (mm): 16.5 | Weight (kg): 0.62
AMXS033R-3W32-125-AD17 Teeth: 3 | D (mm): 33 | d (mm): 32 | l (mm): 45 | L (mm): 125 | ap max (mm): 16.5 | Weight (kg): 1.05
AMXS033R-3C32-200-AD17 Teeth: 3 | D (mm): 33 | d (mm): 32 | l (mm): 45 | L (mm): 200 | ap max (mm): 16.5 | Weight (kg): 0.62
AMXS040R-3W32-130-AD17 Teeth: 3 | D (mm): 40 | d (mm): 32 | l (mm): 50 | L (mm): 130 | ap max (mm): 16.5 | Weight (kg): 1.17
AMXS040R-3C32-200-AD17 Teeth: 3 | D (mm): 40 | d (mm): 32 | l (mm): 50 | L (mm): 200 | ap max (mm): 16.5 | Weight (kg): 0.75
AMXS040R-4W32-130-AD17 Teeth: 4 | D (mm): 40 | d (mm): 32 | l (mm): 50 | L (mm): 130 | ap max (mm): 16.5 | Weight (kg): 1.20
AMXS040R-4C32-200-AD17 Teeth: 4 | D (mm): 40 | d (mm): 32 | l (mm): 50 | L (mm): 200 | ap max (mm): 16.5 | Weight (kg): 0.74
Milling CuttersKorloy
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Alpha Mill-X Shank Type End Mill AMXS

Brand Korloy·Milling Cutters

Available part numbers (8)

AMXS032R-3W32-125-AD17, AMXS032R-3C32-200-AD17, AMXS033R-3W32-125-AD17, AMXS033R-3C32-200-AD17, AMXS040R-3W32-130-AD17, AMXS040R-3C32-200-AD17, AMXS040R-4W32-130-AD17, AMXS040R-4C32-200-AD17

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AMXS032R-3W32-125-AD17Teeth: 3 | D (mm): 32 | d (mm): 32 | l (mm): 45 | L (mm): 125 | ap max (mm): 16.5 | Weight (kg): 1.05
AMXS032R-3C32-200-AD17Teeth: 3 | D (mm): 32 | d (mm): 32 | l (mm): 45 | L (mm): 200 | ap max (mm): 16.5 | Weight (kg): 0.62
AMXS033R-3W32-125-AD17Teeth: 3 | D (mm): 33 | d (mm): 32 | l (mm): 45 | L (mm): 125 | ap max (mm): 16.5 | Weight (kg): 1.05
AMXS033R-3C32-200-AD17Teeth: 3 | D (mm): 33 | d (mm): 32 | l (mm): 45 | L (mm): 200 | ap max (mm): 16.5 | Weight (kg): 0.62
AMXS040R-3W32-130-AD17Teeth: 3 | D (mm): 40 | d (mm): 32 | l (mm): 50 | L (mm): 130 | ap max (mm): 16.5 | Weight (kg): 1.17
AMXS040R-3C32-200-AD17Teeth: 3 | D (mm): 40 | d (mm): 32 | l (mm): 50 | L (mm): 200 | ap max (mm): 16.5 | Weight (kg): 0.75
AMXS040R-4W32-130-AD17Teeth: 4 | D (mm): 40 | d (mm): 32 | l (mm): 50 | L (mm): 130 | ap max (mm): 16.5 | Weight (kg): 1.20
AMXS040R-4C32-200-AD17Teeth: 4 | D (mm): 40 | d (mm): 32 | l (mm): 50 | L (mm): 200 | ap max (mm): 16.5 | Weight (kg): 0.74
