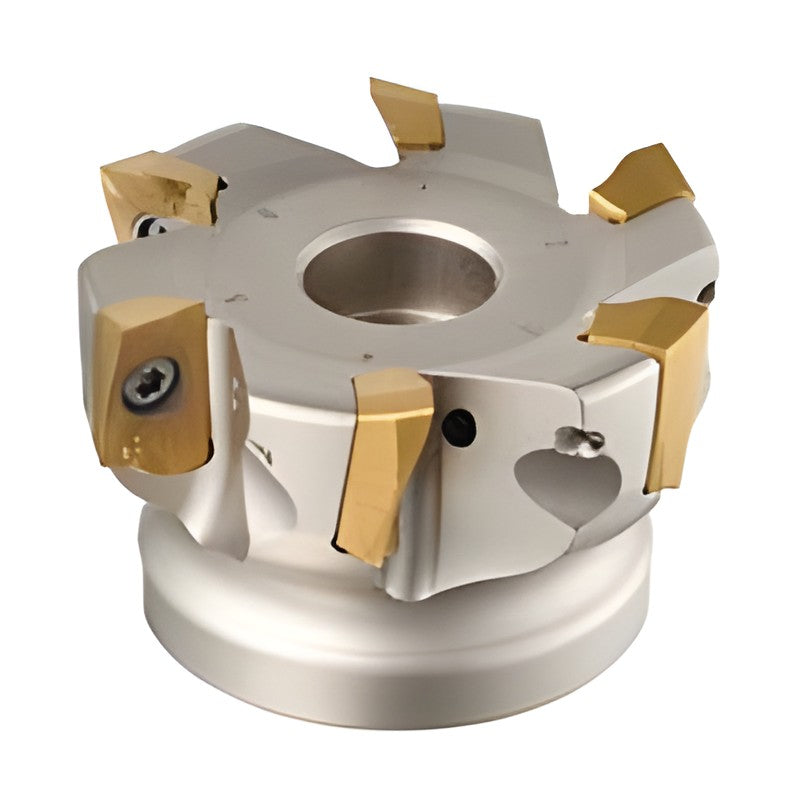

Korloy Alpha Mill-X Shell Mill AMXCM

Korloy Alpha Mill-X Shell Mill AMXCM

Milling tool for high productivity with good perpendicularity and minimized cutting load.

Key features

  • Superior perpendicularity and surface finish
  • High rake angle edge reduces cutting load and burr
  • Cutting speed and feed per tooth improved by about 15 percent
AMXCM040R-16-3-AD17 Teeth: 3 | D (mm): 40 | D2 (mm): 35 | d (mm): 16 | d1 (mm): 9 | ap max (mm): 16.5 | Weight (kg): 0.18 | d2 (mm): 14 | E (mm): 19 | F (mm): 40 | a (mm): 8.4 | b (mm): 5.6 | Stock: Yes
AMXCM040R-16-4-AD17 Teeth: 4 | D (mm): 40 | D2 (mm): 35 | d (mm): 16 | d1 (mm): 9 | ap max (mm): 16.5 | Weight (kg): 0.18 | d2 (mm): 14 | E (mm): 19 | F (mm): 40 | a (mm): 8.4 | b (mm): 5.6 | Stock: Yes
AMXCM050R-22-4-AD17 Teeth: 4 | D (mm): 50 | D2 (mm): 42 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 16.5 | Weight (kg): 0.23 | d2 (mm): 18 | E (mm): 20 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3 | Stock: Yes
AMXCM050R-22-5-AD17 Teeth: 5 | D (mm): 50 | D2 (mm): 42 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 16.5 | Weight (kg): 0.20 | d2 (mm): 18 | E (mm): 20 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3 | Stock: Yes
AMXCM063R-22-5-AD17 Teeth: 5 | D (mm): 63 | D2 (mm): 49 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 16.5 | Weight (kg): 0.44 | d2 (mm): 18 | E (mm): 20 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3 | Stock: Yes
AMXCM063R-22-6-AD17 Teeth: 6 | D (mm): 63 | D2 (mm): 49 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 16.5 | Weight (kg): 0.49 | d2 (mm): 18 | E (mm): 20 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3 | Stock: Yes
AMXCM080R-27-6-AD17 Teeth: 6 | D (mm): 80 | D2 (mm): 57 | d (mm): 27 | d1 (mm): 14 | ap max (mm): 16.5 | Weight (kg): 0.88 | d2 (mm): 25 | d3 (mm): 38 | E (mm): 23 | F (mm): 50 | a (mm): 12.4 | Stock: Yes
AMXCM080R-27-7-AD17 Teeth: 7 | D (mm): 80 | D2 (mm): 57 | d (mm): 27 | d1 (mm): 14 | ap max (mm): 16.5 | Weight (kg): 0.90 | d2 (mm): 25 | d3 (mm): 38 | E (mm): 23 | F (mm): 50 | a (mm): 12.4 | Stock: Yes
Milling CuttersKorloy
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Alpha Mill-X Shell Mill AMXCM

Brand Korloy·Milling Cutters

Available part numbers (8)

AMXCM040R-16-3-AD17, AMXCM040R-16-4-AD17, AMXCM050R-22-4-AD17, AMXCM050R-22-5-AD17, AMXCM063R-22-5-AD17, AMXCM063R-22-6-AD17, AMXCM080R-27-6-AD17, AMXCM080R-27-7-AD17

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AMXCM040R-16-3-AD17Teeth: 3 | D (mm): 40 | D2 (mm): 35 | d (mm): 16 | d1 (mm): 9 | ap max (mm): 16.5 | Weight (kg): 0.18 | d2 (mm): 14 | E (mm): 19 | F (mm): 40 | a (mm): 8.4 | b (mm): 5.6 | Stock: Yes
AMXCM040R-16-4-AD17Teeth: 4 | D (mm): 40 | D2 (mm): 35 | d (mm): 16 | d1 (mm): 9 | ap max (mm): 16.5 | Weight (kg): 0.18 | d2 (mm): 14 | E (mm): 19 | F (mm): 40 | a (mm): 8.4 | b (mm): 5.6 | Stock: Yes
AMXCM050R-22-4-AD17Teeth: 4 | D (mm): 50 | D2 (mm): 42 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 16.5 | Weight (kg): 0.23 | d2 (mm): 18 | E (mm): 20 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3 | Stock: Yes
AMXCM050R-22-5-AD17Teeth: 5 | D (mm): 50 | D2 (mm): 42 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 16.5 | Weight (kg): 0.20 | d2 (mm): 18 | E (mm): 20 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3 | Stock: Yes
AMXCM063R-22-5-AD17Teeth: 5 | D (mm): 63 | D2 (mm): 49 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 16.5 | Weight (kg): 0.44 | d2 (mm): 18 | E (mm): 20 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3 | Stock: Yes
AMXCM063R-22-6-AD17Teeth: 6 | D (mm): 63 | D2 (mm): 49 | d (mm): 22 | d1 (mm): 11 | ap max (mm): 16.5 | Weight (kg): 0.49 | d2 (mm): 18 | E (mm): 20 | F (mm): 40 | a (mm): 10.4 | b (mm): 6.3 | Stock: Yes
AMXCM080R-27-6-AD17Teeth: 6 | D (mm): 80 | D2 (mm): 57 | d (mm): 27 | d1 (mm): 14 | ap max (mm): 16.5 | Weight (kg): 0.88 | d2 (mm): 25 | d3 (mm): 38 | E (mm): 23 | F (mm): 50 | a (mm): 12.4 | Stock: Yes
AMXCM080R-27-7-AD17Teeth: 7 | D (mm): 80 | D2 (mm): 57 | d (mm): 27 | d1 (mm): 14 | ap max (mm): 16.5 | Weight (kg): 0.90 | d2 (mm): 25 | d3 (mm): 38 | E (mm): 23 | F (mm): 50 | a (mm): 12.4 | Stock: Yes
