Korloy Bead Removal Insert SNMG (External)

Korloy Bead Removal Insert SNMG (External)

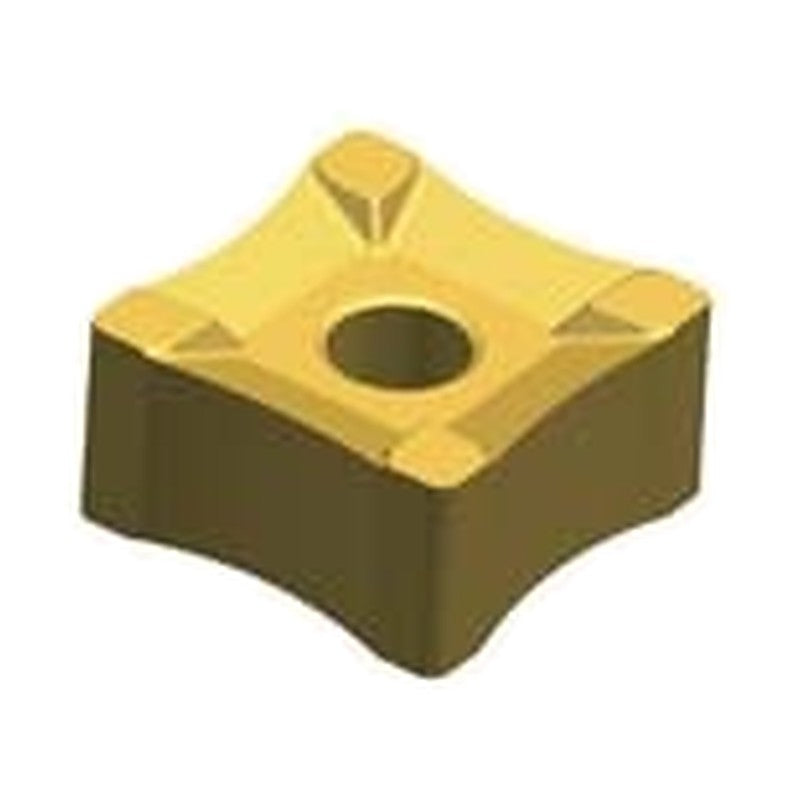

Square insert with radiused cutting edge for removing the outer weld bead of welded pipe.

Key features

  • External weld bead removal
  • Wide range of cutting edge radii (CEMR) to match pipe diameter

Specifications

Application External bead removal
SNMG150708-R07 IC (mm): 15.875 | S1 (mm): 8.15 | L (mm): 10 | CEMR (mm): 7 | D1 (mm): 5.16 | RE (mm): 0.8
SNMG150708-R09 IC (mm): 15.875 | S1 (mm): 8.15 | L (mm): 10 | CEMR (mm): 9 | D1 (mm): 5.16 | RE (mm): 0.8
SNMG150708-R10 IC (mm): 15.875 | S1 (mm): 8.15 | L (mm): 10 | CEMR (mm): 10 | D1 (mm): 5.16 | RE (mm): 0.8
SNMG150708-R12 IC (mm): 15.875 | S1 (mm): 8.15 | L (mm): 10 | CEMR (mm): 12 | D1 (mm): 5.16 | RE (mm): 0.8
SNMG150708-R27 IC (mm): 15.875 | S1 (mm): 8.15 | L (mm): 10 | CEMR (mm): 27 | D1 (mm): 5.16 | RE (mm): 0.8
SNMG150708-R45 IC (mm): 15.875 | S1 (mm): 8.15 | L (mm): 10 | CEMR (mm): 45 | D1 (mm): 5.16 | RE (mm): 0.8
SNMG150708-R50 IC (mm): 15.875 | S1 (mm): 8.15 | L (mm): 10 | CEMR (mm): 50 | D1 (mm): 5.16 | RE (mm): 0.8
SNMG150708-R55 IC (mm): 15.875 | S1 (mm): 8.15 | L (mm): 10 | CEMR (mm): 55 | D1 (mm): 5.16 | RE (mm): 0.8
SNMG150708-R60 IC (mm): 15.875 | S1 (mm): 8.15 | L (mm): 10 | CEMR (mm): 60 | D1 (mm): 5.16 | RE (mm): 0.8
SNMG150708-R65 IC (mm): 15.875 | S1 (mm): 8.15 | L (mm): 10 | CEMR (mm): 65 | D1 (mm): 5.16 | RE (mm): 0.8
SNMG150708-R70 IC (mm): 15.875 | S1 (mm): 8.15 | L (mm): 10 | CEMR (mm): 70 | D1 (mm): 5.16 | RE (mm): 0.8
SNMG150708-R75 IC (mm): 15.875 | S1 (mm): 8.15 | L (mm): 10 | CEMR (mm): 75 | D1 (mm): 5.16 | RE (mm): 0.8
SNMG150708-R80 IC (mm): 15.875 | S1 (mm): 8.15 | L (mm): 10 | CEMR (mm): 80 | D1 (mm): 5.16 | RE (mm): 0.8
SNMG150708-R90 IC (mm): 15.875 | S1 (mm): 8.15 | L (mm): 10 | CEMR (mm): 90 | D1 (mm): 5.16 | RE (mm): 0.8
SNMG150708-R100 IC (mm): 15.875 | S1 (mm): 8.15 | L (mm): 10 | CEMR (mm): 100 | D1 (mm): 5.16 | RE (mm): 0.8
SNMG190708-R09 IC (mm): 19.05 | S1 (mm): 8.35 | L (mm): 12 | CEMR (mm): 9 | D1 (mm): 8 | RE (mm): 0.8
SNMG190708-R11 IC (mm): 19.05 | S1 (mm): 8.35 | L (mm): 12 | CEMR (mm): 11 | D1 (mm): 8 | RE (mm): 0.8
SNMG190708-R13 IC (mm): 19.05 | S1 (mm): 8.35 | L (mm): 12 | CEMR (mm): 13 | D1 (mm): 8 | RE (mm): 0.8
SNMG190708-R17 IC (mm): 19.05 | S1 (mm): 8.35 | L (mm): 12 | CEMR (mm): 17 | D1 (mm): 8 | RE (mm): 0.8
SNMG190708-R22 IC (mm): 19.05 | S1 (mm): 8.35 | L (mm): 12 | CEMR (mm): 22 | D1 (mm): 8 | RE (mm): 0.8
SNMG190708-R50 IC (mm): 19.05 | S1 (mm): 8.35 | L (mm): 12 | CEMR (mm): 50 | D1 (mm): 8 | RE (mm): 0.8
SNMG190708-R70 IC (mm): 19.05 | S1 (mm): 8.35 | L (mm): 12 | CEMR (mm): 70 | D1 (mm): 8 | RE (mm): 0.8
SNMG190708-R75 IC (mm): 19.05 | S1 (mm): 8.35 | L (mm): 12 | CEMR (mm): 75 | D1 (mm): 8 | RE (mm): 0.8
SNMG190708-R85 IC (mm): 19.05 | S1 (mm): 8.35 | L (mm): 12 | CEMR (mm): 85 | D1 (mm): 8 | RE (mm): 0.8
SNMG190708-R90 IC (mm): 19.05 | S1 (mm): 8.35 | L (mm): 12 | CEMR (mm): 90 | D1 (mm): 8 | RE (mm): 0.8
Bead Removal InsertsKorloy
25 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Bead Removal Insert SNMG (External)

Brand Korloy·Bead Removal Inserts

Available part numbers (25)

SNMG150708-R07, SNMG150708-R09, SNMG150708-R10, SNMG150708-R12, SNMG150708-R27, SNMG150708-R45, SNMG150708-R50, SNMG150708-R55, SNMG150708-R60, SNMG150708-R65 + 15 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SNMG150708-R07IC (mm): 15.875 | S1 (mm): 8.15 | L (mm): 10 | CEMR (mm): 7 | D1 (mm): 5.16 | RE (mm): 0.8
SNMG150708-R09IC (mm): 15.875 | S1 (mm): 8.15 | L (mm): 10 | CEMR (mm): 9 | D1 (mm): 5.16 | RE (mm): 0.8
SNMG150708-R10IC (mm): 15.875 | S1 (mm): 8.15 | L (mm): 10 | CEMR (mm): 10 | D1 (mm): 5.16 | RE (mm): 0.8
SNMG150708-R12IC (mm): 15.875 | S1 (mm): 8.15 | L (mm): 10 | CEMR (mm): 12 | D1 (mm): 5.16 | RE (mm): 0.8
SNMG150708-R27IC (mm): 15.875 | S1 (mm): 8.15 | L (mm): 10 | CEMR (mm): 27 | D1 (mm): 5.16 | RE (mm): 0.8
SNMG150708-R45IC (mm): 15.875 | S1 (mm): 8.15 | L (mm): 10 | CEMR (mm): 45 | D1 (mm): 5.16 | RE (mm): 0.8
SNMG150708-R50IC (mm): 15.875 | S1 (mm): 8.15 | L (mm): 10 | CEMR (mm): 50 | D1 (mm): 5.16 | RE (mm): 0.8
SNMG150708-R55IC (mm): 15.875 | S1 (mm): 8.15 | L (mm): 10 | CEMR (mm): 55 | D1 (mm): 5.16 | RE (mm): 0.8
SNMG150708-R60IC (mm): 15.875 | S1 (mm): 8.15 | L (mm): 10 | CEMR (mm): 60 | D1 (mm): 5.16 | RE (mm): 0.8
SNMG150708-R65IC (mm): 15.875 | S1 (mm): 8.15 | L (mm): 10 | CEMR (mm): 65 | D1 (mm): 5.16 | RE (mm): 0.8
SNMG150708-R70IC (mm): 15.875 | S1 (mm): 8.15 | L (mm): 10 | CEMR (mm): 70 | D1 (mm): 5.16 | RE (mm): 0.8
SNMG150708-R75IC (mm): 15.875 | S1 (mm): 8.15 | L (mm): 10 | CEMR (mm): 75 | D1 (mm): 5.16 | RE (mm): 0.8
SNMG150708-R80IC (mm): 15.875 | S1 (mm): 8.15 | L (mm): 10 | CEMR (mm): 80 | D1 (mm): 5.16 | RE (mm): 0.8
SNMG150708-R90IC (mm): 15.875 | S1 (mm): 8.15 | L (mm): 10 | CEMR (mm): 90 | D1 (mm): 5.16 | RE (mm): 0.8
SNMG150708-R100IC (mm): 15.875 | S1 (mm): 8.15 | L (mm): 10 | CEMR (mm): 100 | D1 (mm): 5.16 | RE (mm): 0.8
SNMG190708-R09IC (mm): 19.05 | S1 (mm): 8.35 | L (mm): 12 | CEMR (mm): 9 | D1 (mm): 8 | RE (mm): 0.8
SNMG190708-R11IC (mm): 19.05 | S1 (mm): 8.35 | L (mm): 12 | CEMR (mm): 11 | D1 (mm): 8 | RE (mm): 0.8
SNMG190708-R13IC (mm): 19.05 | S1 (mm): 8.35 | L (mm): 12 | CEMR (mm): 13 | D1 (mm): 8 | RE (mm): 0.8
SNMG190708-R17IC (mm): 19.05 | S1 (mm): 8.35 | L (mm): 12 | CEMR (mm): 17 | D1 (mm): 8 | RE (mm): 0.8
SNMG190708-R22IC (mm): 19.05 | S1 (mm): 8.35 | L (mm): 12 | CEMR (mm): 22 | D1 (mm): 8 | RE (mm): 0.8
SNMG190708-R50IC (mm): 19.05 | S1 (mm): 8.35 | L (mm): 12 | CEMR (mm): 50 | D1 (mm): 8 | RE (mm): 0.8
SNMG190708-R70IC (mm): 19.05 | S1 (mm): 8.35 | L (mm): 12 | CEMR (mm): 70 | D1 (mm): 8 | RE (mm): 0.8
SNMG190708-R75IC (mm): 19.05 | S1 (mm): 8.35 | L (mm): 12 | CEMR (mm): 75 | D1 (mm): 8 | RE (mm): 0.8
SNMG190708-R85IC (mm): 19.05 | S1 (mm): 8.35 | L (mm): 12 | CEMR (mm): 85 | D1 (mm): 8 | RE (mm): 0.8
SNMG190708-R90IC (mm): 19.05 | S1 (mm): 8.35 | L (mm): 12 | CEMR (mm): 90 | D1 (mm): 8 | RE (mm): 0.8
