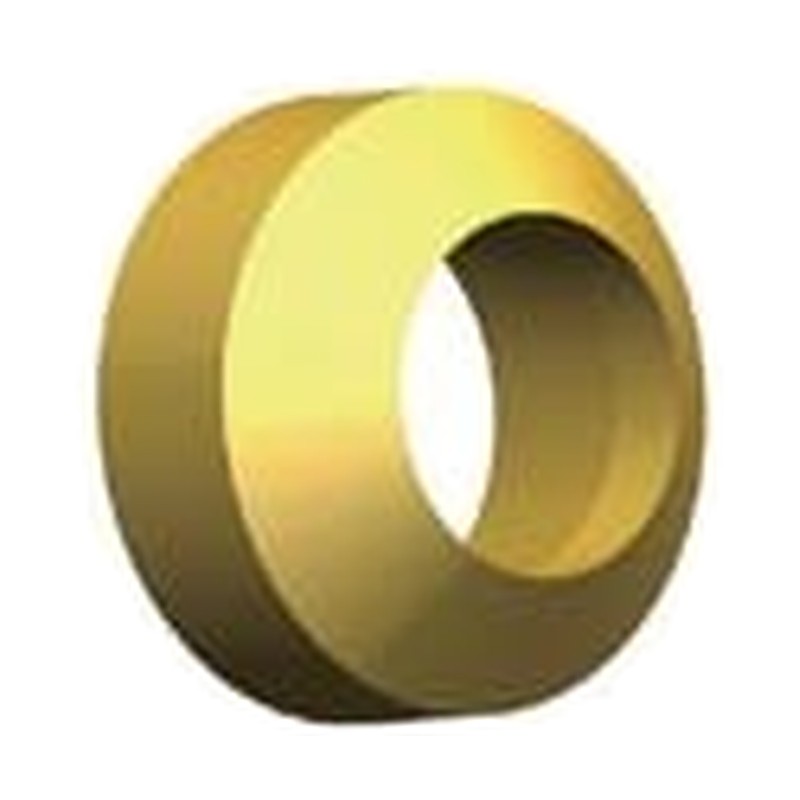

Korloy Bead Removal Ring AR (Internal)

Korloy Bead Removal Ring AR (Internal)

Ring-type insert for removing the inner weld bead of welded pipe.

Key features

  • Internal weld bead removal
  • Sizes from 4.5 to 56

Specifications

Application Internal bead removal
AR5.5 IC (mm): 10 | S (mm): 4.5 | D1 (mm): 5.5 | AN (deg): 42
AR5.7 IC (mm): 10 | S (mm): 4.5 | D1 (mm): 5.7 | AN (deg): 42
AR7.5 IC (mm): 13 | S (mm): 6 | D1 (mm): 6.5 | AN (deg): 42
AR8.5 IC (mm): 13 | S (mm): 6 | D1 (mm): 7.5 | AN (deg): 42
AR10 IC (mm): 19 | S (mm): 10 | D1 (mm): 9 | AN (deg): 42
AR10.5 IC (mm): 19 | S (mm): 10 | D1 (mm): 9.5 | AN (deg): 42
AR11.5 IC (mm): 19 | S (mm): 10 | D1 (mm): 10.5 | AN (deg): 42
AR4.5S IC (mm): 10 | S (mm): 4.5 | D1 (mm): 5 | AN (deg): 42
AR6.5S IC (mm): 10 | S (mm): 5 | D1 (mm): 5.5 | AN (deg): 48
AR9.5S IC (mm): 18.92 | S (mm): 10 | D1 (mm): 8.5 | AN (deg): 42
AR13S IC (mm): 19 | S (mm): 10 | D1 (mm): 12 | AN (deg): 42
AR16S IC (mm): 24 | S (mm): 12 | D1 (mm): 13.5 | AN (deg): 36
AR19S IC (mm): 30 | S (mm): 12 | D1 (mm): 17 | AN (deg): 40
AR25S IC (mm): 45 | S (mm): 15 | D1 (mm): 22 | AN (deg): 36
AR26S IC (mm): 45 | S (mm): 15 | D1 (mm): 23 | AN (deg): 36
AR27S IC (mm): 45 | S (mm): 15 | D1 (mm): 24 | AN (deg): 36
AR30S IC (mm): 50 | S (mm): 15 | D1 (mm): 28 | AN (deg): 36
AR34S IC (mm): 50 | S (mm): 16.7 | D1 (mm): 30 | AN (deg): 36
AR40S IC (mm): 55 | S (mm): 18 | D1 (mm): 36 | AN (deg): 36
AR50S IC (mm): 65 | S (mm): 20 | D1 (mm): 44 | AN (deg): 36
Bead Removal InsertsKorloy
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Bead Removal Ring AR (Internal)

Brand Korloy·Bead Removal Inserts

Available part numbers (20)

AR5.5, AR5.7, AR7.5, AR8.5, AR10, AR10.5, AR11.5, AR4.5S, AR6.5S, AR9.5S + 10 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AR5.5IC (mm): 10 | S (mm): 4.5 | D1 (mm): 5.5 | AN (deg): 42
AR5.7IC (mm): 10 | S (mm): 4.5 | D1 (mm): 5.7 | AN (deg): 42
AR7.5IC (mm): 13 | S (mm): 6 | D1 (mm): 6.5 | AN (deg): 42
AR8.5IC (mm): 13 | S (mm): 6 | D1 (mm): 7.5 | AN (deg): 42
AR10IC (mm): 19 | S (mm): 10 | D1 (mm): 9 | AN (deg): 42
AR10.5IC (mm): 19 | S (mm): 10 | D1 (mm): 9.5 | AN (deg): 42
AR11.5IC (mm): 19 | S (mm): 10 | D1 (mm): 10.5 | AN (deg): 42
AR4.5SIC (mm): 10 | S (mm): 4.5 | D1 (mm): 5 | AN (deg): 42
AR6.5SIC (mm): 10 | S (mm): 5 | D1 (mm): 5.5 | AN (deg): 48
AR9.5SIC (mm): 18.92 | S (mm): 10 | D1 (mm): 8.5 | AN (deg): 42
AR13SIC (mm): 19 | S (mm): 10 | D1 (mm): 12 | AN (deg): 42
AR16SIC (mm): 24 | S (mm): 12 | D1 (mm): 13.5 | AN (deg): 36
AR19SIC (mm): 30 | S (mm): 12 | D1 (mm): 17 | AN (deg): 40
AR25SIC (mm): 45 | S (mm): 15 | D1 (mm): 22 | AN (deg): 36
AR26SIC (mm): 45 | S (mm): 15 | D1 (mm): 23 | AN (deg): 36
AR27SIC (mm): 45 | S (mm): 15 | D1 (mm): 24 | AN (deg): 36
AR30SIC (mm): 50 | S (mm): 15 | D1 (mm): 28 | AN (deg): 36
AR34SIC (mm): 50 | S (mm): 16.7 | D1 (mm): 30 | AN (deg): 36
AR40SIC (mm): 55 | S (mm): 18 | D1 (mm): 36 | AN (deg): 36
AR50SIC (mm): 65 | S (mm): 20 | D1 (mm): 44 | AN (deg): 36
