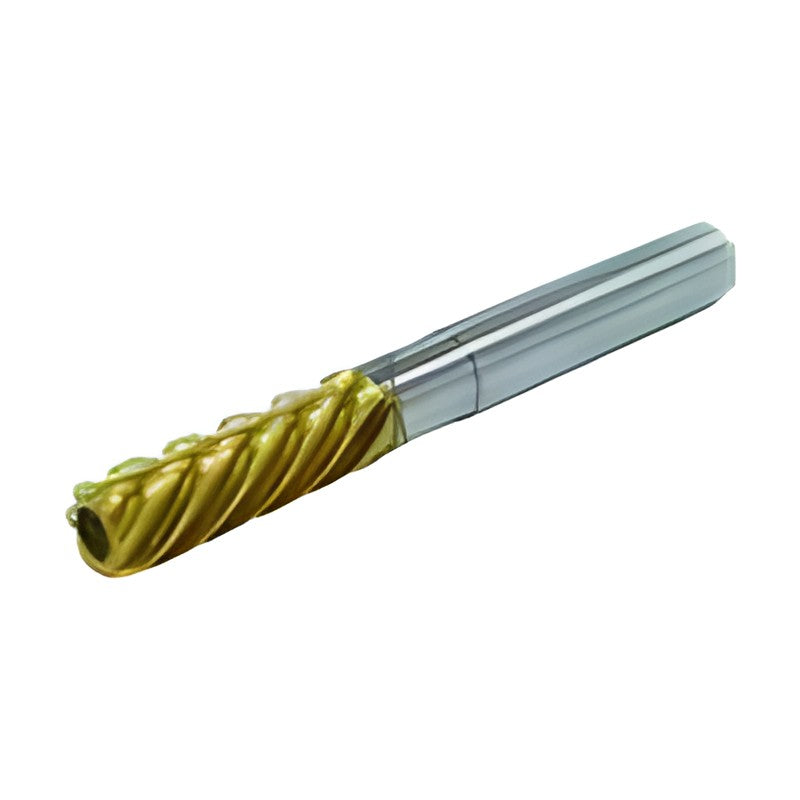

Korloy Broach Reamer HBRE

Korloy Broach Reamer HBRE

High helix (45 degree) broach reamer for high precision through-hole reaming, Ø3 to Ø25 mm.

Key features

  • 45 degree high helix angle
  • Superior surface roughness and precision
  • Strong cutting edge and chip evacuation
  • Solid and top solid types
HBRE030 No. of flutes: 3 | D (mm): 3.0 | Shank d (mm): 3.0 | l1 (mm): 20 | l2 (mm): 40 | L (mm): 70 | Type: Solid
HBRE040 No. of flutes: 3 | D (mm): 4.0 | Shank d (mm): 4.0 | l1 (mm): 25 | l2 (mm): 40 | L (mm): 70 | Type: Solid
HBRE060 No. of flutes: 4 | D (mm): 6.0 | Shank d (mm): 6.0 | l1 (mm): 30 | l2 (mm): 50 | L (mm): 80 | Type: Solid
HBRE080 No. of flutes: 4 | D (mm): 8.0 | Shank d (mm): 8.0 | l1 (mm): 30 | l2 (mm): 60 | L (mm): 100 | Type: Solid
HBRE100 No. of flutes: 4 | D (mm): 10.0 | Shank d (mm): 10.0 | l1 (mm): 30 | l2 (mm): 60 | L (mm): 100 | Type: Solid
HBRE120 No. of flutes: 4 | D (mm): 12.0 | Shank d (mm): 12.0 | l1 (mm): 40 | l2 (mm): 70 | L (mm): 120 | Type: Top Solid
HBRE160 No. of flutes: 6 | D (mm): 16.0 | Shank d (mm): 16.0 | l1 (mm): 40 | l2 (mm): 80 | L (mm): 130 | Type: Top Solid
HBRE200 No. of flutes: 6 | D (mm): 20.0 | Shank d (mm): 20.0 | l1 (mm): 50 | l2 (mm): 90 | L (mm): 150 | Type: Top Solid
HBRE250 No. of flutes: 6 | D (mm): 25.0 | Shank d (mm): 25.0 | l1 (mm): 50 | l2 (mm): 90 | L (mm): 150 | Type: Top Solid
ReamersKorloy
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Broach Reamer HBRE

Brand Korloy·Reamers

Available part numbers (9)

HBRE030, HBRE040, HBRE060, HBRE080, HBRE100, HBRE120, HBRE160, HBRE200, HBRE250

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HBRE030No. of flutes: 3 | D (mm): 3.0 | Shank d (mm): 3.0 | l1 (mm): 20 | l2 (mm): 40 | L (mm): 70 | Type: Solid
HBRE040No. of flutes: 3 | D (mm): 4.0 | Shank d (mm): 4.0 | l1 (mm): 25 | l2 (mm): 40 | L (mm): 70 | Type: Solid
HBRE060No. of flutes: 4 | D (mm): 6.0 | Shank d (mm): 6.0 | l1 (mm): 30 | l2 (mm): 50 | L (mm): 80 | Type: Solid
HBRE080No. of flutes: 4 | D (mm): 8.0 | Shank d (mm): 8.0 | l1 (mm): 30 | l2 (mm): 60 | L (mm): 100 | Type: Solid
HBRE100No. of flutes: 4 | D (mm): 10.0 | Shank d (mm): 10.0 | l1 (mm): 30 | l2 (mm): 60 | L (mm): 100 | Type: Solid
HBRE120No. of flutes: 4 | D (mm): 12.0 | Shank d (mm): 12.0 | l1 (mm): 40 | l2 (mm): 70 | L (mm): 120 | Type: Top Solid
HBRE160No. of flutes: 6 | D (mm): 16.0 | Shank d (mm): 16.0 | l1 (mm): 40 | l2 (mm): 80 | L (mm): 130 | Type: Top Solid
HBRE200No. of flutes: 6 | D (mm): 20.0 | Shank d (mm): 20.0 | l1 (mm): 50 | l2 (mm): 90 | L (mm): 150 | Type: Top Solid
HBRE250No. of flutes: 6 | D (mm): 25.0 | Shank d (mm): 25.0 | l1 (mm): 50 | l2 (mm): 90 | L (mm): 150 | Type: Top Solid
