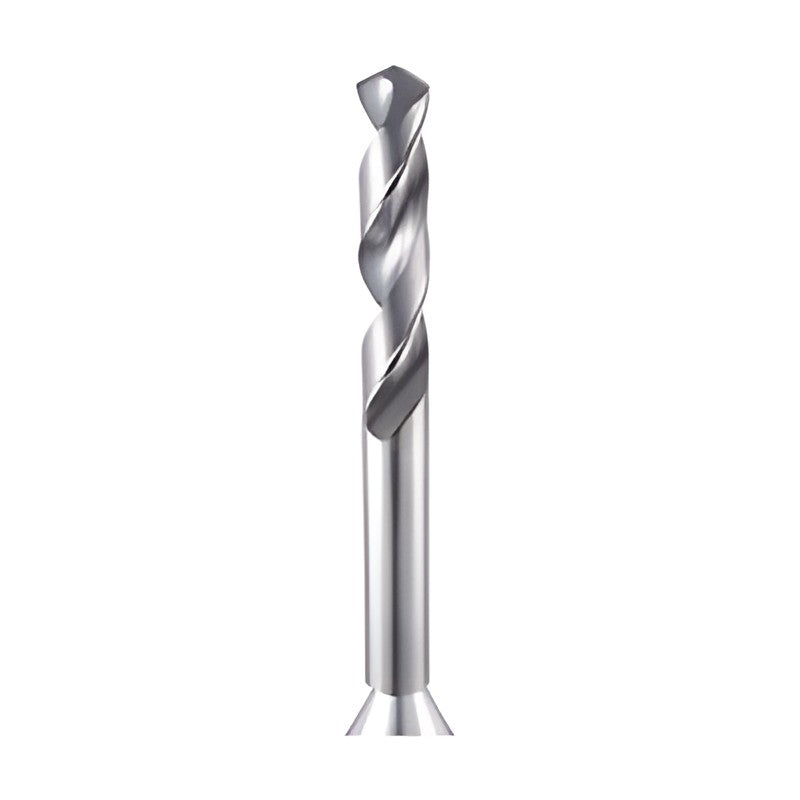

Korloy Carbide Solid Spiral Drill for Non-Ferrous Metals SSD-N

Korloy Carbide Solid Spiral Drill for Non-Ferrous Metals SSD-N

Uncoated carbide solid drill for non-ferrous metals and mild steel machining.

Specifications

Point angle 118°
Twist angle 30°
Thinning X type
Coolant External
Shank tolerance h8
SSD010-N D (mm): 1.0 | Shank d (mm): 1.0 | Flute length (mm): 10 | L (mm): 38
SSD011-N D (mm): 1.1 | Shank d (mm): 1.1 | Flute length (mm): 10 | L (mm): 38
SSD012-N D (mm): 1.2 | Shank d (mm): 1.2 | Flute length (mm): 10 | L (mm): 38
SSD013-N D (mm): 1.3 | Shank d (mm): 1.3 | Flute length (mm): 13 | L (mm): 38
SSD014-N D (mm): 1.4 | Shank d (mm): 1.4 | Flute length (mm): 13 | L (mm): 38
SSD015-N D (mm): 1.5 | Shank d (mm): 1.5 | Flute length (mm): 13 | L (mm): 38
SSD016-N D (mm): 1.6 | Shank d (mm): 1.6 | Flute length (mm): 13 | L (mm): 38
SSD017-N D (mm): 1.7 | Shank d (mm): 1.7 | Flute length (mm): 13 | L (mm): 38
SSD018-N D (mm): 1.8 | Shank d (mm): 1.8 | Flute length (mm): 13 | L (mm): 38
SSD019-N D (mm): 1.9 | Shank d (mm): 1.9 | Flute length (mm): 13 | L (mm): 38
SSD020-N D (mm): 2.0 | Shank d (mm): 2.0 | Flute length (mm): 16 | L (mm): 45
SSD021-N D (mm): 2.1 | Shank d (mm): 2.1 | Flute length (mm): 16 | L (mm): 45
SSD022-N D (mm): 2.2 | Shank d (mm): 2.2 | Flute length (mm): 16 | L (mm): 45
SSD023-N D (mm): 2.3 | Shank d (mm): 2.3 | Flute length (mm): 16 | L (mm): 45
SSD024-N D (mm): 2.4 | Shank d (mm): 2.4 | Flute length (mm): 18 | L (mm): 50
SSD025-N D (mm): 2.5 | Shank d (mm): 2.5 | Flute length (mm): 20 | L (mm): 50
SSD026-N D (mm): 2.6 | Shank d (mm): 2.6 | Flute length (mm): 20 | L (mm): 50
SSD027-N D (mm): 2.7 | Shank d (mm): 2.7 | Flute length (mm): 22 | L (mm): 50
SSD028-N D (mm): 2.8 | Shank d (mm): 2.8 | Flute length (mm): 22 | L (mm): 50
SSD029-N D (mm): 2.9 | Shank d (mm): 2.9 | Flute length (mm): 22 | L (mm): 50
SSD030-N D (mm): 3.0 | Shank d (mm): 3.0 | Flute length (mm): 22 | L (mm): 50
SSD031-N D (mm): 3.1 | Shank d (mm): 3.1 | Flute length (mm): 25 | L (mm): 50
SSD032-N D (mm): 3.2 | Shank d (mm): 3.2 | Flute length (mm): 25 | L (mm): 50
SSD033-N D (mm): 3.3 | Shank d (mm): 3.3 | Flute length (mm): 25 | L (mm): 50
SSD034-N D (mm): 3.4 | Shank d (mm): 3.4 | Flute length (mm): 25 | L (mm): 50
SSD035-N D (mm): 3.5 | Shank d (mm): 3.5 | Flute length (mm): 25 | L (mm): 50
SSD036-N D (mm): 3.6 | Shank d (mm): 3.6 | Flute length (mm): 28 | L (mm): 55
SSD037-N D (mm): 3.7 | Shank d (mm): 3.7 | Flute length (mm): 28 | L (mm): 55
SSD038-N D (mm): 3.8 | Shank d (mm): 3.8 | Flute length (mm): 28 | L (mm): 55
SSD039-N D (mm): 3.9 | Shank d (mm): 3.9 | Flute length (mm): 28 | L (mm): 55
SSD040-N D (mm): 4.0 | Shank d (mm): 4.0 | Flute length (mm): 28 | L (mm): 55
SSD041-N D (mm): 4.1 | Shank d (mm): 4.1 | Flute length (mm): 30 | L (mm): 60
SSD042-N D (mm): 4.2 | Shank d (mm): 4.2 | Flute length (mm): 30 | L (mm): 60
SSD043-N D (mm): 4.3 | Shank d (mm): 4.3 | Flute length (mm): 30 | L (mm): 60
SSD044-N D (mm): 4.4 | Shank d (mm): 4.4 | Flute length (mm): 30 | L (mm): 60
SSD045-N D (mm): 4.5 | Shank d (mm): 4.5 | Flute length (mm): 30 | L (mm): 60
SSD046-N D (mm): 4.6 | Shank d (mm): 4.6 | Flute length (mm): 33 | L (mm): 65
SSD047-N D (mm): 4.7 | Shank d (mm): 4.7 | Flute length (mm): 33 | L (mm): 65
SSD048-N D (mm): 4.8 | Shank d (mm): 4.8 | Flute length (mm): 35 | L (mm): 65
SSD049-N D (mm): 4.9 | Shank d (mm): 4.9 | Flute length (mm): 35 | L (mm): 65
SSD050-N D (mm): 5.0 | Shank d (mm): 5.0 | Flute length (mm): 35 | L (mm): 65
SSD051-N D (mm): 5.1 | Shank d (mm): 5.1 | Flute length (mm): 35 | L (mm): 65
SSD052-N D (mm): 5.2 | Shank d (mm): 5.2 | Flute length (mm): 35 | L (mm): 65
SSD053-N D (mm): 5.3 | Shank d (mm): 5.3 | Flute length (mm): 35 | L (mm): 65
SSD054-N D (mm): 5.4 | Shank d (mm): 5.4 | Flute length (mm): 35 | L (mm): 65
SSD055-N D (mm): 5.5 | Shank d (mm): 5.5 | Flute length (mm): 35 | L (mm): 65
SSD056-N D (mm): 5.6 | Shank d (mm): 5.6 | Flute length (mm): 38 | L (mm): 75
SSD057-N D (mm): 5.7 | Shank d (mm): 5.7 | Flute length (mm): 38 | L (mm): 75
SSD058-N D (mm): 5.8 | Shank d (mm): 5.8 | Flute length (mm): 38 | L (mm): 75
SSD059-N D (mm): 5.9 | Shank d (mm): 5.9 | Flute length (mm): 38 | L (mm): 75
SSD060-N D (mm): 6.0 | Shank d (mm): 6.0 | Flute length (mm): 38 | L (mm): 75
SSD061-N D (mm): 6.1 | Shank d (mm): 6.1 | Flute length (mm): 38 | L (mm): 75
SSD062-N D (mm): 6.2 | Shank d (mm): 6.2 | Flute length (mm): 38 | L (mm): 75
SSD063-N D (mm): 6.3 | Shank d (mm): 6.3 | Flute length (mm): 38 | L (mm): 75
SSD064-N D (mm): 6.4 | Shank d (mm): 6.4 | Flute length (mm): 38 | L (mm): 75
SSD065-N D (mm): 6.5 | Shank d (mm): 6.5 | Flute length (mm): 38 | L (mm): 75
SSD066-N D (mm): 6.6 | Shank d (mm): 6.6 | Flute length (mm): 45 | L (mm): 80
SSD067-N D (mm): 6.7 | Shank d (mm): 6.7 | Flute length (mm): 45 | L (mm): 80
SSD068-N D (mm): 6.8 | Shank d (mm): 6.8 | Flute length (mm): 45 | L (mm): 80
SSD069-N D (mm): 6.9 | Shank d (mm): 6.9 | Flute length (mm): 45 | L (mm): 80
SSD070-N D (mm): 7.0 | Shank d (mm): 7.0 | Flute length (mm): 45 | L (mm): 80
SSD071-N D (mm): 7.1 | Shank d (mm): 7.1 | Flute length (mm): 45 | L (mm): 80
SSD072-N D (mm): 7.2 | Shank d (mm): 7.2 | Flute length (mm): 45 | L (mm): 80
SSD073-N D (mm): 7.3 | Shank d (mm): 7.3 | Flute length (mm): 45 | L (mm): 80
SSD074-N D (mm): 7.4 | Shank d (mm): 7.4 | Flute length (mm): 45 | L (mm): 80
SSD075-N D (mm): 7.5 | Shank d (mm): 7.5 | Flute length (mm): 45 | L (mm): 80
SSD076-N D (mm): 7.6 | Shank d (mm): 7.6 | Flute length (mm): 50 | L (mm): 85
SSD077-N D (mm): 7.7 | Shank d (mm): 7.7 | Flute length (mm): 50 | L (mm): 85
SSD078-N D (mm): 7.8 | Shank d (mm): 7.8 | Flute length (mm): 50 | L (mm): 85
SSD079-N D (mm): 7.9 | Shank d (mm): 7.9 | Flute length (mm): 50 | L (mm): 85
SSD080-N D (mm): 8.0 | Shank d (mm): 8.0 | Flute length (mm): 50 | L (mm): 85
SSD081-N D (mm): 8.1 | Shank d (mm): 8.1 | Flute length (mm): 50 | L (mm): 85
SSD082-N D (mm): 8.2 | Shank d (mm): 8.2 | Flute length (mm): 50 | L (mm): 85
SSD083-N D (mm): 8.3 | Shank d (mm): 8.3 | Flute length (mm): 50 | L (mm): 85
SSD084-N D (mm): 8.4 | Shank d (mm): 8.4 | Flute length (mm): 50 | L (mm): 85
SSD085-N D (mm): 8.5 | Shank d (mm): 8.5 | Flute length (mm): 50 | L (mm): 85
SSD086-N D (mm): 8.6 | Shank d (mm): 8.6 | Flute length (mm): 50 | L (mm): 95
SSD087-N D (mm): 8.7 | Shank d (mm): 8.7 | Flute length (mm): 50 | L (mm): 95
SSD088-N D (mm): 8.8 | Shank d (mm): 8.8 | Flute length (mm): 50 | L (mm): 95
SSD089-N D (mm): 8.9 | Shank d (mm): 8.9 | Flute length (mm): 50 | L (mm): 95
SSD090-N D (mm): 9.0 | Shank d (mm): 9.0 | Flute length (mm): 50 | L (mm): 95
SSD091-N D (mm): 9.1 | Shank d (mm): 9.1 | Flute length (mm): 50 | L (mm): 95
SSD092-N D (mm): 9.2 | Shank d (mm): 9.2 | Flute length (mm): 50 | L (mm): 95
SSD093-N D (mm): 9.3 | Shank d (mm): 9.3 | Flute length (mm): 50 | L (mm): 95
SSD094-N D (mm): 9.4 | Shank d (mm): 9.4 | Flute length (mm): 50 | L (mm): 95
SSD095-N D (mm): 9.5 | Shank d (mm): 9.5 | Flute length (mm): 50 | L (mm): 95
SSD096-N D (mm): 9.6 | Shank d (mm): 9.6 | Flute length (mm): 50 | L (mm): 95
SSD097-N D (mm): 9.7 | Shank d (mm): 9.7 | Flute length (mm): 50 | L (mm): 95
SSD098-N D (mm): 9.8 | Shank d (mm): 9.8 | Flute length (mm): 50 | L (mm): 95
SSD099-N D (mm): 9.9 | Shank d (mm): 9.9 | Flute length (mm): 55 | L (mm): 100
SSD100-N D (mm): 10.0 | Shank d (mm): 10.0 | Flute length (mm): 55 | L (mm): 100
SSD101-N D (mm): 10.1 | Shank d (mm): 10.1 | Flute length (mm): 55 | L (mm): 115
SSD102-N D (mm): 10.2 | Shank d (mm): 10.2 | Flute length (mm): 55 | L (mm): 115
SSD103-N D (mm): 10.3 | Shank d (mm): 10.3 | Flute length (mm): 55 | L (mm): 115
SSD104-N D (mm): 10.4 | Shank d (mm): 10.4 | Flute length (mm): 55 | L (mm): 115
SSD105-N D (mm): 10.5 | Shank d (mm): 10.5 | Flute length (mm): 55 | L (mm): 115
SSD106-N D (mm): 10.6 | Shank d (mm): 10.6 | Flute length (mm): 60 | L (mm): 115
SSD107-N D (mm): 10.7 | Shank d (mm): 10.7 | Flute length (mm): 60 | L (mm): 115
SSD108-N D (mm): 10.8 | Shank d (mm): 10.8 | Flute length (mm): 60 | L (mm): 115
SSD109-N D (mm): 10.9 | Shank d (mm): 10.9 | Flute length (mm): 60 | L (mm): 115
SSD110-N D (mm): 11.0 | Shank d (mm): 11.0 | Flute length (mm): 60 | L (mm): 115
SSD111-N D (mm): 11.1 | Shank d (mm): 11.1 | Flute length (mm): 65 | L (mm): 120
SSD112-N D (mm): 11.2 | Shank d (mm): 11.2 | Flute length (mm): 65 | L (mm): 120
SSD113-N D (mm): 11.3 | Shank d (mm): 11.3 | Flute length (mm): 65 | L (mm): 120
SSD115-N D (mm): 11.5 | Shank d (mm): 11.5 | Flute length (mm): 65 | L (mm): 120
SSD118-N D (mm): 11.8 | Shank d (mm): 11.8 | Flute length (mm): 65 | L (mm): 120
SSD119-N D (mm): 11.9 | Shank d (mm): 11.9 | Flute length (mm): 65 | L (mm): 120
SSD120-N D (mm): 12.0 | Shank d (mm): 12.0 | Flute length (mm): 65 | L (mm): 120
SSD124-N D (mm): 12.4 | Shank d (mm): 12.4 | Flute length (mm): 70 | L (mm): 125
SSD125-N D (mm): 12.5 | Shank d (mm): 12.5 | Flute length (mm): 70 | L (mm): 125
SSD130-N D (mm): 13.0 | Shank d (mm): 13.0 | Flute length (mm): 75 | L (mm): 130
