• Korloy Center Drill for WPDC Indexable Drill
1 1

Korloy Center Drill for WPDC Indexable Drill

Korloy Center Drill for WPDC Indexable Drill

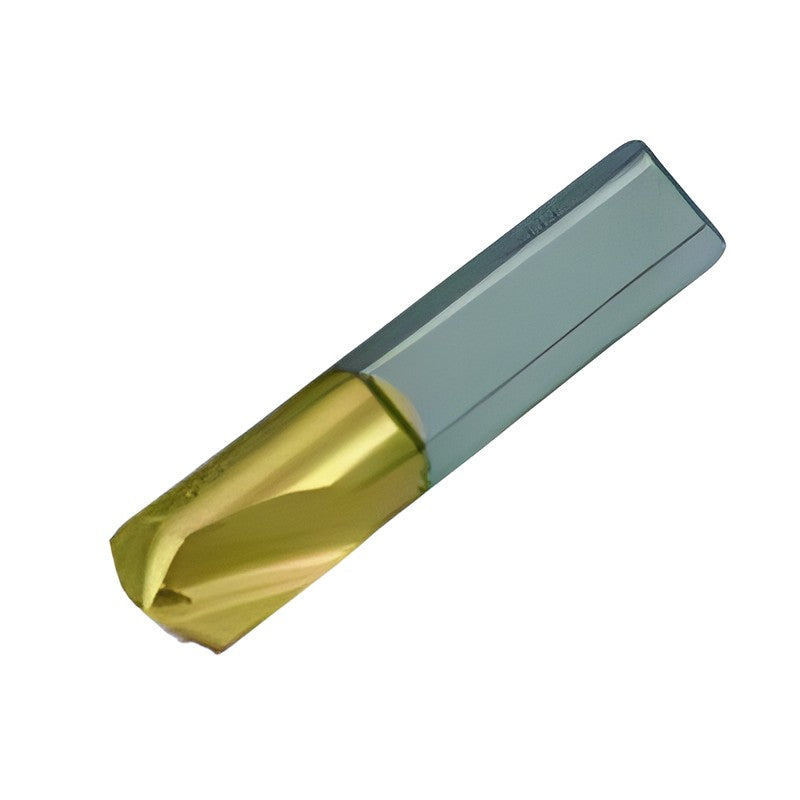

Replaceable center drill fitted in the center of WPDC cartridge-type indexable drills, height adjustable with a cone point bolt.

Key features

  • Height adjustable with cone point bolt
  • Replaceable if broken
  • CDH types with oil hole

Specifications

Grade PC40H
CD0630 Diameter D (mm): 6 | L (mm): 30 | Grade: PC40H | Oil hole: No | For: WPDC indexable drills
CD0835 Diameter D (mm): 8 | L (mm): 35 | Grade: PC40H | Oil hole: No | For: WPDC indexable drills
CDH1035 Diameter D (mm): 10 | L (mm): 35 | Grade: PC40H | Oil hole: Yes | For: WPDC indexable drills
CDH1238 Diameter D (mm): 12 | L (mm): 38 | Grade: PC40H | Oil hole: Yes | For: WPDC indexable drills
CDH1645 Diameter D (mm): 16 | L (mm): 45 | Grade: PC40H | Oil hole: Yes | For: WPDC indexable drills
DrillsKorloy
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Center Drill for WPDC Indexable Drill

Brand Korloy·Drills

Available part numbers (5)

CD0630, CD0835, CDH1035, CDH1238, CDH1645

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CD0630Diameter D (mm): 6 | L (mm): 30 | Grade: PC40H | Oil hole: No | For: WPDC indexable drills
CD0835Diameter D (mm): 8 | L (mm): 35 | Grade: PC40H | Oil hole: No | For: WPDC indexable drills
CDH1035Diameter D (mm): 10 | L (mm): 35 | Grade: PC40H | Oil hole: Yes | For: WPDC indexable drills
CDH1238Diameter D (mm): 12 | L (mm): 38 | Grade: PC40H | Oil hole: Yes | For: WPDC indexable drills
CDH1645Diameter D (mm): 16 | L (mm): 45 | Grade: PC40H | Oil hole: Yes | For: WPDC indexable drills

Need a different model, or a part not listed here? Send us your parts list →
