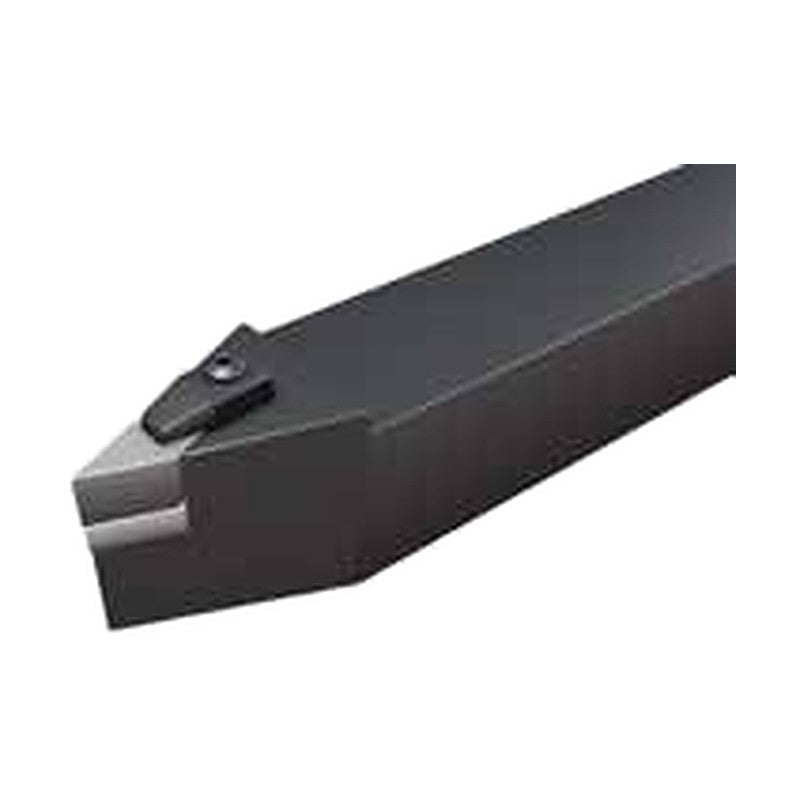

Korloy Ceramic Insert Turning Holder CVVN

Korloy Ceramic Insert Turning Holder CVVN

External turning toolholder with top clamp and shim for VNGX ceramic inserts, 72.5° angle.

Key features

  • Shank sizes: 2525, 3225
  • Fits inserts: VNGX1607

Specifications

Holder type External toolholder
Approach angle (drawing) 72.5°
CVVNN2525M16-X7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 45 | S (mm): 12.5 | Insert: VNGX1607 | Clamp & clamp screw: SM4 | Shim: SHVN3A | Shim screw: TM412 | Wrench: LW4
CVVNN3225P16-X7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 45 | S (mm): 12.5 | Insert: VNGX1607 | Clamp & clamp screw: SM4 | Shim: SHVN3A | Shim screw: TM412 | Wrench: LW4
Turning HoldersKorloy
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Insert Turning Holder CVVN

Brand Korloy·Turning Holders

Available part numbers (2)

CVVNN2525M16-X7, CVVNN3225P16-X7

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CVVNN2525M16-X7H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 45 | S (mm): 12.5 | Insert: VNGX1607 | Clamp & clamp screw: SM4 | Shim: SHVN3A | Shim screw: TM412 | Wrench: LW4
CVVNN3225P16-X7H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 45 | S (mm): 12.5 | Insert: VNGX1607 | Clamp & clamp screw: SM4 | Shim: SHVN3A | Shim screw: TM412 | Wrench: LW4
