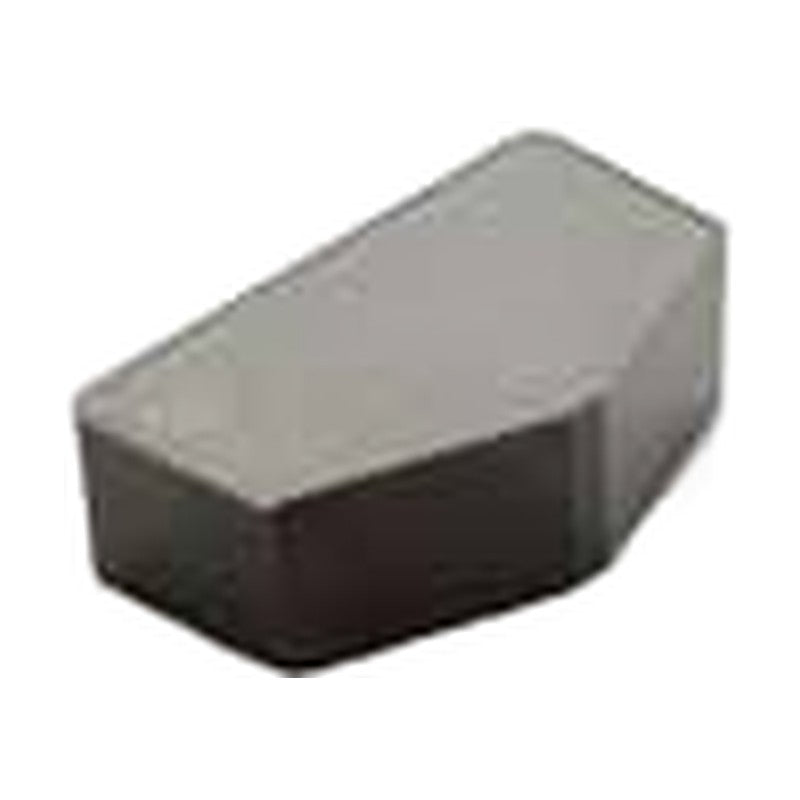

Korloy Ceramic Roll Turning Insert F-Series (F10537, F13941)

Korloy Ceramic Roll Turning Insert F-Series (F10537, F13941)

Ceramic roll-turning insert F-Series (F10537, F13941), for hardened steel and cast iron.

Key features

  • Grades offered: CAT10, CAT30, CA20, CSN20, CSN30
  • Al2O3+TiC(N) mixed ceramic grades for hardened steel and cast iron
  • Al2O3+ZrO2 grades for finishing and semi-finishing cast iron and steel
  • Si3N4 grades for roughing and high-speed machining of cast iron

Specifications

Material class Ceramic
Units mm
F13941 CAT10 L (mm): 32.00 | W (mm): 19.05 | S (mm): 12.00 | D1 (mm): 6.50 | H (mm): 6.00 | Angle: 120° | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
F13941 CAT30 L (mm): 32.00 | W (mm): 19.05 | S (mm): 12.00 | D1 (mm): 6.50 | H (mm): 6.00 | Angle: 120° | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
F13941 CA20 L (mm): 32.00 | W (mm): 19.05 | S (mm): 12.00 | D1 (mm): 6.50 | H (mm): 6.00 | Angle: 120° | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
F13941 CSN20 L (mm): 32.00 | W (mm): 19.05 | S (mm): 12.00 | D1 (mm): 6.50 | H (mm): 6.00 | Angle: 120° | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
F13941 CSN30 L (mm): 32.00 | W (mm): 19.05 | S (mm): 12.00 | D1 (mm): 6.50 | H (mm): 6.00 | Angle: 120° | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
F10537 CAT10 L (mm): 44.50 | W (mm): 25.40 | S (mm): 14.20 | D1 (mm): 6.50 | H (mm): 7.00 | Angle: 120° | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
F10537 CAT30 L (mm): 44.50 | W (mm): 25.40 | S (mm): 14.20 | D1 (mm): 6.50 | H (mm): 7.00 | Angle: 120° | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
F10537 CA20 L (mm): 44.50 | W (mm): 25.40 | S (mm): 14.20 | D1 (mm): 6.50 | H (mm): 7.00 | Angle: 120° | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
F10537 CSN20 L (mm): 44.50 | W (mm): 25.40 | S (mm): 14.20 | D1 (mm): 6.50 | H (mm): 7.00 | Angle: 120° | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
F10537 CSN30 L (mm): 44.50 | W (mm): 25.40 | S (mm): 14.20 | D1 (mm): 6.50 | H (mm): 7.00 | Angle: 120° | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
Turning InsertsKorloy
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Roll Turning Insert F-Series (F10537, F13941)

Brand Korloy·Turning Inserts

Available part numbers (10)

F13941 CAT10, F13941 CAT30, F13941 CA20, F13941 CSN20, F13941 CSN30, F10537 CAT10, F10537 CAT30, F10537 CA20, F10537 CSN20, F10537 CSN30

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
F13941 CAT10L (mm): 32.00 | W (mm): 19.05 | S (mm): 12.00 | D1 (mm): 6.50 | H (mm): 6.00 | Angle: 120° | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
F13941 CAT30L (mm): 32.00 | W (mm): 19.05 | S (mm): 12.00 | D1 (mm): 6.50 | H (mm): 6.00 | Angle: 120° | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
F13941 CA20L (mm): 32.00 | W (mm): 19.05 | S (mm): 12.00 | D1 (mm): 6.50 | H (mm): 6.00 | Angle: 120° | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
F13941 CSN20L (mm): 32.00 | W (mm): 19.05 | S (mm): 12.00 | D1 (mm): 6.50 | H (mm): 6.00 | Angle: 120° | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
F13941 CSN30L (mm): 32.00 | W (mm): 19.05 | S (mm): 12.00 | D1 (mm): 6.50 | H (mm): 6.00 | Angle: 120° | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
F10537 CAT10L (mm): 44.50 | W (mm): 25.40 | S (mm): 14.20 | D1 (mm): 6.50 | H (mm): 7.00 | Angle: 120° | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
F10537 CAT30L (mm): 44.50 | W (mm): 25.40 | S (mm): 14.20 | D1 (mm): 6.50 | H (mm): 7.00 | Angle: 120° | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
F10537 CA20L (mm): 44.50 | W (mm): 25.40 | S (mm): 14.20 | D1 (mm): 6.50 | H (mm): 7.00 | Angle: 120° | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
F10537 CSN20L (mm): 44.50 | W (mm): 25.40 | S (mm): 14.20 | D1 (mm): 6.50 | H (mm): 7.00 | Angle: 120° | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
F10537 CSN30L (mm): 44.50 | W (mm): 25.40 | S (mm): 14.20 | D1 (mm): 6.50 | H (mm): 7.00 | Angle: 120° | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
