• Korloy Ceramic Roll Turning Insert WFP
1 1

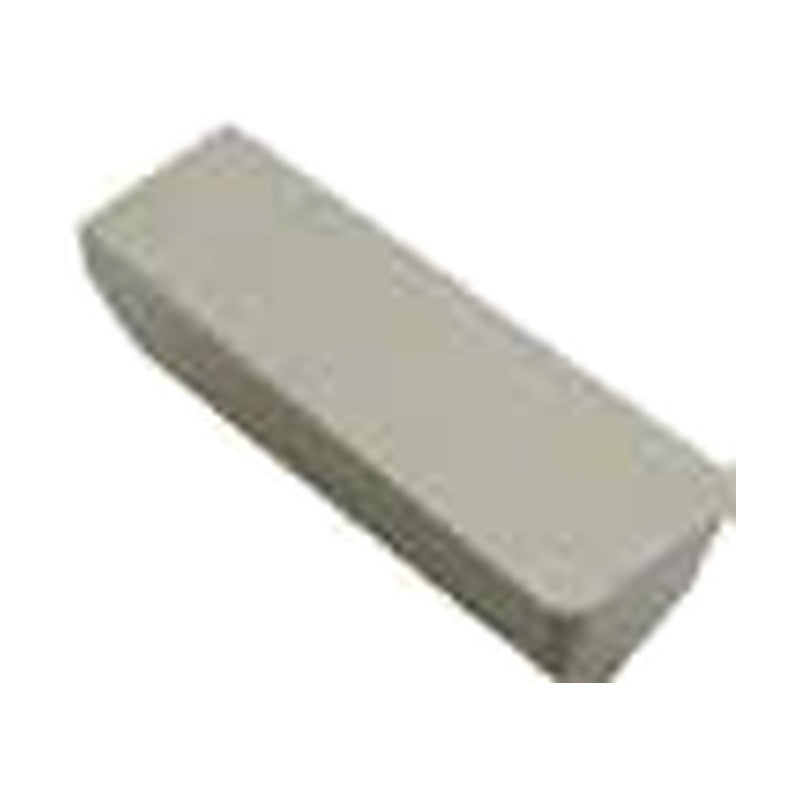

Korloy Ceramic Roll Turning Insert WFP

Korloy Ceramic Roll Turning Insert WFP

Ceramic roll-turning insert WFP, for heat-resistant alloys.

Key features

  • Grades offered: CW40, CW80
  • SiC whisker-reinforced grades for nickel- and cobalt-based alloys

Specifications

Material class Ceramic
Units mm
WFP094050-A CW80 L (mm): 12.70 | W (mm): 2.388 | S (mm): 4.75 | RE (mm): 0.40 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP125050-A CW80 L (mm): 12.70 | W (mm): 3.175 | S (mm): 4.75 | RE (mm): 0.40 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP125050-B CW80 L (mm): 12.70 | W (mm): 3.175 | S (mm): 4.75 | RE (mm): 0.80 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP156050-A CW80 L (mm): 12.70 | W (mm): 3.962 | S (mm): 4.75 | RE (mm): 0.40 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP156050-B CW80 L (mm): 12.70 | W (mm): 3.962 | S (mm): 4.75 | RE (mm): 0.80 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP187050-A CW40 L (mm): 12.70 | W (mm): 4.750 | S (mm): 4.75 | RE (mm): 0.40 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP187050-A CW80 L (mm): 12.70 | W (mm): 4.750 | S (mm): 4.75 | RE (mm): 0.40 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP187050-B CW40 L (mm): 12.70 | W (mm): 4.750 | S (mm): 4.75 | RE (mm): 0.80 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP187050-B CW80 L (mm): 12.70 | W (mm): 4.750 | S (mm): 4.75 | RE (mm): 0.80 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP218075-A CW40 L (mm): 19.05 | W (mm): 5.537 | S (mm): 6.35 | RE (mm): 0.40 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP218075-A CW80 L (mm): 19.05 | W (mm): 5.537 | S (mm): 6.35 | RE (mm): 0.40 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP250075-A CW40 L (mm): 19.05 | W (mm): 6.350 | S (mm): 6.35 | RE (mm): 0.40 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP250075-A CW80 L (mm): 19.05 | W (mm): 6.350 | S (mm): 6.35 | RE (mm): 0.40 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP250075-B CW40 L (mm): 19.05 | W (mm): 6.350 | S (mm): 6.35 | RE (mm): 0.80 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP250075-B CW80 L (mm): 19.05 | W (mm): 6.350 | S (mm): 6.35 | RE (mm): 0.80 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP250075-C CW40 L (mm): 19.05 | W (mm): 6.350 | S (mm): 6.35 | RE (mm): 1.20 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP250075-C CW80 L (mm): 19.05 | W (mm): 6.350 | S (mm): 6.35 | RE (mm): 1.20 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP281075-A CW40 L (mm): 19.05 | W (mm): 7.137 | S (mm): 6.35 | RE (mm): 0.40 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP281075-A CW80 L (mm): 19.05 | W (mm): 7.137 | S (mm): 6.35 | RE (mm): 0.40 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP312100-A CW80 L (mm): 25.40 | W (mm): 7.925 | S (mm): 8.56 | RE (mm): 0.40 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP312100-B CW80 L (mm): 25.40 | W (mm): 7.925 | S (mm): 8.56 | RE (mm): 0.80 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP312100-C CW80 L (mm): 25.40 | W (mm): 7.925 | S (mm): 8.56 | RE (mm): 1.20 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP375100-B CW80 L (mm): 25.40 | W (mm): 9.525 | S (mm): 8.56 | RE (mm): 0.80 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP375100-D CW80 L (mm): 25.40 | W (mm): 9.525 | S (mm): 8.56 | RE (mm): 1.60 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
Turning InsertsKorloy
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Roll Turning Insert WFP

Brand Korloy·Turning Inserts

Available part numbers (24)

WFP094050-A CW80, WFP125050-A CW80, WFP125050-B CW80, WFP156050-A CW80, WFP156050-B CW80, WFP187050-A CW40, WFP187050-A CW80, WFP187050-B CW40, WFP187050-B CW80, WFP218075-A CW40 + 14 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WFP094050-A CW80L (mm): 12.70 | W (mm): 2.388 | S (mm): 4.75 | RE (mm): 0.40 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP125050-A CW80L (mm): 12.70 | W (mm): 3.175 | S (mm): 4.75 | RE (mm): 0.40 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP125050-B CW80L (mm): 12.70 | W (mm): 3.175 | S (mm): 4.75 | RE (mm): 0.80 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP156050-A CW80L (mm): 12.70 | W (mm): 3.962 | S (mm): 4.75 | RE (mm): 0.40 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP156050-B CW80L (mm): 12.70 | W (mm): 3.962 | S (mm): 4.75 | RE (mm): 0.80 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP187050-A CW40L (mm): 12.70 | W (mm): 4.750 | S (mm): 4.75 | RE (mm): 0.40 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP187050-A CW80L (mm): 12.70 | W (mm): 4.750 | S (mm): 4.75 | RE (mm): 0.40 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP187050-B CW40L (mm): 12.70 | W (mm): 4.750 | S (mm): 4.75 | RE (mm): 0.80 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP187050-B CW80L (mm): 12.70 | W (mm): 4.750 | S (mm): 4.75 | RE (mm): 0.80 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP218075-A CW40L (mm): 19.05 | W (mm): 5.537 | S (mm): 6.35 | RE (mm): 0.40 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP218075-A CW80L (mm): 19.05 | W (mm): 5.537 | S (mm): 6.35 | RE (mm): 0.40 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP250075-A CW40L (mm): 19.05 | W (mm): 6.350 | S (mm): 6.35 | RE (mm): 0.40 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP250075-A CW80L (mm): 19.05 | W (mm): 6.350 | S (mm): 6.35 | RE (mm): 0.40 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP250075-B CW40L (mm): 19.05 | W (mm): 6.350 | S (mm): 6.35 | RE (mm): 0.80 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP250075-B CW80L (mm): 19.05 | W (mm): 6.350 | S (mm): 6.35 | RE (mm): 0.80 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP250075-C CW40L (mm): 19.05 | W (mm): 6.350 | S (mm): 6.35 | RE (mm): 1.20 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP250075-C CW80L (mm): 19.05 | W (mm): 6.350 | S (mm): 6.35 | RE (mm): 1.20 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP281075-A CW40L (mm): 19.05 | W (mm): 7.137 | S (mm): 6.35 | RE (mm): 0.40 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP281075-A CW80L (mm): 19.05 | W (mm): 7.137 | S (mm): 6.35 | RE (mm): 0.40 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP312100-A CW80L (mm): 25.40 | W (mm): 7.925 | S (mm): 8.56 | RE (mm): 0.40 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP312100-B CW80L (mm): 25.40 | W (mm): 7.925 | S (mm): 8.56 | RE (mm): 0.80 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP312100-C CW80L (mm): 25.40 | W (mm): 7.925 | S (mm): 8.56 | RE (mm): 1.20 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP375100-B CW80L (mm): 25.40 | W (mm): 9.525 | S (mm): 8.56 | RE (mm): 0.80 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WFP375100-D CW80L (mm): 25.40 | W (mm): 9.525 | S (mm): 8.56 | RE (mm): 1.60 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
