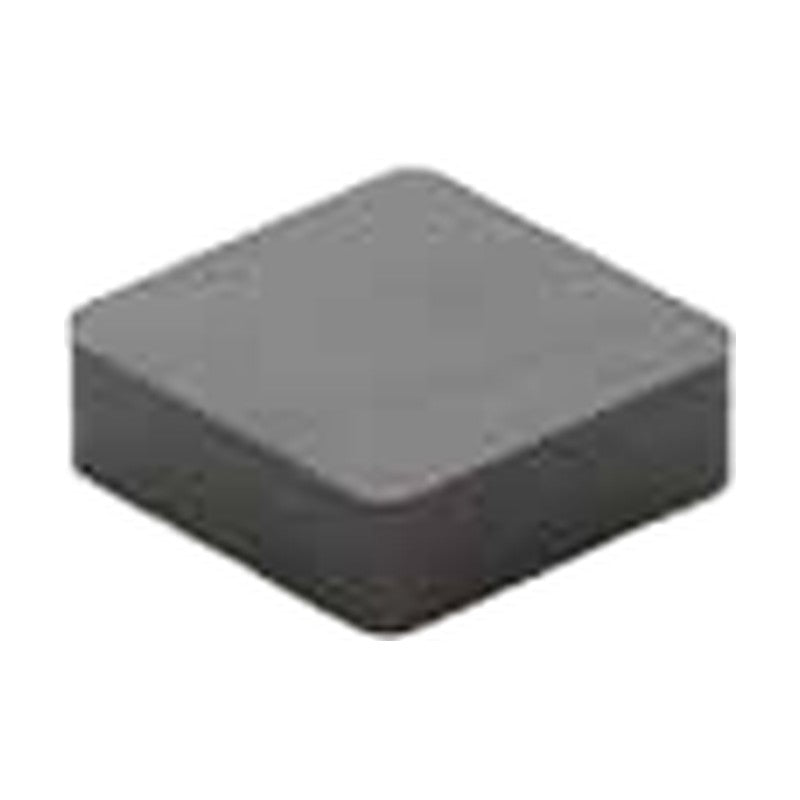

Korloy Ceramic Turning Insert CNGN

Korloy Ceramic Turning Insert CNGN

80° rhombic ceramic turning insert (ISO CNGN), negative (0° clearance), without hole, for hardened steel, cast iron and heat-resistant alloys.

Key features

  • Grades offered: CAT10, CAT20, CAT30, CAT50, CAT90, CAT30C, CA20, CA30, CSN20, CSN30, CSN40, CSN50, CSN60, CSN80, CSN100, CW40, CW80
  • Al2O3+TiC(N) mixed ceramic grades for hardened steel and cast iron
  • TiN-coated mixed ceramic grades for finishing hardened steel and cast iron
  • Al2O3+ZrO2 grades for finishing and semi-finishing cast iron and steel
  • Si3N4 grades for roughing and high-speed machining of cast iron
  • SiAlON grades for heat-resistant and nickel-based alloys

Specifications

Material class Ceramic
Units mm
CNGN090304 CAT30 ASA: CNGN 321 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.4 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNGN090308 CAT50 ASA: CNGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNGN090308 CSN60 ASA: CNGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
CNGN090308 CSN80 ASA: CNGN 322 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
CNGN090312 CSN60 ASA: CNGN 323 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 1.2 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
CNGN090312 CSN80 ASA: CNGN 323 | IC (mm): 9.52 | S (mm): 3.18 | RE (mm): 1.2 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
CNGN120304 CAT10 ASA: CNGN 421 | IC (mm): 12.70 | S (mm): 3.18 | RE (mm): 0.4 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNGN120308 CAT10 ASA: CNGN 422 | IC (mm): 12.70 | S (mm): 3.18 | RE (mm): 0.8 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNGN120312 CAT10 ASA: CNGN 423 | IC (mm): 12.70 | S (mm): 3.18 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNGN120404 CAT10 ASA: CNGN 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes
CNGN120404 CAT20 ASA: CNGN 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
CNGN120404 CAT30 ASA: CNGN 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes
CNGN120404 CA20 ASA: CNGN 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
CNGN120408 CAT10 ASA: CNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes
CNGN120408 CAT20 ASA: CNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
CNGN120408 CAT30 ASA: CNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes
CNGN120408 CAT50 ASA: CNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNGN120408 CAT90 ASA: CNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNGN120408 CAT30C ASA: CNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CAT30C | Material: Al2O3+TiCN, TiN coated | Stock: Yes (from material)
CNGN120408 CA20 ASA: CNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
CNGN120408 CA30 ASA: CNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CA30 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
CNGN120408 CSN20 ASA: CNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
CNGN120408 CSN40 ASA: CNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CSN40 | Material: Si3N4 | Stock: Yes
CNGN120408 CSN50 ASA: CNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
CNGN120408 CSN80 ASA: CNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
CNGN120408 CW40 ASA: CNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
CNGN120408 CW80 ASA: CNGN 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
CNGN120412 CAT10 ASA: CNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes
CNGN120412 CAT20 ASA: CNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
CNGN120412 CAT30 ASA: CNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes
CNGN120412 CAT50 ASA: CNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNGN120412 CAT90 ASA: CNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNGN120412 CA20 ASA: CNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
CNGN120412 CSN20 ASA: CNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
CNGN120412 CSN40 ASA: CNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes
CNGN120412 CSN50 ASA: CNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
CNGN120412 CSN60 ASA: CNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
CNGN120412 CSN80 ASA: CNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
CNGN120412 CW40 ASA: CNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
CNGN120412 CW80 ASA: CNGN 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
CNGN120416 CAT10 ASA: CNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNGN120416 CAT20 ASA: CNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
CNGN120416 CAT30 ASA: CNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNGN120416 CAT50 ASA: CNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNGN120416 CSN20 ASA: CNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
CNGN120416 CSN40 ASA: CNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
CNGN120416 CSN50 ASA: CNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
CNGN120416 CSN60 ASA: CNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
CNGN120416 CSN80 ASA: CNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
CNGN120416 CW40 ASA: CNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
CNGN120416 CW80 ASA: CNGN 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
CNGN120704 CW40 ASA: CNGN 451 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.4 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
CNGN120704 CW80 ASA: CNGN 451 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.4 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
CNGN120708 CSN20 ASA: CNGN 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
CNGN120708 CSN30 ASA: CNGN 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CNGN120708 CSN80 ASA: CNGN 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
CNGN120712 CAT10 ASA: CNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNGN120712 CAT20 ASA: CNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
CNGN120712 CSN20 ASA: CNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
CNGN120712 CSN40 ASA: CNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
CNGN120712 CSN50 ASA: CNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
CNGN120712 CSN80 ASA: CNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
CNGN120712 CW40 ASA: CNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
CNGN120712 CW80 ASA: CNGN 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
CNGN120716 CAT10 ASA: CNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNGN120716 CAT20 ASA: CNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
CNGN120716 CSN20 ASA: CNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
CNGN120716 CSN40 ASA: CNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
CNGN120716 CSN50 ASA: CNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
CNGN120716 CSN80 ASA: CNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
CNGN120716 CW40 ASA: CNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
CNGN120716 CW80 ASA: CNGN 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
CNGN160612 CAT10 ASA: CNGN 543 | IC (mm): 15.87 | S (mm): 6.35 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNGN160612 CSN40 ASA: CNGN 543 | IC (mm): 15.87 | S (mm): 6.35 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
CNGN160612 CSN100 ASA: CNGN 543 | IC (mm): 15.87 | S (mm): 6.35 | RE (mm): 1.2 | Grade: CSN100 | Material: SiAlON | Stock: Yes (from material)
CNGN160612 CW80 ASA: CNGN 543 | IC (mm): 15.87 | S (mm): 6.35 | RE (mm): 1.2 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
CNGN160616 CAT10 ASA: CNGN 544 | IC (mm): 15.87 | S (mm): 6.35 | RE (mm): 1.6 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNGN160708 CAT10 ASA: CNGN 552 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNGN160708 CSN40 ASA: CNGN 552 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
CNGN160712 CAT10 ASA: CNGN 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNGN160712 CAT30 ASA: CNGN 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNGN160712 CAT50 ASA: CNGN 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNGN160712 CSN20 ASA: CNGN 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
CNGN160712 CSN40 ASA: CNGN 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
CNGN160712 CSN50 ASA: CNGN 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
CNGN160716 CAT10 ASA: CNGN 554 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNGN160716 CAT20 ASA: CNGN 554 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
CNGN160716 CAT30 ASA: CNGN 554 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNGN160716 CAT50 ASA: CNGN 554 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNGN160716 CSN20 ASA: CNGN 554 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
CNGN160716 CSN30 ASA: CNGN 554 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CNGN160720 CAT10 ASA: CNGN 555 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 2.0 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNGN160720 CSN20 ASA: CNGN 555 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 2.0 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
CNGN160720 CSN30 ASA: CNGN 555 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 2.0 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CNGN190612 CAT10 ASA: CNGN 643 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNGN190612 CAT30 ASA: CNGN 643 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.2 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNGN190616 CAT10 ASA: CNGN 644 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.6 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNGN190616 CAT30 ASA: CNGN 644 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.6 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNGN190712 CAT10 ASA: CNGN 653 | IC (mm): 19.05 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNGN190712 CAT30 ASA: CNGN 653 | IC (mm): 19.05 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNGN190716 CAT10 ASA: CNGN 654 | IC (mm): 19.05 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNGN190716 CAT30 ASA: CNGN 654 | IC (mm): 19.05 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNGN190720 CAT10 ASA: CNGN 655 | IC (mm): 19.05 | S (mm): 7.94 | RE (mm): 2.0 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNGN250724 CAT10 ASA: CNGN 856 | IC (mm): 25.40 | S (mm): 7.94 | RE (mm): 2.4 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNGN250924 CAT10 ASA: CNGN 866 | IC (mm): 25.40 | S (mm): 9.52 | RE (mm): 2.4 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNGN250924 CAT30 ASA: CNGN 866 | IC (mm): 25.40 | S (mm): 9.52 | RE (mm): 2.4 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNGN250924 CSN20 ASA: CNGN 866 | IC (mm): 25.40 | S (mm): 9.52 | RE (mm): 2.4 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
Turning InsertsKorloy
107 product codes available in this family
