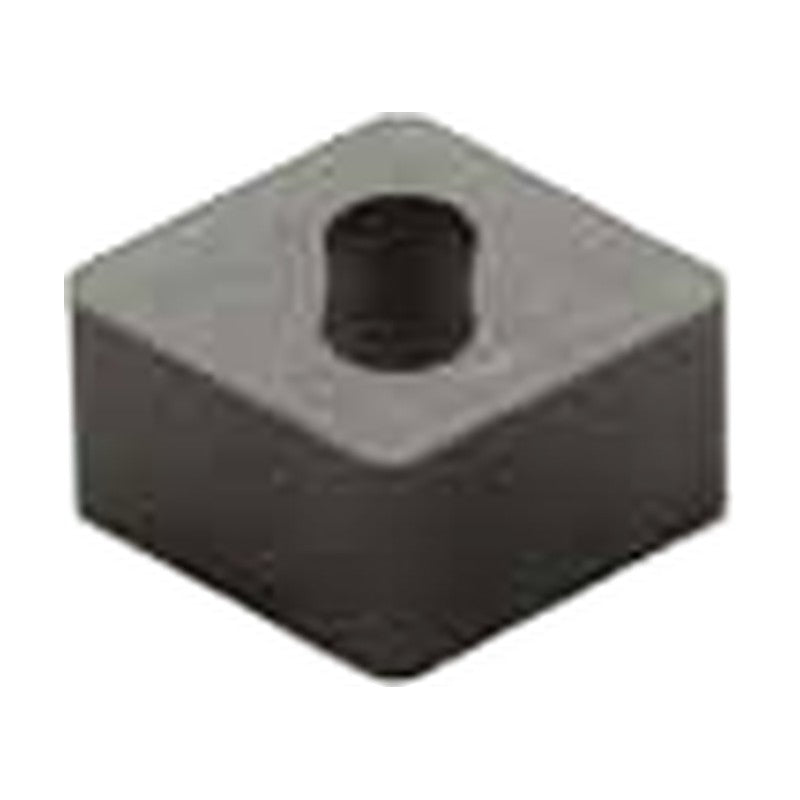

Korloy Ceramic Turning Insert CNVX

Korloy Ceramic Turning Insert CNVX

80° rhombic ceramic turning insert (ISO CNVX), negative (0° clearance), for hardened steel, cast iron and heat-resistant alloys.

Key features

  • Grades offered: CAT10, CAT30, CAT90, CA20, CSN30, CSN40, CSN50, CSN60, CSN80
  • Al2O3+TiC(N) mixed ceramic grades for hardened steel and cast iron
  • Al2O3+ZrO2 grades for finishing and semi-finishing cast iron and steel
  • Si3N4 grades for roughing and high-speed machining of cast iron
  • SiAlON grades for heat-resistant and nickel-based alloys

Specifications

Material class Ceramic
Units mm
CNVX120412 CSN40 ASA: CNVX 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
CNVX120416 CSN40 ASA: CNVX 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
CNVX120708 CAT10 ASA: CNVX 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNVX120708 CA20 ASA: CNVX 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
CNVX120708 CSN30 ASA: CNVX 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CNVX120712 CAT10 ASA: CNVX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNVX120712 CAT30 ASA: CNVX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNVX120712 CA20 ASA: CNVX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
CNVX120712 CSN30 ASA: CNVX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CNVX120712 CSN40 ASA: CNVX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
CNVX120712 CSN50 ASA: CNVX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
CNVX120712 CSN60 ASA: CNVX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
CNVX120712 CSN80 ASA: CNVX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
CNVX120716 CAT30 ASA: CNVX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNVX120716 CAT90 ASA: CNVX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNVX120716 CA20 ASA: CNVX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
CNVX120716 CSN30 ASA: CNVX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CNVX120716 CSN40 ASA: CNVX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
CNVX120716 CSN50 ASA: CNVX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
CNVX120716 CSN60 ASA: CNVX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
CNVX120716 CSN80 ASA: CNVX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
Turning InsertsKorloy
21 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Turning Insert CNVX

Brand Korloy·Turning Inserts

Available part numbers (21)

CNVX120412 CSN40, CNVX120416 CSN40, CNVX120708 CAT10, CNVX120708 CA20, CNVX120708 CSN30, CNVX120712 CAT10, CNVX120712 CAT30, CNVX120712 CA20, CNVX120712 CSN30, CNVX120712 CSN40 + 11 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CNVX120412 CSN40ASA: CNVX 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
CNVX120416 CSN40ASA: CNVX 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
CNVX120708 CAT10ASA: CNVX 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNVX120708 CA20ASA: CNVX 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
CNVX120708 CSN30ASA: CNVX 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CNVX120712 CAT10ASA: CNVX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNVX120712 CAT30ASA: CNVX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNVX120712 CA20ASA: CNVX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
CNVX120712 CSN30ASA: CNVX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CNVX120712 CSN40ASA: CNVX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
CNVX120712 CSN50ASA: CNVX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
CNVX120712 CSN60ASA: CNVX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
CNVX120712 CSN80ASA: CNVX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
CNVX120716 CAT30ASA: CNVX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNVX120716 CAT90ASA: CNVX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNVX120716 CA20ASA: CNVX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
CNVX120716 CSN30ASA: CNVX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CNVX120716 CSN40ASA: CNVX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
CNVX120716 CSN50ASA: CNVX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
CNVX120716 CSN60ASA: CNVX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
CNVX120716 CSN80ASA: CNVX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
