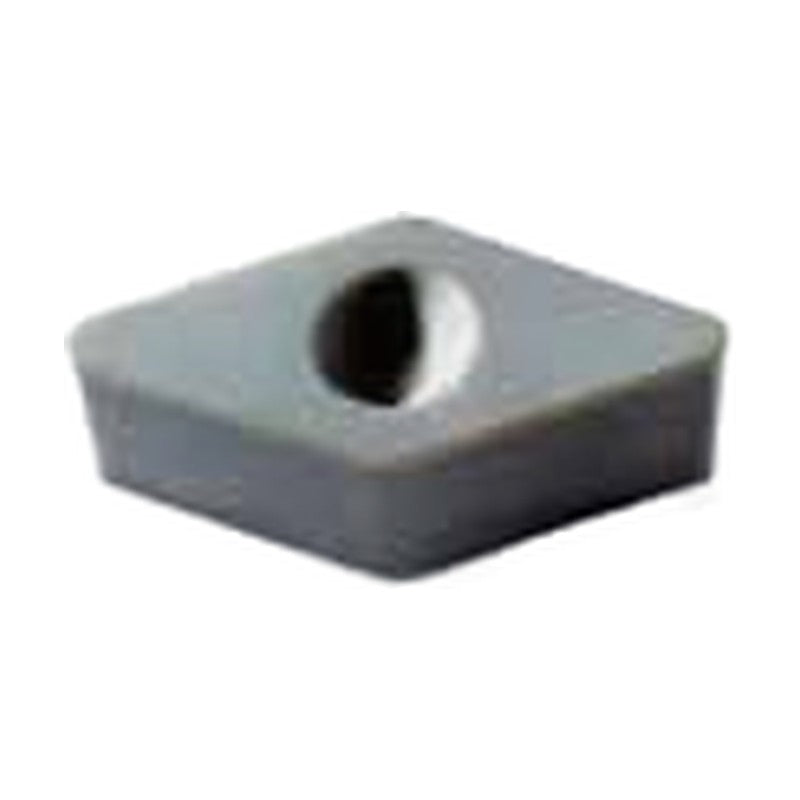

Korloy Ceramic Turning Insert DCGX

Korloy Ceramic Turning Insert DCGX

55° rhombic ceramic turning insert (ISO DCGX), positive 7° clearance, for cast iron and heat-resistant alloys.

Key features

  • Grades offered: CSN40, CSN50, CSN60, CSN80
  • Si3N4 grades for roughing and high-speed machining of cast iron
  • SiAlON grades for heat-resistant and nickel-based alloys

Specifications

Material class Ceramic
Units mm
DCGX150612 CSN40 ASA: DCGX 443 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
DCGX150612 CSN50 ASA: DCGX 443 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.2 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
DCGX150612 CSN60 ASA: DCGX 443 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.2 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
DCGX150616 CSN40 ASA: DCGX 444 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
DCGX150616 CSN50 ASA: DCGX 444 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.6 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
DCGX150616 CSN60 ASA: DCGX 444 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.6 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
DCGX150616 CSN80 ASA: DCGX 444 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.6 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
Turning InsertsKorloy
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Turning Insert DCGX

Brand Korloy·Turning Inserts

Available part numbers (7)

DCGX150612 CSN40, DCGX150612 CSN50, DCGX150612 CSN60, DCGX150616 CSN40, DCGX150616 CSN50, DCGX150616 CSN60, DCGX150616 CSN80

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DCGX150612 CSN40ASA: DCGX 443 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
DCGX150612 CSN50ASA: DCGX 443 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.2 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
DCGX150612 CSN60ASA: DCGX 443 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.2 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
DCGX150616 CSN40ASA: DCGX 444 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
DCGX150616 CSN50ASA: DCGX 444 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.6 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
DCGX150616 CSN60ASA: DCGX 444 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.6 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
DCGX150616 CSN80ASA: DCGX 444 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.6 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)

Need a different model, or a part not listed here? Send us your parts list →
