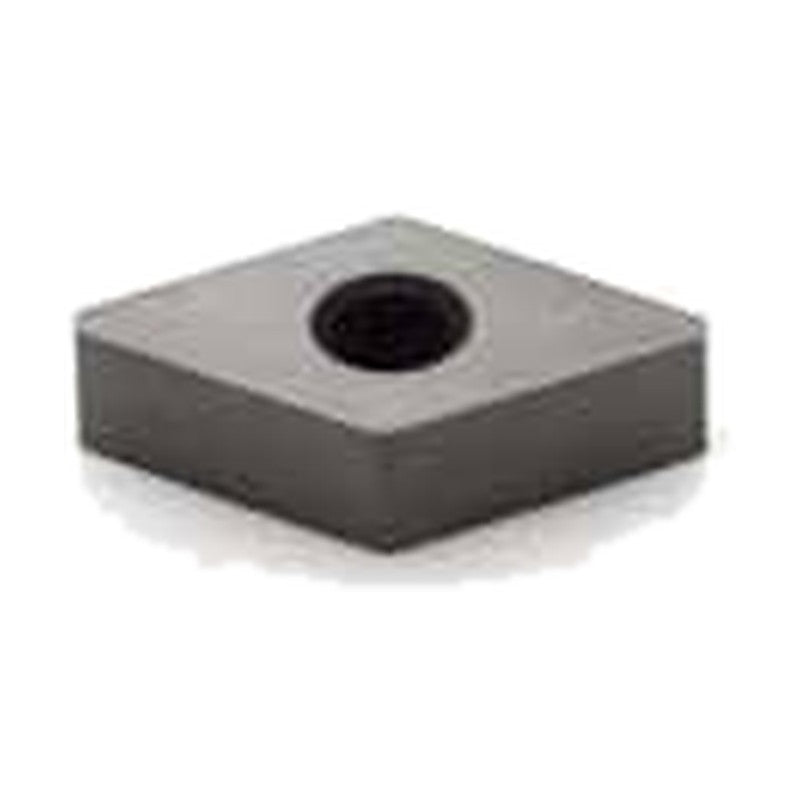

Korloy Ceramic Turning Insert DNGA

Korloy Ceramic Turning Insert DNGA

55° rhombic ceramic turning insert (ISO DNGA), negative (0° clearance), with hole, for hardened steel, cast iron and heat-resistant alloys.

Key features

  • Grades offered: CAT10, CAT20, CAT30, CAT50, CAT90, CAT30C, CA30, CSN20, CSN30, CSN40, CSN50, CSN80, CW40, CW80
  • Al2O3+TiC(N) mixed ceramic grades for hardened steel and cast iron
  • TiN-coated mixed ceramic grades for finishing hardened steel and cast iron
  • Al2O3+ZrO2 grades for finishing and semi-finishing cast iron and steel
  • Si3N4 grades for roughing and high-speed machining of cast iron
  • SiAlON grades for heat-resistant and nickel-based alloys

Specifications

Material class Ceramic
Units mm
DNGA150404 CAT10 ASA: DNGA 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes
DNGA150404 CAT30 ASA: DNGA 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes
DNGA150404 CAT90 ASA: DNGA 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
DNGA150408 CAT10 ASA: DNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes
DNGA150408 CAT30 ASA: DNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes
DNGA150408 CAT50 ASA: DNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
DNGA150408 CAT90 ASA: DNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
DNGA150408 CAT30C ASA: DNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT30C | Material: Al2O3+TiCN, TiN coated | Stock: Yes (from material)
DNGA150408 CSN20 ASA: DNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
DNGA150408 CSN30 ASA: DNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
DNGA150408 CSN40 ASA: DNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
DNGA150408 CW40 ASA: DNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
DNGA150408 CW80 ASA: DNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
DNGA150412 CAT10 ASA: DNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes
DNGA150412 CAT30 ASA: DNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes
DNGA150412 CAT50 ASA: DNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
DNGA150412 CAT90 ASA: DNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
DNGA150412 CSN30 ASA: DNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
DNGA150412 CSN40 ASA: DNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
DNGA150412 CSN50 ASA: DNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
DNGA150412 CSN80 ASA: DNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
DNGA150412 CW40 ASA: DNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
DNGA150412 CW80 ASA: DNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
DNGA150416 CAT10 ASA: DNGA 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
DNGA150416 CSN20 ASA: DNGA 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
DNGA150416 CW40 ASA: DNGA 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
DNGA150416 CW80 ASA: DNGA 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
DNGA150604 CAT10 ASA: DNGA 441 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes
DNGA150604 CAT20 ASA: DNGA 441 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
DNGA150604 CAT30 ASA: DNGA 441 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes
DNGA150604 CAT50 ASA: DNGA 441 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
DNGA150604 CAT90 ASA: DNGA 441 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
DNGA150604 CA30 ASA: DNGA 441 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CA30 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
DNGA150608 CAT10 ASA: DNGA 442 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes
DNGA150608 CAT20 ASA: DNGA 442 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
DNGA150608 CAT30 ASA: DNGA 442 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes
DNGA150608 CAT50 ASA: DNGA 442 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
DNGA150608 CAT90 ASA: DNGA 442 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
DNGA150608 CSN20 ASA: DNGA 442 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
DNGA150608 CSN40 ASA: DNGA 442 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN40 | Material: Si3N4 | Stock: Yes
DNGA150612 CAT10 ASA: DNGA 443 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes
DNGA150612 CAT30 ASA: DNGA 443 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes
DNGA150612 CAT50 ASA: DNGA 443 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
DNGA150612 CAT90 ASA: DNGA 443 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
DNGA150612 CSN20 ASA: DNGA 443 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
DNGA150612 CSN40 ASA: DNGA 443 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN40 | Material: Si3N4 | Stock: Yes
DNGA150612 CSN50 ASA: DNGA 443 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
DNGA150612 CSN80 ASA: DNGA 443 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
DNGA150616 CAT10 ASA: DNGA 444 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
DNGA150616 CAT30 ASA: DNGA 444 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
DNGA150616 CAT50 ASA: DNGA 444 | IC (mm): 12.70 | S (mm): 6.35 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
DNGA150704 CAT10 ASA: DNGA 451 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
DNGA150704 CAT30 ASA: DNGA 451 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
DNGA150708 CAT10 ASA: DNGA 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
DNGA150708 CAT30 ASA: DNGA 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
DNGA150708 CA30 ASA: DNGA 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CA30 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
DNGA150708 CSN20 ASA: DNGA 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
DNGA150708 CSN30 ASA: DNGA 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
DNGA150708 CSN40 ASA: DNGA 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
DNGA150712 CAT10 ASA: DNGA 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
DNGA150712 CAT30 ASA: DNGA 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
DNGA150712 CA30 ASA: DNGA 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CA30 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
DNGA150712 CSN30 ASA: DNGA 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
DNGA150712 CSN40 ASA: DNGA 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
DNGA150712 CSN50 ASA: DNGA 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
DNGA150712 CSN80 ASA: DNGA 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
DNGA190608 CAT10 ASA: DNGA 542 | IC (mm): 15.87 | S (mm): 6.35 | RE (mm): 0.8 | D1 (mm): 6.35 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
DNGA190608 CAT30 ASA: DNGA 542 | IC (mm): 15.87 | S (mm): 6.35 | RE (mm): 0.8 | D1 (mm): 6.35 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
DNGA190612 CAT10 ASA: DNGA 543 | IC (mm): 15.87 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 6.35 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
DNGA190612 CAT30 ASA: DNGA 543 | IC (mm): 15.87 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 6.35 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
DNGA190612 CA30 ASA: DNGA 543 | IC (mm): 15.87 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 6.35 | Grade: CA30 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
DNGA190612 CSN20 ASA: DNGA 543 | IC (mm): 15.87 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 6.35 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
DNGA190612 CSN40 ASA: DNGA 543 | IC (mm): 15.87 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 6.35 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
DNGA190612 CSN80 ASA: DNGA 543 | IC (mm): 15.87 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 6.35 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
DNGA190616 CAT10 ASA: DNGA 544 | IC (mm): 15.87 | S (mm): 6.35 | RE (mm): 1.6 | D1 (mm): 6.35 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
Turning InsertsKorloy
75 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Turning Insert DNGA

Brand Korloy·Turning Inserts

Available part numbers (75)

DNGA150404 CAT10, DNGA150404 CAT30, DNGA150404 CAT90, DNGA150408 CAT10, DNGA150408 CAT30, DNGA150408 CAT50, DNGA150408 CAT90, DNGA150408 CAT30C, DNGA150408 CSN20, DNGA150408 CSN30 + 65 more — see full table ↓
