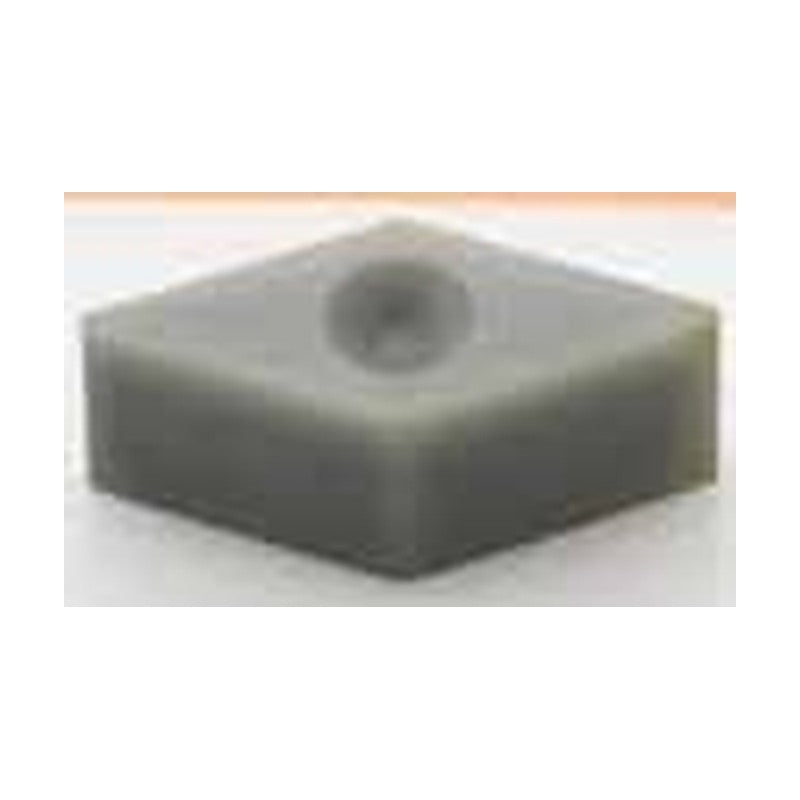

Korloy Ceramic Turning Insert DNGX

Korloy Ceramic Turning Insert DNGX

55° rhombic ceramic turning insert (ISO DNGX), negative (0° clearance), for hardened steel, cast iron and heat-resistant alloys.

Key features

  • Grades offered: CA20, CSN30, CSN40, CSN50, CSN60, CSN80
  • Al2O3+ZrO2 grades for finishing and semi-finishing cast iron and steel
  • Si3N4 grades for roughing and high-speed machining of cast iron
  • SiAlON grades for heat-resistant and nickel-based alloys

Specifications

Material class Ceramic
Units mm
DNGX120708 CA20 ASA: DNGX 352 | IC (mm): 10.00 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
DNGX120708 CSN40 ASA: DNGX 352 | IC (mm): 10.00 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
DNGX120712 CA20 ASA: DNGX 353 | IC (mm): 10.00 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
DNGX120712 CSN30 ASA: DNGX 353 | IC (mm): 10.00 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
DNGX120712 CSN40 ASA: DNGX 353 | IC (mm): 10.00 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
DNGX120712 CSN50 ASA: DNGX 353 | IC (mm): 10.00 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
DNGX120712 CSN60 ASA: DNGX 353 | IC (mm): 10.00 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
DNGX120712 CSN80 ASA: DNGX 353 | IC (mm): 10.00 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
DNGX120716 CA20 ASA: DNGX 354 | IC (mm): 10.00 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
DNGX120716 CSN30 ASA: DNGX 354 | IC (mm): 10.00 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
DNGX120716 CSN40 ASA: DNGX 354 | IC (mm): 10.00 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
DNGX120716 CSN50 ASA: DNGX 354 | IC (mm): 10.00 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
DNGX150712 CA20 ASA: DNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
DNGX150712 CSN30 ASA: DNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
DNGX150712 CSN40 ASA: DNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
DNGX150716 CSN30 ASA: DNGX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
DNGX150716 CSN40 ASA: DNGX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
DNGX150716 CSN50 ASA: DNGX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
DNGX150716 CSN60 ASA: DNGX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
DNGX150716 CSN80 ASA: DNGX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
Turning InsertsKorloy
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Turning Insert DNGX

Brand Korloy·Turning Inserts

Available part numbers (20)

DNGX120708 CA20, DNGX120708 CSN40, DNGX120712 CA20, DNGX120712 CSN30, DNGX120712 CSN40, DNGX120712 CSN50, DNGX120712 CSN60, DNGX120712 CSN80, DNGX120716 CA20, DNGX120716 CSN30 + 10 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DNGX120708 CA20ASA: DNGX 352 | IC (mm): 10.00 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
DNGX120708 CSN40ASA: DNGX 352 | IC (mm): 10.00 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
DNGX120712 CA20ASA: DNGX 353 | IC (mm): 10.00 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
DNGX120712 CSN30ASA: DNGX 353 | IC (mm): 10.00 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
DNGX120712 CSN40ASA: DNGX 353 | IC (mm): 10.00 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
DNGX120712 CSN50ASA: DNGX 353 | IC (mm): 10.00 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
DNGX120712 CSN60ASA: DNGX 353 | IC (mm): 10.00 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
DNGX120712 CSN80ASA: DNGX 353 | IC (mm): 10.00 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
DNGX120716 CA20ASA: DNGX 354 | IC (mm): 10.00 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
DNGX120716 CSN30ASA: DNGX 354 | IC (mm): 10.00 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
DNGX120716 CSN40ASA: DNGX 354 | IC (mm): 10.00 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
DNGX120716 CSN50ASA: DNGX 354 | IC (mm): 10.00 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
DNGX150712 CA20ASA: DNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
DNGX150712 CSN30ASA: DNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
DNGX150712 CSN40ASA: DNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
DNGX150716 CSN30ASA: DNGX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
DNGX150716 CSN40ASA: DNGX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
DNGX150716 CSN50ASA: DNGX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
DNGX150716 CSN60ASA: DNGX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
DNGX150716 CSN80ASA: DNGX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
