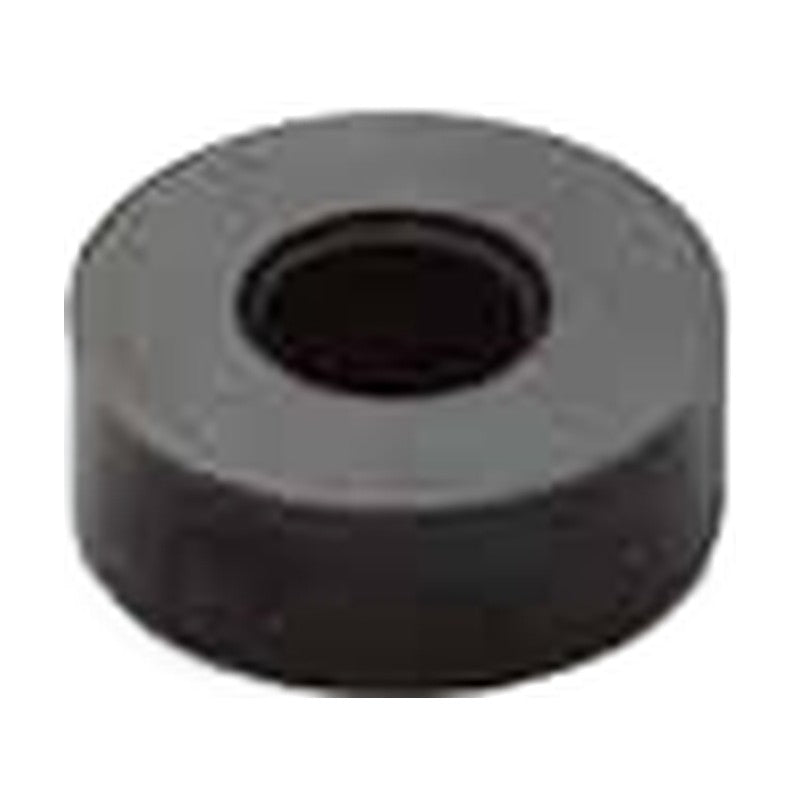

Korloy Ceramic Turning Insert RNGA

Korloy Ceramic Turning Insert RNGA

Round ceramic turning insert (ISO RNGA), negative (0° clearance), with hole, for hardened steel, cast iron and heat-resistant alloys.

Key features

  • Grades offered: CAT10, CAT30, CW40, CW80
  • Al2O3+TiC(N) mixed ceramic grades for hardened steel and cast iron
  • SiC whisker-reinforced grades for nickel- and cobalt-based alloys

Specifications

Material class Ceramic
Units mm
RNGA120400 CAT10 ASA: RNGA 430 | D (mm): 12.70 | S (mm): 4.76 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RNGA120400 CAT30 ASA: RNGA 430 | D (mm): 12.70 | S (mm): 4.76 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RNGA120700 CAT10 ASA: RNGA 450 | D (mm): 12.70 | S (mm): 7.94 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RNGA120700 CAT30 ASA: RNGA 450 | D (mm): 12.70 | S (mm): 7.94 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RNGA120700 CW40 ASA: RNGA 450 | D (mm): 12.70 | S (mm): 7.94 | D1 (mm): 5.16 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
RNGA120700 CW80 ASA: RNGA 450 | D (mm): 12.70 | S (mm): 7.94 | D1 (mm): 5.16 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
Turning InsertsKorloy
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Turning Insert RNGA

Brand Korloy·Turning Inserts

Available part numbers (6)

RNGA120400 CAT10, RNGA120400 CAT30, RNGA120700 CAT10, RNGA120700 CAT30, RNGA120700 CW40, RNGA120700 CW80

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RNGA120400 CAT10ASA: RNGA 430 | D (mm): 12.70 | S (mm): 4.76 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RNGA120400 CAT30ASA: RNGA 430 | D (mm): 12.70 | S (mm): 4.76 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RNGA120700 CAT10ASA: RNGA 450 | D (mm): 12.70 | S (mm): 7.94 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RNGA120700 CAT30ASA: RNGA 450 | D (mm): 12.70 | S (mm): 7.94 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RNGA120700 CW40ASA: RNGA 450 | D (mm): 12.70 | S (mm): 7.94 | D1 (mm): 5.16 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
RNGA120700 CW80ASA: RNGA 450 | D (mm): 12.70 | S (mm): 7.94 | D1 (mm): 5.16 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
