• Korloy Ceramic Turning Insert SNMA
1 1

Korloy Ceramic Turning Insert SNMA

Korloy Ceramic Turning Insert SNMA

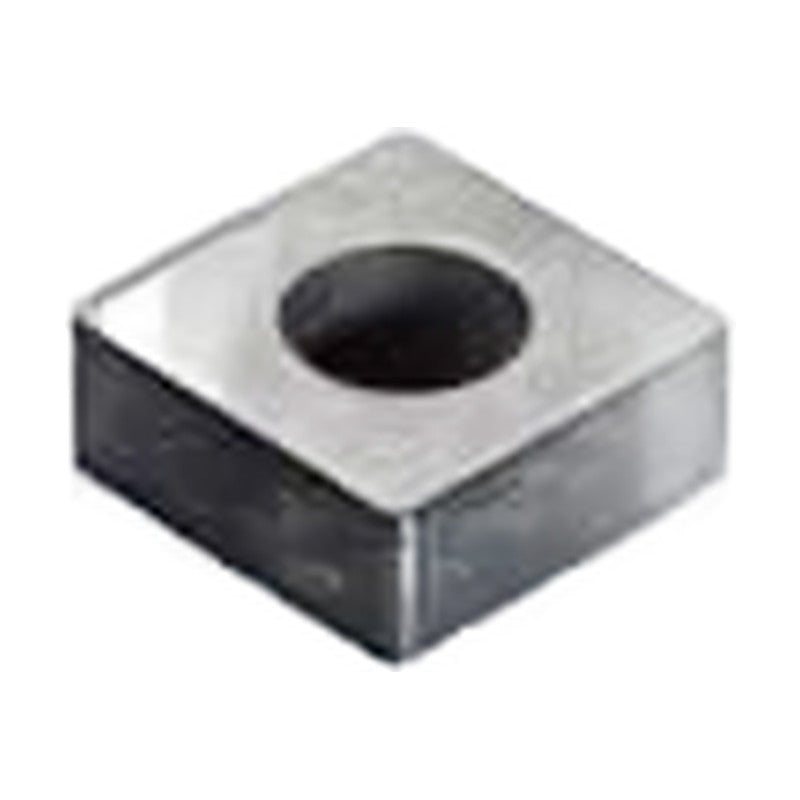

Square ceramic turning insert (ISO SNMA), negative (0° clearance), with hole, for cast iron and heat-resistant alloys.

Key features

  • Grades offered: CSN30, CSN40, CSN60, CSN80
  • Si3N4 grades for roughing and high-speed machining of cast iron
  • SiAlON grades for heat-resistant and nickel-based alloys

Specifications

Material class Ceramic
Units mm
SNMA120408 CSN40 ASA: SNMA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNMA120408 CSN60 ASA: SNMA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
SNMA120412 CSN30 ASA: SNMA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNMA120412 CSN40 ASA: SNMA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNMA120412 CSN60 ASA: SNMA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
SNMA120412 CSN80 ASA: SNMA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
SNMA120416 CSN30 ASA: SNMA 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNMA120416 CSN40 ASA: SNMA 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNMA150616 CSN30 ASA: SNMA 544 | IC (mm): 15.87 | S (mm): 6.35 | RE (mm): 1.6 | D1 (mm): 6.35 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNMA150616 CSN40 ASA: SNMA 544 | IC (mm): 15.87 | S (mm): 6.35 | RE (mm): 1.6 | D1 (mm): 6.35 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
Turning InsertsKorloy
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Turning Insert SNMA

Brand Korloy·Turning Inserts

Available part numbers (10)

SNMA120408 CSN40, SNMA120408 CSN60, SNMA120412 CSN30, SNMA120412 CSN40, SNMA120412 CSN60, SNMA120412 CSN80, SNMA120416 CSN30, SNMA120416 CSN40, SNMA150616 CSN30, SNMA150616 CSN40

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SNMA120408 CSN40ASA: SNMA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNMA120408 CSN60ASA: SNMA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
SNMA120412 CSN30ASA: SNMA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNMA120412 CSN40ASA: SNMA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNMA120412 CSN60ASA: SNMA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
SNMA120412 CSN80ASA: SNMA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
SNMA120416 CSN30ASA: SNMA 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNMA120416 CSN40ASA: SNMA 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SNMA150616 CSN30ASA: SNMA 544 | IC (mm): 15.87 | S (mm): 6.35 | RE (mm): 1.6 | D1 (mm): 6.35 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
SNMA150616 CSN40ASA: SNMA 544 | IC (mm): 15.87 | S (mm): 6.35 | RE (mm): 1.6 | D1 (mm): 6.35 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
