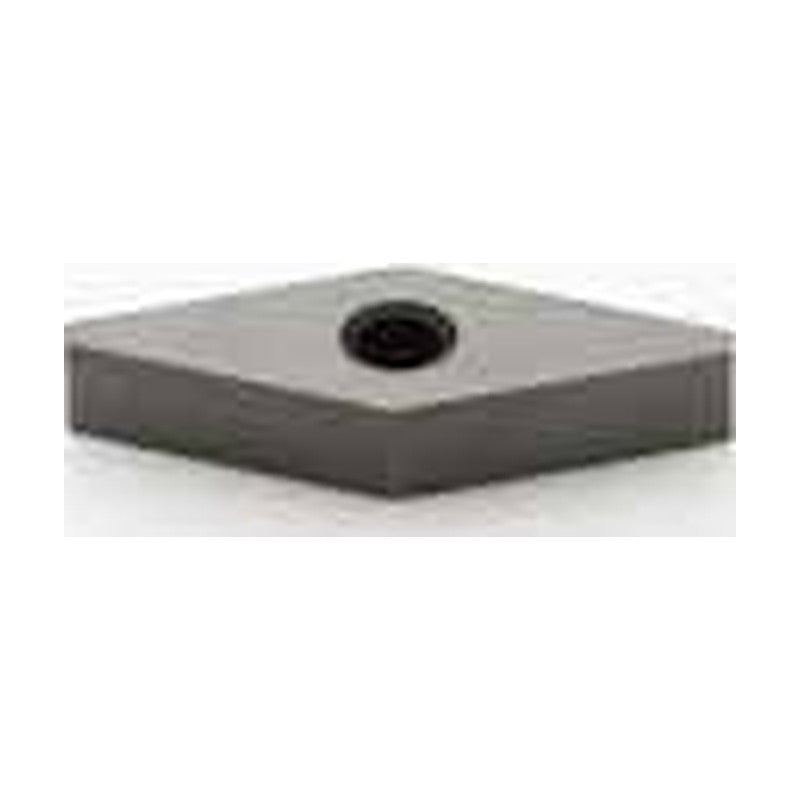

Korloy Ceramic Turning Insert VNGA

Korloy Ceramic Turning Insert VNGA

35° rhombic ceramic turning insert (ISO VNGA), negative (0° clearance), with hole, for hardened steel, cast iron and heat-resistant alloys.

Key features

  • Grades offered: CAT10, CAT30, CAT50, CAT90, CAT30C, CA30, CSN20, CSN30, CSN40, CSN50, CSN80, CW40, CW80
  • Al2O3+TiC(N) mixed ceramic grades for hardened steel and cast iron
  • TiN-coated mixed ceramic grades for finishing hardened steel and cast iron
  • Al2O3+ZrO2 grades for finishing and semi-finishing cast iron and steel
  • Si3N4 grades for roughing and high-speed machining of cast iron
  • SiAlON grades for heat-resistant and nickel-based alloys

Specifications

Material class Ceramic
Units mm
VNGA160404 CAT10 ASA: VNGA 331 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 3.81 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
VNGA160404 CAT30 ASA: VNGA 331 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 3.81 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGA160404 CAT50 ASA: VNGA 331 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 3.81 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGA160404 CSN20 ASA: VNGA 331 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 3.81 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
VNGA160408 CAT10 ASA: VNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
VNGA160408 CAT30 ASA: VNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGA160408 CAT50 ASA: VNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGA160408 CAT90 ASA: VNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGA160408 CAT30C ASA: VNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CAT30C | Material: Al2O3+TiCN, TiN coated | Stock: Yes (from material)
VNGA160408 CA30 ASA: VNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CA30 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
VNGA160408 CSN20 ASA: VNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
VNGA160408 CSN30 ASA: VNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
VNGA160408 CSN40 ASA: VNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
VNGA160408 CSN50 ASA: VNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
VNGA160408 CSN80 ASA: VNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
VNGA160412 CAT10 ASA: VNGA 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
VNGA160412 CAT30 ASA: VNGA 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGA160412 CAT50 ASA: VNGA 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGA160412 CAT90 ASA: VNGA 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGA160412 CA30 ASA: VNGA 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CA30 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
VNGA160412 CSN20 ASA: VNGA 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
VNGA160412 CSN30 ASA: VNGA 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
VNGA160412 CSN40 ASA: VNGA 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
VNGA160412 CSN50 ASA: VNGA 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
VNGA160604 CAT10 ASA: VNGA 341 | IC (mm): 9.52 | S (mm): 6.35 | RE (mm): 0.4 | D1 (mm): 3.81 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
VNGA160604 CAT30 ASA: VNGA 341 | IC (mm): 9.52 | S (mm): 6.35 | RE (mm): 0.4 | D1 (mm): 3.81 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGA160608 CAT10 ASA: VNGA 342 | IC (mm): 9.52 | S (mm): 6.35 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
VNGA160608 CAT30 ASA: VNGA 342 | IC (mm): 9.52 | S (mm): 6.35 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGA160612 CAT10 ASA: VNGA 343 | IC (mm): 9.52 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
VNGA160612 CAT30 ASA: VNGA 343 | IC (mm): 9.52 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGA220404 CAT10 ASA: VNGA 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
VNGA220404 CAT30 ASA: VNGA 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGA220408 CAT10 ASA: VNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
VNGA220408 CAT30 ASA: VNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGA220408 CSN40 ASA: VNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
VNGA220412 CAT10 ASA: VNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
VNGA220412 CAT30 ASA: VNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGA220412 CSN40 ASA: VNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
VNGA220424 CW40 ASA: VNGA 436 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 2.4 | D1 (mm): 5.16 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
VNGA220424 CW80 ASA: VNGA 436 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 2.4 | D1 (mm): 5.16 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
Turning InsertsKorloy
40 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Turning Insert VNGA

Brand Korloy·Turning Inserts

Available part numbers (40)

VNGA160404 CAT10, VNGA160404 CAT30, VNGA160404 CAT50, VNGA160404 CSN20, VNGA160408 CAT10, VNGA160408 CAT30, VNGA160408 CAT50, VNGA160408 CAT90, VNGA160408 CAT30C, VNGA160408 CA30 + 30 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VNGA160404 CAT10ASA: VNGA 331 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 3.81 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
VNGA160404 CAT30ASA: VNGA 331 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 3.81 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGA160404 CAT50ASA: VNGA 331 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 3.81 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGA160404 CSN20ASA: VNGA 331 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 3.81 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
VNGA160408 CAT10ASA: VNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
VNGA160408 CAT30ASA: VNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGA160408 CAT50ASA: VNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGA160408 CAT90ASA: VNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGA160408 CAT30CASA: VNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CAT30C | Material: Al2O3+TiCN, TiN coated | Stock: Yes (from material)
VNGA160408 CA30ASA: VNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CA30 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
VNGA160408 CSN20ASA: VNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
VNGA160408 CSN30ASA: VNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
VNGA160408 CSN40ASA: VNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
VNGA160408 CSN50ASA: VNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
VNGA160408 CSN80ASA: VNGA 332 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
VNGA160412 CAT10ASA: VNGA 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
VNGA160412 CAT30ASA: VNGA 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGA160412 CAT50ASA: VNGA 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGA160412 CAT90ASA: VNGA 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGA160412 CA30ASA: VNGA 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CA30 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
VNGA160412 CSN20ASA: VNGA 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
VNGA160412 CSN30ASA: VNGA 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
VNGA160412 CSN40ASA: VNGA 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
VNGA160412 CSN50ASA: VNGA 333 | IC (mm): 9.52 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
VNGA160604 CAT10ASA: VNGA 341 | IC (mm): 9.52 | S (mm): 6.35 | RE (mm): 0.4 | D1 (mm): 3.81 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
VNGA160604 CAT30ASA: VNGA 341 | IC (mm): 9.52 | S (mm): 6.35 | RE (mm): 0.4 | D1 (mm): 3.81 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGA160608 CAT10ASA: VNGA 342 | IC (mm): 9.52 | S (mm): 6.35 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
VNGA160608 CAT30ASA: VNGA 342 | IC (mm): 9.52 | S (mm): 6.35 | RE (mm): 0.8 | D1 (mm): 3.81 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGA160612 CAT10ASA: VNGA 343 | IC (mm): 9.52 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
VNGA160612 CAT30ASA: VNGA 343 | IC (mm): 9.52 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 3.81 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGA220404 CAT10ASA: VNGA 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
VNGA220404 CAT30ASA: VNGA 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGA220408 CAT10ASA: VNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
VNGA220408 CAT30ASA: VNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGA220408 CSN40ASA: VNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
VNGA220412 CAT10ASA: VNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
VNGA220412 CAT30ASA: VNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
VNGA220412 CSN40ASA: VNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
VNGA220424 CW40ASA: VNGA 436 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 2.4 | D1 (mm): 5.16 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
VNGA220424 CW80ASA: VNGA 436 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 2.4 | D1 (mm): 5.16 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
