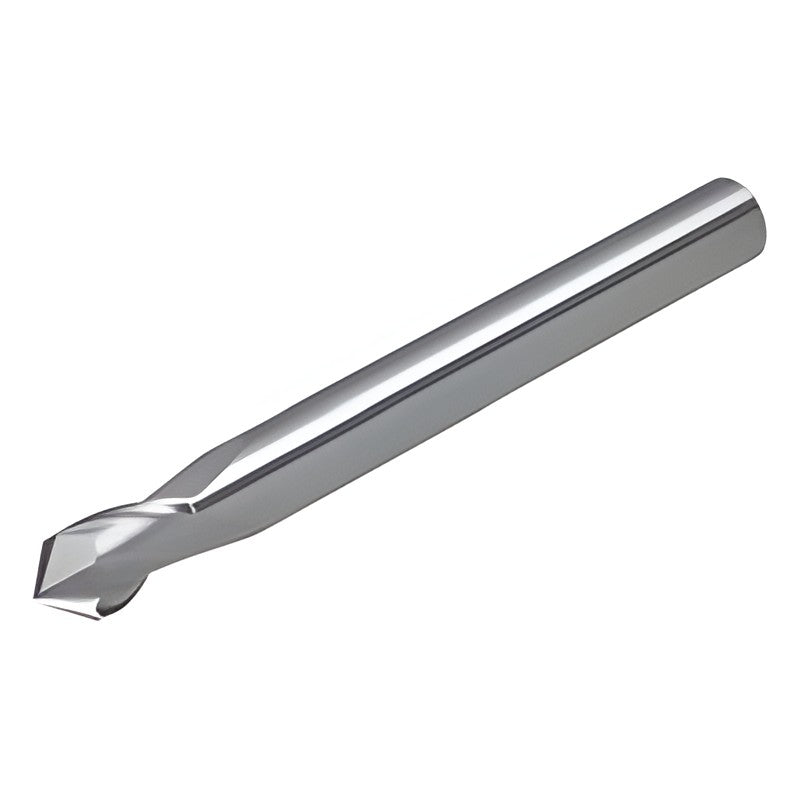

Korloy Chamfer Tool CET

Korloy Chamfer Tool CET

Solid chamfer tool for centering, chamfering and side milling, in 60, 90 and 120 degree point angles.

CET060030 D (mm): 3.0 | Shank d (mm): 3 | Flute length (mm): 5.5 | L (mm): 50 | Point angle: 60°
CET060040 D (mm): 4.0 | Shank d (mm): 4 | Flute length (mm): 7 | L (mm): 50 | Point angle: 60°
CET060060 D (mm): 6.0 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 60 | Point angle: 60°
CET060080 D (mm): 8.0 | Shank d (mm): 8 | Flute length (mm): 13 | L (mm): 70 | Point angle: 60°
CET060100 D (mm): 10.0 | Shank d (mm): 10 | Flute length (mm): 16 | L (mm): 70 | Point angle: 60°
CET060120 D (mm): 12.0 | Shank d (mm): 12 | Flute length (mm): 18 | L (mm): 80 | Point angle: 60°
CET060160 D (mm): 16.0 | Shank d (mm): 16 | Flute length (mm): 24 | L (mm): 100 | Point angle: 60°
CET090030 D (mm): 3.0 | Shank d (mm): 3 | Flute length (mm): 5.5 | L (mm): 50 | Point angle: 90°
CET090040 D (mm): 4.0 | Shank d (mm): 4 | Flute length (mm): 7 | L (mm): 50 | Point angle: 90°
CET090060 D (mm): 6.0 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 60 | Point angle: 90°
CET090080 D (mm): 8.0 | Shank d (mm): 8 | Flute length (mm): 13 | L (mm): 70 | Point angle: 90°
CET090100 D (mm): 10.0 | Shank d (mm): 10 | Flute length (mm): 16 | L (mm): 70 | Point angle: 90°
CET090120 D (mm): 12.0 | Shank d (mm): 12 | Flute length (mm): 18 | L (mm): 80 | Point angle: 90°
CET090160 D (mm): 16.0 | Shank d (mm): 16 | Flute length (mm): 24 | L (mm): 100 | Point angle: 90°
CET120030 D (mm): 3.0 | Shank d (mm): 3 | Flute length (mm): 5.5 | L (mm): 50 | Point angle: 120°
CET120040 D (mm): 4.0 | Shank d (mm): 4 | Flute length (mm): 7 | L (mm): 50 | Point angle: 120°
CET120060 D (mm): 6.0 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 60 | Point angle: 120°
CET120080 D (mm): 8.0 | Shank d (mm): 8 | Flute length (mm): 13 | L (mm): 70 | Point angle: 120°
CET120100 D (mm): 10.0 | Shank d (mm): 10 | Flute length (mm): 16 | L (mm): 70 | Point angle: 120°
CET120120 D (mm): 12.0 | Shank d (mm): 12 | Flute length (mm): 18 | L (mm): 80 | Point angle: 120°
CET120160 D (mm): 16.0 | Shank d (mm): 16 | Flute length (mm): 24 | L (mm): 100 | Point angle: 120°
Chamfer ToolsKorloy
21 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Chamfer Tool CET

Brand Korloy·Chamfer Tools

Available part numbers (21)

CET060030, CET060040, CET060060, CET060080, CET060100, CET060120, CET060160, CET090030, CET090040, CET090060 + 11 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CET060030D (mm): 3.0 | Shank d (mm): 3 | Flute length (mm): 5.5 | L (mm): 50 | Point angle: 60°
CET060040D (mm): 4.0 | Shank d (mm): 4 | Flute length (mm): 7 | L (mm): 50 | Point angle: 60°
CET060060D (mm): 6.0 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 60 | Point angle: 60°
CET060080D (mm): 8.0 | Shank d (mm): 8 | Flute length (mm): 13 | L (mm): 70 | Point angle: 60°
CET060100D (mm): 10.0 | Shank d (mm): 10 | Flute length (mm): 16 | L (mm): 70 | Point angle: 60°
CET060120D (mm): 12.0 | Shank d (mm): 12 | Flute length (mm): 18 | L (mm): 80 | Point angle: 60°
CET060160D (mm): 16.0 | Shank d (mm): 16 | Flute length (mm): 24 | L (mm): 100 | Point angle: 60°
CET090030D (mm): 3.0 | Shank d (mm): 3 | Flute length (mm): 5.5 | L (mm): 50 | Point angle: 90°
CET090040D (mm): 4.0 | Shank d (mm): 4 | Flute length (mm): 7 | L (mm): 50 | Point angle: 90°
CET090060D (mm): 6.0 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 60 | Point angle: 90°
CET090080D (mm): 8.0 | Shank d (mm): 8 | Flute length (mm): 13 | L (mm): 70 | Point angle: 90°
CET090100D (mm): 10.0 | Shank d (mm): 10 | Flute length (mm): 16 | L (mm): 70 | Point angle: 90°
CET090120D (mm): 12.0 | Shank d (mm): 12 | Flute length (mm): 18 | L (mm): 80 | Point angle: 90°
CET090160D (mm): 16.0 | Shank d (mm): 16 | Flute length (mm): 24 | L (mm): 100 | Point angle: 90°
CET120030D (mm): 3.0 | Shank d (mm): 3 | Flute length (mm): 5.5 | L (mm): 50 | Point angle: 120°
CET120040D (mm): 4.0 | Shank d (mm): 4 | Flute length (mm): 7 | L (mm): 50 | Point angle: 120°
CET120060D (mm): 6.0 | Shank d (mm): 6 | Flute length (mm): 10 | L (mm): 60 | Point angle: 120°
CET120080D (mm): 8.0 | Shank d (mm): 8 | Flute length (mm): 13 | L (mm): 70 | Point angle: 120°
CET120100D (mm): 10.0 | Shank d (mm): 10 | Flute length (mm): 16 | L (mm): 70 | Point angle: 120°
CET120120D (mm): 12.0 | Shank d (mm): 12 | Flute length (mm): 18 | L (mm): 80 | Point angle: 120°
CET120160D (mm): 16.0 | Shank d (mm): 16 | Flute length (mm): 24 | L (mm): 100 | Point angle: 120°
