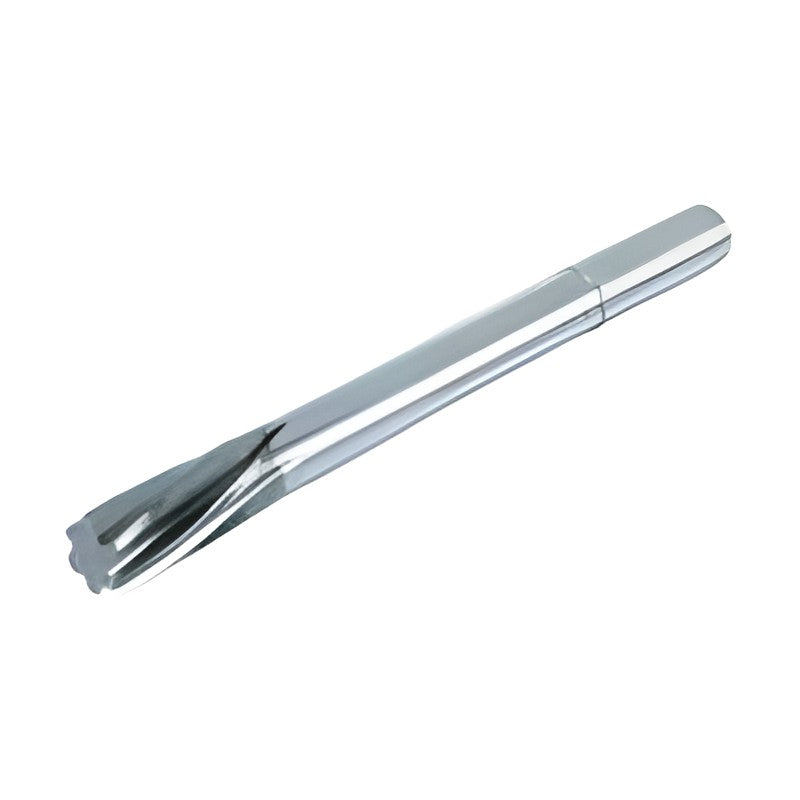

Korloy Chucking Reamer SCRH

Korloy Chucking Reamer SCRH

Straight shank solid carbide chucking reamer, Ø5 to Ø20 mm.

Key features

  • Straight shank
  • 4 or 6 flutes
SCRH050S No. of flutes: 4 | D (mm): 5.0 | Shank d (mm): 6.0 | l (mm): 20 | l1 (mm): 40 | L (mm): 100 | Figure: 1
SCRH060S No. of flutes: 4 | D (mm): 6.0 | Shank d (mm): 6.0 | l (mm): 20 | l1 (mm): 40 | L (mm): 115 | Figure: 1
SCRH070S No. of flutes: 4 | D (mm): 7.0 | Shank d (mm): 8.0 | l (mm): 20 | l1 (mm): 40 | L (mm): 125 | Figure: 1
SCRH080S No. of flutes: 4 | D (mm): 8.0 | Shank d (mm): 8.0 | l (mm): 20 | l1 (mm): 40 | L (mm): 135 | Figure: 1
SCRH090S No. of flutes: 4 | D (mm): 9.0 | Shank d (mm): 10.0 | l (mm): 20 | l1 (mm): 45 | L (mm): 140 | Figure: 1
SCRH100B No. of flutes: 4 | D (mm): 10.0 | Shank d (mm): 10.0 | l (mm): 25 | l1 (mm): 50 | L (mm): 145 | Figure: 2
SCRH110B No. of flutes: 4 | D (mm): 11.0 | Shank d (mm): 12.0 | l (mm): 25 | l1 (mm): 50 | L (mm): 150 | Figure: 2
SCRH120B No. of flutes: 4 | D (mm): 12.0 | Shank d (mm): 12.0 | l (mm): 25 | l1 (mm): 50 | L (mm): 160 | Figure: 2
SCRH130B No. of flutes: 4 | D (mm): 13.0 | Shank d (mm): 16.0 | l (mm): 25 | l1 (mm): 50 | L (mm): 165 | Figure: 2
SCRH140B No. of flutes: 6 | D (mm): 14.0 | Shank d (mm): 16.0 | l (mm): 25 | l1 (mm): 50 | L (mm): 170 | Figure: 2
SCRH150B No. of flutes: 6 | D (mm): 15.0 | Shank d (mm): 16.0 | l (mm): 30 | l1 (mm): 50 | L (mm): 180 | Figure: 2
SCRH160B No. of flutes: 6 | D (mm): 16.0 | Shank d (mm): 16.0 | l (mm): 30 | l1 (mm): 50 | L (mm): 190 | Figure: 2
SCRH180B No. of flutes: 6 | D (mm): 18.0 | Shank d (mm): 20.0 | l (mm): 30 | l1 (mm): 55 | L (mm): 210 | Figure: 2
SCRH200B No. of flutes: 6 | D (mm): 20.0 | Shank d (mm): 20.0 | l (mm): 40 | l1 (mm): 60 | L (mm): 230 | Figure: 2
ReamersKorloy
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Chucking Reamer SCRH

Brand Korloy·Reamers

Available part numbers (14)

SCRH050S, SCRH060S, SCRH070S, SCRH080S, SCRH090S, SCRH100B, SCRH110B, SCRH120B, SCRH130B, SCRH140B + 4 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCRH050SNo. of flutes: 4 | D (mm): 5.0 | Shank d (mm): 6.0 | l (mm): 20 | l1 (mm): 40 | L (mm): 100 | Figure: 1
SCRH060SNo. of flutes: 4 | D (mm): 6.0 | Shank d (mm): 6.0 | l (mm): 20 | l1 (mm): 40 | L (mm): 115 | Figure: 1
SCRH070SNo. of flutes: 4 | D (mm): 7.0 | Shank d (mm): 8.0 | l (mm): 20 | l1 (mm): 40 | L (mm): 125 | Figure: 1
SCRH080SNo. of flutes: 4 | D (mm): 8.0 | Shank d (mm): 8.0 | l (mm): 20 | l1 (mm): 40 | L (mm): 135 | Figure: 1
SCRH090SNo. of flutes: 4 | D (mm): 9.0 | Shank d (mm): 10.0 | l (mm): 20 | l1 (mm): 45 | L (mm): 140 | Figure: 1
SCRH100BNo. of flutes: 4 | D (mm): 10.0 | Shank d (mm): 10.0 | l (mm): 25 | l1 (mm): 50 | L (mm): 145 | Figure: 2
SCRH110BNo. of flutes: 4 | D (mm): 11.0 | Shank d (mm): 12.0 | l (mm): 25 | l1 (mm): 50 | L (mm): 150 | Figure: 2
SCRH120BNo. of flutes: 4 | D (mm): 12.0 | Shank d (mm): 12.0 | l (mm): 25 | l1 (mm): 50 | L (mm): 160 | Figure: 2
SCRH130BNo. of flutes: 4 | D (mm): 13.0 | Shank d (mm): 16.0 | l (mm): 25 | l1 (mm): 50 | L (mm): 165 | Figure: 2
SCRH140BNo. of flutes: 6 | D (mm): 14.0 | Shank d (mm): 16.0 | l (mm): 25 | l1 (mm): 50 | L (mm): 170 | Figure: 2
SCRH150BNo. of flutes: 6 | D (mm): 15.0 | Shank d (mm): 16.0 | l (mm): 30 | l1 (mm): 50 | L (mm): 180 | Figure: 2
SCRH160BNo. of flutes: 6 | D (mm): 16.0 | Shank d (mm): 16.0 | l (mm): 30 | l1 (mm): 50 | L (mm): 190 | Figure: 2
SCRH180BNo. of flutes: 6 | D (mm): 18.0 | Shank d (mm): 20.0 | l (mm): 30 | l1 (mm): 55 | L (mm): 210 | Figure: 2
SCRH200BNo. of flutes: 6 | D (mm): 20.0 | Shank d (mm): 20.0 | l (mm): 40 | l1 (mm): 60 | L (mm): 230 | Figure: 2
