Korloy Chucking Reamer SCRS

Korloy Chucking Reamer SCRS

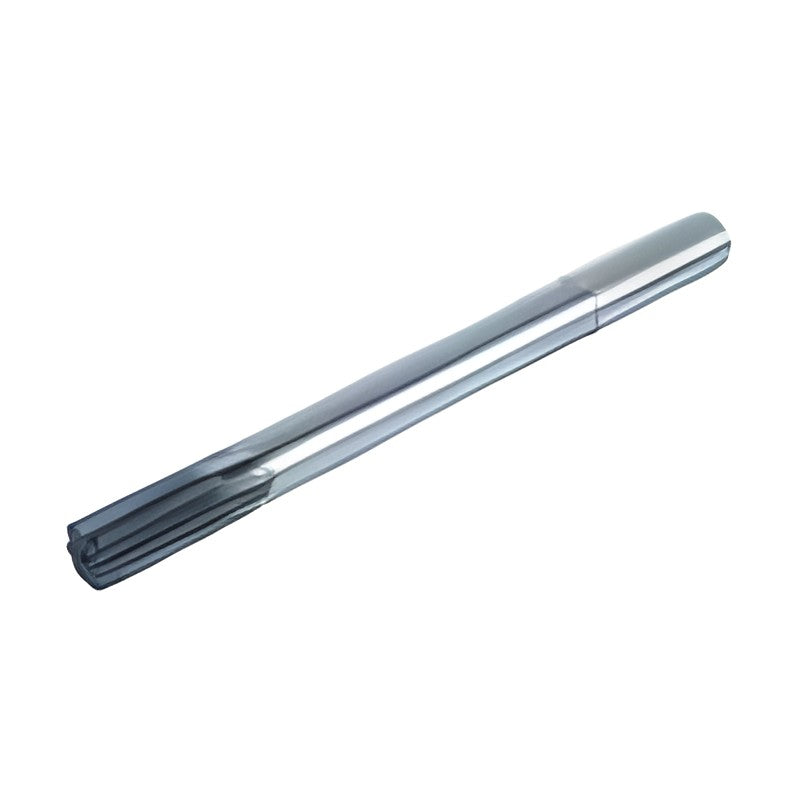

Straight shank solid carbide chucking reamer, Ø5 to Ø20 mm.

Key features

  • Straight shank
  • 4 or 6 flutes
SCRS050S No. of flutes: 4 | D (mm): 5.0 | Shank d (mm): 6.0 | l (mm): 20 | l1 (mm): 40 | L (mm): 100 | Figure: 1
SCRS060S No. of flutes: 4 | D (mm): 6.0 | Shank d (mm): 6.0 | l (mm): 20 | l1 (mm): 40 | L (mm): 115 | Figure: 1
SCRS070S No. of flutes: 4 | D (mm): 7.0 | Shank d (mm): 8.0 | l (mm): 20 | l1 (mm): 40 | L (mm): 125 | Figure: 1
SCRS080S No. of flutes: 4 | D (mm): 8.0 | Shank d (mm): 8.0 | l (mm): 20 | l1 (mm): 40 | L (mm): 135 | Figure: 1
SCRS090S No. of flutes: 4 | D (mm): 9.0 | Shank d (mm): 10.0 | l (mm): 20 | l1 (mm): 45 | L (mm): 140 | Figure: 1
SCRS100B No. of flutes: 4 | D (mm): 10.0 | Shank d (mm): 10.0 | l (mm): 25 | l1 (mm): 50 | L (mm): 145 | Figure: 2
SCRS110B No. of flutes: 4 | D (mm): 11.0 | Shank d (mm): 12.0 | l (mm): 25 | l1 (mm): 50 | L (mm): 150 | Figure: 2
SCRS120B No. of flutes: 4 | D (mm): 12.0 | Shank d (mm): 12.0 | l (mm): 25 | l1 (mm): 50 | L (mm): 160 | Figure: 2
SCRS130B No. of flutes: 4 | D (mm): 13.0 | Shank d (mm): 16.0 | l (mm): 25 | l1 (mm): 50 | L (mm): 165 | Figure: 2
SCRS140B No. of flutes: 6 | D (mm): 14.0 | Shank d (mm): 16.0 | l (mm): 25 | l1 (mm): 50 | L (mm): 170 | Figure: 2
SCRS150B No. of flutes: 6 | D (mm): 15.0 | Shank d (mm): 16.0 | l (mm): 30 | l1 (mm): 50 | L (mm): 180 | Figure: 2
SCRS160B No. of flutes: 6 | D (mm): 16.0 | Shank d (mm): 16.0 | l (mm): 30 | l1 (mm): 50 | L (mm): 190 | Figure: 2
SCRS180B No. of flutes: 6 | D (mm): 18.0 | Shank d (mm): 20.0 | l (mm): 30 | l1 (mm): 55 | L (mm): 210 | Figure: 2
SCRS200B No. of flutes: 6 | D (mm): 20.0 | Shank d (mm): 20.0 | l (mm): 40 | l1 (mm): 60 | L (mm): 230 | Figure: 2
ReamersKorloy
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Chucking Reamer SCRS

Brand Korloy·Reamers

Available part numbers (14)

SCRS050S, SCRS060S, SCRS070S, SCRS080S, SCRS090S, SCRS100B, SCRS110B, SCRS120B, SCRS130B, SCRS140B + 4 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCRS050SNo. of flutes: 4 | D (mm): 5.0 | Shank d (mm): 6.0 | l (mm): 20 | l1 (mm): 40 | L (mm): 100 | Figure: 1
SCRS060SNo. of flutes: 4 | D (mm): 6.0 | Shank d (mm): 6.0 | l (mm): 20 | l1 (mm): 40 | L (mm): 115 | Figure: 1
SCRS070SNo. of flutes: 4 | D (mm): 7.0 | Shank d (mm): 8.0 | l (mm): 20 | l1 (mm): 40 | L (mm): 125 | Figure: 1
SCRS080SNo. of flutes: 4 | D (mm): 8.0 | Shank d (mm): 8.0 | l (mm): 20 | l1 (mm): 40 | L (mm): 135 | Figure: 1
SCRS090SNo. of flutes: 4 | D (mm): 9.0 | Shank d (mm): 10.0 | l (mm): 20 | l1 (mm): 45 | L (mm): 140 | Figure: 1
SCRS100BNo. of flutes: 4 | D (mm): 10.0 | Shank d (mm): 10.0 | l (mm): 25 | l1 (mm): 50 | L (mm): 145 | Figure: 2
SCRS110BNo. of flutes: 4 | D (mm): 11.0 | Shank d (mm): 12.0 | l (mm): 25 | l1 (mm): 50 | L (mm): 150 | Figure: 2
SCRS120BNo. of flutes: 4 | D (mm): 12.0 | Shank d (mm): 12.0 | l (mm): 25 | l1 (mm): 50 | L (mm): 160 | Figure: 2
SCRS130BNo. of flutes: 4 | D (mm): 13.0 | Shank d (mm): 16.0 | l (mm): 25 | l1 (mm): 50 | L (mm): 165 | Figure: 2
SCRS140BNo. of flutes: 6 | D (mm): 14.0 | Shank d (mm): 16.0 | l (mm): 25 | l1 (mm): 50 | L (mm): 170 | Figure: 2
SCRS150BNo. of flutes: 6 | D (mm): 15.0 | Shank d (mm): 16.0 | l (mm): 30 | l1 (mm): 50 | L (mm): 180 | Figure: 2
SCRS160BNo. of flutes: 6 | D (mm): 16.0 | Shank d (mm): 16.0 | l (mm): 30 | l1 (mm): 50 | L (mm): 190 | Figure: 2
SCRS180BNo. of flutes: 6 | D (mm): 18.0 | Shank d (mm): 20.0 | l (mm): 30 | l1 (mm): 55 | L (mm): 210 | Figure: 2
SCRS200BNo. of flutes: 6 | D (mm): 20.0 | Shank d (mm): 20.0 | l (mm): 40 | l1 (mm): 60 | L (mm): 230 | Figure: 2
