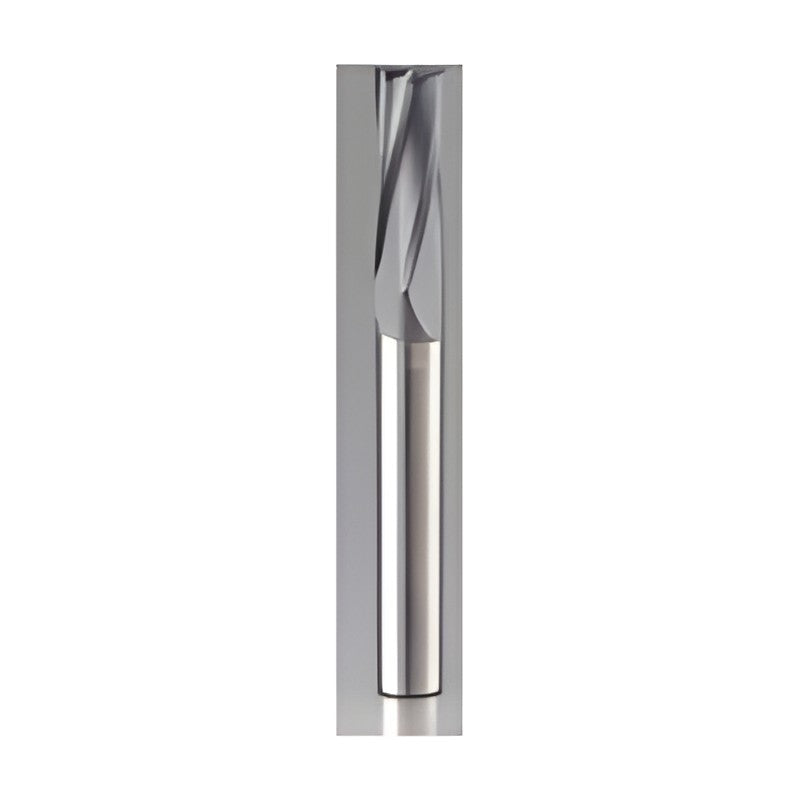

Korloy Composite Low-Helix Router Endmill CCLR

Composite router end mill series with diamond-coated ND2110 grade for CFRP and GFRP.

Key features

Nano-diamond coating over Hv 8,000
Resistance to friction, welding and flaking
For CFRP and GFRP

Specifications

Workpiece	CFRP / GFRP
Grade	ND2110

CCLR4040-050		Flutes: 4 \| Dia. (mm): 4.0 \| Length of cut (mm): 5.0 \| Unit: Metric
CCLR4050-050		Flutes: 4 \| Dia. (mm): 5.0 \| Length of cut (mm): 5.0 \| Unit: Metric
CCLR4060-065		Flutes: 4 \| Dia. (mm): 6.0 \| Length of cut (mm): 6.5 \| Unit: Metric
CCLR4080-075		Flutes: 4 \| Dia. (mm): 8.0 \| Length of cut (mm): 7.5 \| Unit: Metric
CCLR4100-085		Flutes: 4 \| Dia. (mm): 10.0 \| Length of cut (mm): 8.5 \| Unit: Metric
CCLR4120-100		Flutes: 4 \| Dia. (mm): 12.0 \| Length of cut (mm): 10.0 \| Unit: Metric
CCLR402500		Flutes: 4 \| Unit: Inch \| Length: Standard
CCLR402500L		Flutes: 4 \| Unit: Inch \| Length: Long
CCLR403750		Flutes: 4 \| Unit: Inch \| Length: Standard
CCLR403750L		Flutes: 4 \| Unit: Inch \| Length: Long
CCLR405000		Flutes: 4 \| Unit: Inch \| Length: Standard
CCLR405000L		Flutes: 4 \| Unit: Inch \| Length: Long

End MillsKorloy

12 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Composite Low-Helix Router Endmill CCLR

Brand Korloy·End Mills

Available part numbers (12)

CCLR4040-050, CCLR4050-050, CCLR4060-065, CCLR4080-075, CCLR4100-085, CCLR4120-100, CCLR402500, CCLR402500L, CCLR403750, CCLR403750L + 2 more — see full table ↓
