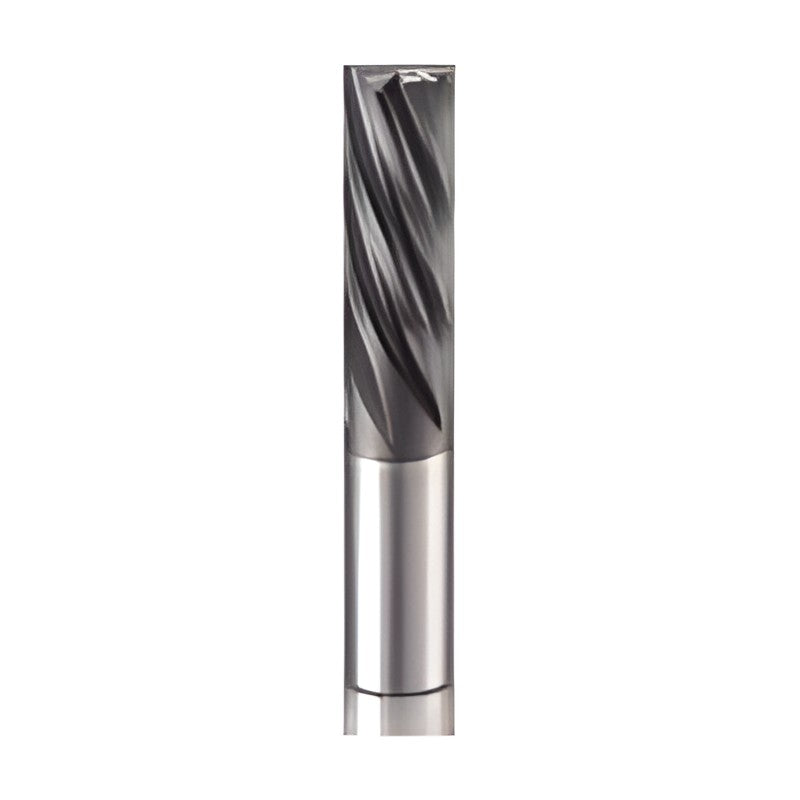

Korloy Composite Reverse-Helix Router Endmill CCRR

Korloy Composite Reverse-Helix Router Endmill CCRR

Composite router end mill series with diamond-coated ND2110 grade for CFRP and GFRP.

Key features

  • Nano-diamond coating over Hv 8,000
  • Resistance to friction, welding and flaking
  • For CFRP and GFRP

Specifications

Workpiece CFRP / GFRP
Grade ND2110
CCRR6060-065 Flutes: 6 | Dia. (mm): 6.0 | Length of cut (mm): 6.5 | Unit: Metric
CCRR6080-075 Flutes: 6 | Dia. (mm): 8.0 | Length of cut (mm): 7.5 | Unit: Metric
CCRR8100-085 Flutes: 8 | Dia. (mm): 10.0 | Length of cut (mm): 8.5 | Unit: Metric
CCRR8120-100 Flutes: 8 | Dia. (mm): 12.0 | Length of cut (mm): 10.0 | Unit: Metric
CCRR602500 Flutes: 6 | Unit: Inch | Length: Standard
CCRR602500L Flutes: 6 | Unit: Inch | Length: Long
CCRR803750 Flutes: 8 | Unit: Inch | Length: Standard
CCRR803750L Flutes: 8 | Unit: Inch | Length: Long
CCRR805000 Flutes: 8 | Unit: Inch | Length: Standard
CCRR805000L Flutes: 8 | Unit: Inch | Length: Long
End MillsKorloy
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Composite Reverse-Helix Router Endmill CCRR

Brand Korloy·End Mills

Available part numbers (10)

CCRR6060-065, CCRR6080-075, CCRR8100-085, CCRR8120-100, CCRR602500, CCRR602500L, CCRR803750, CCRR803750L, CCRR805000, CCRR805000L

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CCRR6060-065Flutes: 6 | Dia. (mm): 6.0 | Length of cut (mm): 6.5 | Unit: Metric
CCRR6080-075Flutes: 6 | Dia. (mm): 8.0 | Length of cut (mm): 7.5 | Unit: Metric
CCRR8100-085Flutes: 8 | Dia. (mm): 10.0 | Length of cut (mm): 8.5 | Unit: Metric
CCRR8120-100Flutes: 8 | Dia. (mm): 12.0 | Length of cut (mm): 10.0 | Unit: Metric
CCRR602500Flutes: 6 | Unit: Inch | Length: Standard
CCRR602500LFlutes: 6 | Unit: Inch | Length: Long
CCRR803750Flutes: 8 | Unit: Inch | Length: Standard
CCRR803750LFlutes: 8 | Unit: Inch | Length: Long
CCRR805000Flutes: 8 | Unit: Inch | Length: Standard
CCRR805000LFlutes: 8 | Unit: Inch | Length: Long
