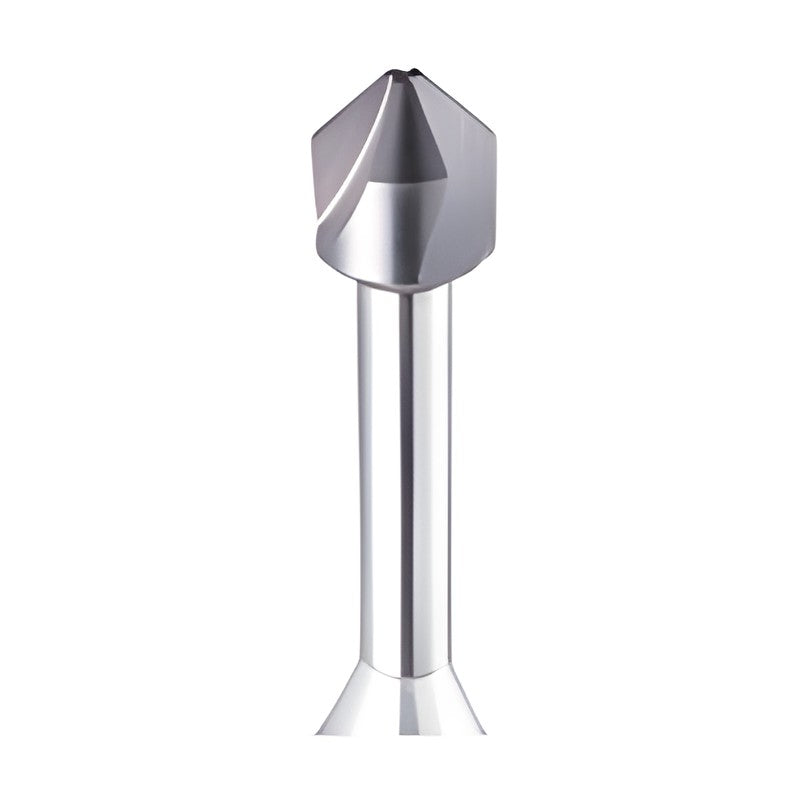

Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| CSNH3100-050 | D (mm): 10 | Shank d (mm): 6 | Diameter range (mm): 3~9 | L (mm): 50 | Point angle: 90° | ||
| CSNH3150-055 | D (mm): 15 | Shank d (mm): 8 | Diameter range (mm): 3~14 | L (mm): 55 | Point angle: 90° | ||
| CSNH3200-060 | D (mm): 20 | Shank d (mm): 10 | Diameter range (mm): 4~19 | L (mm): 60 | Point angle: 90° | ||
| CSNH3250-068 | D (mm): 25 | Shank d (mm): 12 | Diameter range (mm): 5~24 | L (mm): 68 | Point angle: 90° | ||
| CSNH3300-079 | D (mm): 30 | Shank d (mm): 12 | Diameter range (mm): 6~29 | L (mm): 79 | Point angle: 90° | ||
| CSNH3350-085 | D (mm): 35 | Shank d (mm): 12 | Diameter range (mm): 7~34 | L (mm): 85 | Point angle: 90° | ||
| CSNH3400-090 | D (mm): 40 | Shank d (mm): 12 | Diameter range (mm): 8~39 | L (mm): 90 | Point angle: 90° | ||
| CSNH3450-095 | D (mm): 45 | Shank d (mm): 16 | Diameter range (mm): 9~44 | L (mm): 95 | Point angle: 90° | ||
| CSNH3500-100 | D (mm): 50 | Shank d (mm): 16 | Diameter range (mm): 12~49 | L (mm): 100 | Point angle: 90° |
Need a different model, or a part not listed here? Send us your parts list →
