• Korloy DBC Rough Boring Head
1 1

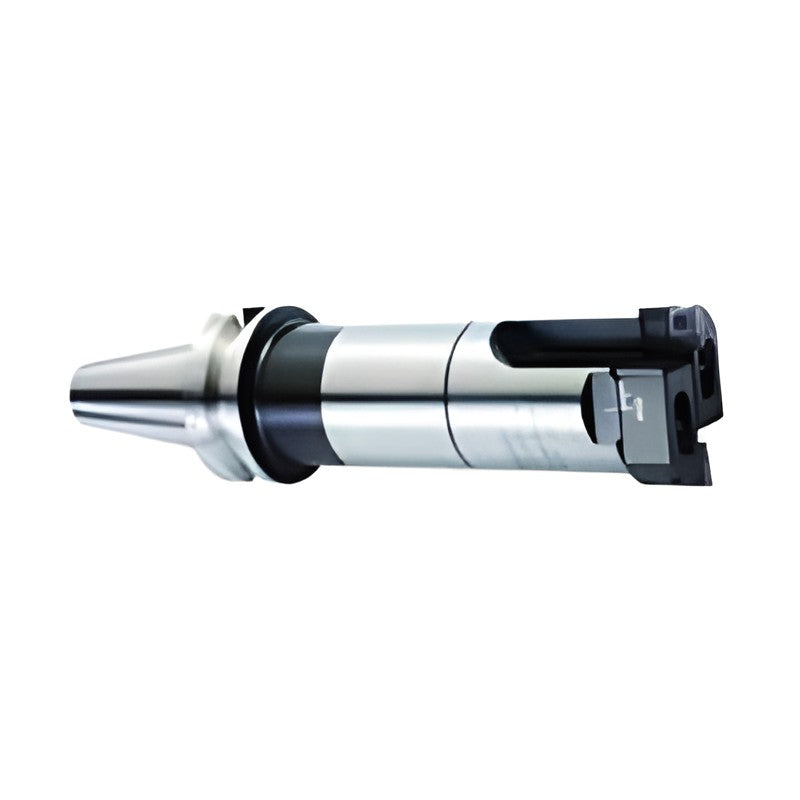

Korloy DBC Rough Boring Head

Korloy DBC Rough Boring Head

Twin-cutter rough boring head for modular MD bodies, boring range Ø28 to Ø175 mm.

Key features

  • Balanced twin cartridge rough boring
  • Mounts on BT30/BT40/BT50 MD modular bodies
  • Replaceable cartridges
DBC2528S Boring range D (mm): 28~35 | Head weight (kg): 0.3 | Compatible bodies: BT30-MD25F-90R, BT40-MD25F-105R, BT50-MD25F-120R
DBC3235S Boring range D (mm): 35~46 | Head weight (kg): 0.4 | Compatible bodies: BT30-MD32F-80R, BT40-MD32F-115R, BT50-MD32F-235R
DBC4046S Boring range D (mm): 46~58 | Head weight (kg): 0.6 | Compatible bodies: BT30-MD40F-80R, BT40-MD40F-110R, BT50-MD40F-230R
DBC5058S Boring range D (mm): 58~74 | Head weight (kg): 1.1 | Compatible bodies: BT30-MD50F-70, BT40-MD50F-100R, BT50-MD50F-250R
DBC6374S Boring range D (mm): 74~94 | Head weight (kg): 2.0 | Compatible bodies: BT40-MD63F-90, BT50-MD63F-240R, SP1018
DBC8094S Boring range D (mm): 94~120 | Head weight (kg): 3.5 | Compatible bodies: BT40-MD80F-100, BT50-MD80F-175, SP1020
DBC120S Boring range D (mm): 120~175 | Head weight (kg): 5.3 | Compatible bodies: BT50-MD80F-175
Boring HeadsKorloy
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy DBC Rough Boring Head

Brand Korloy·Boring Heads

Available part numbers (7)

DBC2528S, DBC3235S, DBC4046S, DBC5058S, DBC6374S, DBC8094S, DBC120S

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DBC2528SBoring range D (mm): 28~35 | Head weight (kg): 0.3 | Compatible bodies: BT30-MD25F-90R, BT40-MD25F-105R, BT50-MD25F-120R
DBC3235SBoring range D (mm): 35~46 | Head weight (kg): 0.4 | Compatible bodies: BT30-MD32F-80R, BT40-MD32F-115R, BT50-MD32F-235R
DBC4046SBoring range D (mm): 46~58 | Head weight (kg): 0.6 | Compatible bodies: BT30-MD40F-80R, BT40-MD40F-110R, BT50-MD40F-230R
DBC5058SBoring range D (mm): 58~74 | Head weight (kg): 1.1 | Compatible bodies: BT30-MD50F-70, BT40-MD50F-100R, BT50-MD50F-250R
DBC6374SBoring range D (mm): 74~94 | Head weight (kg): 2.0 | Compatible bodies: BT40-MD63F-90, BT50-MD63F-240R, SP1018
DBC8094SBoring range D (mm): 94~120 | Head weight (kg): 3.5 | Compatible bodies: BT40-MD80F-100, BT50-MD80F-175, SP1020
DBC120SBoring range D (mm): 120~175 | Head weight (kg): 5.3 | Compatible bodies: BT50-MD80F-175

Need a different model, or a part not listed here? Send us your parts list →
