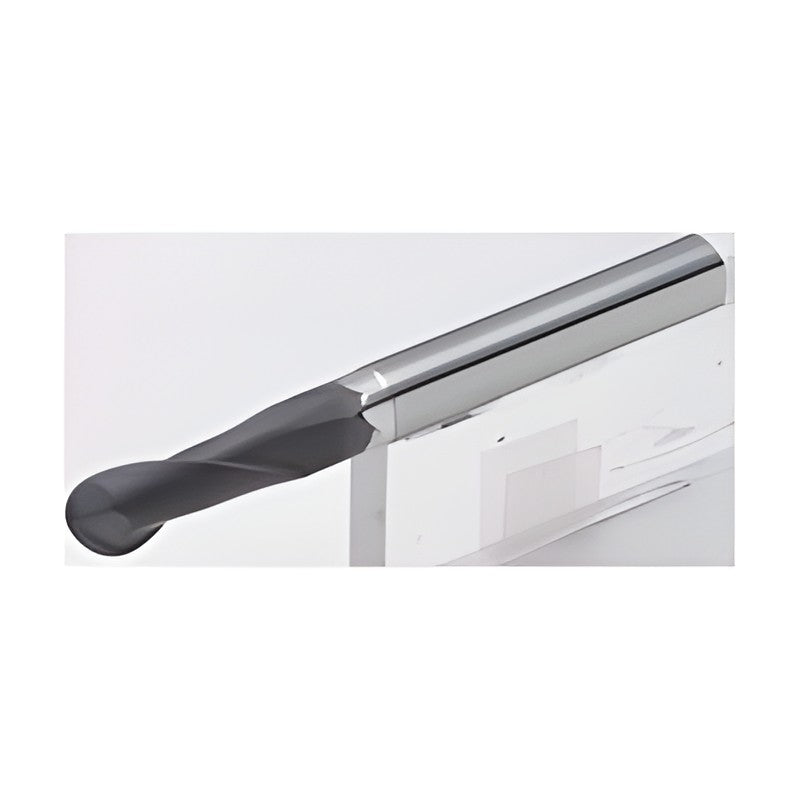

Korloy DBE2000 Diamond Coated Ball End Mill

Korloy DBE2000 Diamond Coated Ball End Mill

Diamond coated solid carbide end mill with tangential cutting-edge geometry for excellent surface finish and wear resistance, e.g. on graphite molds.

Key features

  • Tangential cutting-edge geometry
  • High hardness, high purity diamond coating
  • Prevents stepped cone on the machined surface

Specifications

Grade ND3000 (diamond coated)
Helix angle 30 deg
Shank tolerance h6
DBE2006-045-N020S04 Ball radius R (mm): 0.3 | Dia. D (mm): 0.6 | Shank dia. d (mm): 4 | l1 (mm): 2 | l2 (mm): 2 | Overall length L (mm): 45 | Flutes: 2
DBE2006-045-N050S04 Ball radius R (mm): 0.3 | Dia. D (mm): 0.6 | Shank dia. d (mm): 4 | l1 (mm): 2 | l2 (mm): 5 | Overall length L (mm): 45 | Flutes: 2
DBE2006-045-N080S04 Ball radius R (mm): 0.3 | Dia. D (mm): 0.6 | Shank dia. d (mm): 4 | l1 (mm): 2 | l2 (mm): 8 | Overall length L (mm): 45 | Flutes: 2
DBE2006-045-N100S04 Ball radius R (mm): 0.3 | Dia. D (mm): 0.6 | Shank dia. d (mm): 4 | l1 (mm): 2 | l2 (mm): 10 | Overall length L (mm): 45 | Flutes: 2
DBE2008-045-N030S04 Ball radius R (mm): 0.4 | Dia. D (mm): 0.8 | Shank dia. d (mm): 4 | l1 (mm): 2.5 | l2 (mm): 3 | Overall length L (mm): 45 | Flutes: 2
DBE2008-045-N050S04 Ball radius R (mm): 0.4 | Dia. D (mm): 0.8 | Shank dia. d (mm): 4 | l1 (mm): 2.5 | l2 (mm): 5 | Overall length L (mm): 45 | Flutes: 2
DBE2008-045-N100S04 Ball radius R (mm): 0.4 | Dia. D (mm): 0.8 | Shank dia. d (mm): 4 | l1 (mm): 2.5 | l2 (mm): 10 | Overall length L (mm): 45 | Flutes: 2
DBE2010-060-N030S04 Ball radius R (mm): 0.5 | Dia. D (mm): 1 | Shank dia. d (mm): 4 | l1 (mm): 3 | l2 (mm): 3 | Overall length L (mm): 60 | Flutes: 2
DBE2010-060-N050S04 Ball radius R (mm): 0.5 | Dia. D (mm): 1 | Shank dia. d (mm): 4 | l1 (mm): 3 | l2 (mm): 5 | Overall length L (mm): 60 | Flutes: 2
DBE2010-060-N080S04 Ball radius R (mm): 0.5 | Dia. D (mm): 1 | Shank dia. d (mm): 4 | l1 (mm): 3 | l2 (mm): 8 | Overall length L (mm): 60 | Flutes: 2
DBE2010-060-N100S04 Ball radius R (mm): 0.5 | Dia. D (mm): 1 | Shank dia. d (mm): 4 | l1 (mm): 3 | l2 (mm): 10 | Overall length L (mm): 60 | Flutes: 2
DBE2010-060-N120S04 Ball radius R (mm): 0.5 | Dia. D (mm): 1 | Shank dia. d (mm): 4 | l1 (mm): 3 | l2 (mm): 12 | Overall length L (mm): 60 | Flutes: 2
DBE2010-060-N150S04 Ball radius R (mm): 0.5 | Dia. D (mm): 1 | Shank dia. d (mm): 4 | l1 (mm): 3 | l2 (mm): 15 | Overall length L (mm): 60 | Flutes: 2
DBE2010-060-N200S04 Ball radius R (mm): 0.5 | Dia. D (mm): 1 | Shank dia. d (mm): 4 | l1 (mm): 3 | l2 (mm): 20 | Overall length L (mm): 60 | Flutes: 2
DBE2010-080-N250S04 Ball radius R (mm): 0.5 | Dia. D (mm): 1 | Shank dia. d (mm): 4 | l1 (mm): 3 | l2 (mm): 25 | Overall length L (mm): 80 | Flutes: 2
DBE2010-080-N300S04 Ball radius R (mm): 0.5 | Dia. D (mm): 1 | Shank dia. d (mm): 4 | l1 (mm): 3 | l2 (mm): 30 | Overall length L (mm): 80 | Flutes: 2
DBE2010-080-N350S04 Ball radius R (mm): 0.5 | Dia. D (mm): 1 | Shank dia. d (mm): 4 | l1 (mm): 3 | l2 (mm): 35 | Overall length L (mm): 80 | Flutes: 2
DBE2010-080-N400S04 Ball radius R (mm): 0.5 | Dia. D (mm): 1 | Shank dia. d (mm): 4 | l1 (mm): 3 | l2 (mm): 40 | Overall length L (mm): 80 | Flutes: 2
DBE2015-060-N050S04 Ball radius R (mm): 0.75 | Dia. D (mm): 1.5 | Shank dia. d (mm): 4 | l1 (mm): 4 | l2 (mm): 5 | Overall length L (mm): 60 | Flutes: 2
DBE2015-080-N100S04 Ball radius R (mm): 0.75 | Dia. D (mm): 1.5 | Shank dia. d (mm): 4 | l1 (mm): 4 | l2 (mm): 10 | Overall length L (mm): 80 | Flutes: 2
DBE2015-080-N150S04 Ball radius R (mm): 0.75 | Dia. D (mm): 1.5 | Shank dia. d (mm): 4 | l1 (mm): 4 | l2 (mm): 15 | Overall length L (mm): 80 | Flutes: 2
DBE2015-080-N200S04 Ball radius R (mm): 0.75 | Dia. D (mm): 1.5 | Shank dia. d (mm): 4 | l1 (mm): 4 | l2 (mm): 20 | Overall length L (mm): 80 | Flutes: 2
DBE2015-080-N250S04 Ball radius R (mm): 0.75 | Dia. D (mm): 1.5 | Shank dia. d (mm): 4 | l1 (mm): 4 | l2 (mm): 25 | Overall length L (mm): 80 | Flutes: 2
DBE2015-080-N300S04 Ball radius R (mm): 0.75 | Dia. D (mm): 1.5 | Shank dia. d (mm): 4 | l1 (mm): 4 | l2 (mm): 30 | Overall length L (mm): 80 | Flutes: 2
DBE2015-080-N350S04 Ball radius R (mm): 0.75 | Dia. D (mm): 1.5 | Shank dia. d (mm): 4 | l1 (mm): 4 | l2 (mm): 35 | Overall length L (mm): 80 | Flutes: 2
DBE2015-080-N400S04 Ball radius R (mm): 0.75 | Dia. D (mm): 1.5 | Shank dia. d (mm): 4 | l1 (mm): 4 | l2 (mm): 40 | Overall length L (mm): 80 | Flutes: 2
DBE2020-060-N080S04 Ball radius R (mm): 1 | Dia. D (mm): 2 | Shank dia. d (mm): 4 | l1 (mm): 6 | l2 (mm): 8 | Overall length L (mm): 60 | Flutes: 2
DBE2020-080-N100S04 Ball radius R (mm): 1 | Dia. D (mm): 2 | Shank dia. d (mm): 4 | l1 (mm): 6 | l2 (mm): 10 | Overall length L (mm): 80 | Flutes: 2
DBE2020-080-N150S04 Ball radius R (mm): 1 | Dia. D (mm): 2 | Shank dia. d (mm): 4 | l1 (mm): 6 | l2 (mm): 15 | Overall length L (mm): 80 | Flutes: 2
DBE2020-080-N200S04 Ball radius R (mm): 1 | Dia. D (mm): 2 | Shank dia. d (mm): 4 | l1 (mm): 6 | l2 (mm): 20 | Overall length L (mm): 80 | Flutes: 2
DBE2020-080-N250S04 Ball radius R (mm): 1 | Dia. D (mm): 2 | Shank dia. d (mm): 4 | l1 (mm): 6 | l2 (mm): 25 | Overall length L (mm): 80 | Flutes: 2
DBE2020-080-N300S04 Ball radius R (mm): 1 | Dia. D (mm): 2 | Shank dia. d (mm): 4 | l1 (mm): 6 | l2 (mm): 30 | Overall length L (mm): 80 | Flutes: 2
DBE2020-080-N350S04 Ball radius R (mm): 1 | Dia. D (mm): 2 | Shank dia. d (mm): 4 | l1 (mm): 6 | l2 (mm): 35 | Overall length L (mm): 80 | Flutes: 2
DBE2020-100-N400S04 Ball radius R (mm): 1 | Dia. D (mm): 2 | Shank dia. d (mm): 4 | l1 (mm): 6 | l2 (mm): 40 | Overall length L (mm): 100 | Flutes: 2
DBE2020-100-N450S04 Ball radius R (mm): 1 | Dia. D (mm): 2 | Shank dia. d (mm): 4 | l1 (mm): 6 | l2 (mm): 45 | Overall length L (mm): 100 | Flutes: 2
DBE2020-100-N500S04 Ball radius R (mm): 1 | Dia. D (mm): 2 | Shank dia. d (mm): 4 | l1 (mm): 6 | l2 (mm): 50 | Overall length L (mm): 100 | Flutes: 2
DBE2030-060-N100S04 Ball radius R (mm): 1.5 | Dia. D (mm): 3 | Shank dia. d (mm): 4 | l1 (mm): 9 | l2 (mm): 10 | Overall length L (mm): 60 | Flutes: 2
DBE2030-100-N150S04 Ball radius R (mm): 1.5 | Dia. D (mm): 3 | Shank dia. d (mm): 4 | l1 (mm): 9 | l2 (mm): 15 | Overall length L (mm): 100 | Flutes: 2
DBE2030-100-N200S04 Ball radius R (mm): 1.5 | Dia. D (mm): 3 | Shank dia. d (mm): 4 | l1 (mm): 9 | l2 (mm): 20 | Overall length L (mm): 100 | Flutes: 2
DBE2030-100-N250S04 Ball radius R (mm): 1.5 | Dia. D (mm): 3 | Shank dia. d (mm): 4 | l1 (mm): 9 | l2 (mm): 25 | Overall length L (mm): 100 | Flutes: 2
DBE2030-100-N300S04 Ball radius R (mm): 1.5 | Dia. D (mm): 3 | Shank dia. d (mm): 4 | l1 (mm): 9 | l2 (mm): 30 | Overall length L (mm): 100 | Flutes: 2
DBE2030-100-N350S04 Ball radius R (mm): 1.5 | Dia. D (mm): 3 | Shank dia. d (mm): 4 | l1 (mm): 9 | l2 (mm): 35 | Overall length L (mm): 100 | Flutes: 2
DBE2030-100-N400S04 Ball radius R (mm): 1.5 | Dia. D (mm): 3 | Shank dia. d (mm): 4 | l1 (mm): 9 | l2 (mm): 40 | Overall length L (mm): 100 | Flutes: 2
DBE2030-100-N500S04 Ball radius R (mm): 1.5 | Dia. D (mm): 3 | Shank dia. d (mm): 4 | l1 (mm): 9 | l2 (mm): 50 | Overall length L (mm): 100 | Flutes: 2
DBE2040-060-N160S04 Ball radius R (mm): 2 | Dia. D (mm): 4 | Shank dia. d (mm): 4 | l1 (mm): 12 | l2 (mm): 16 | Overall length L (mm): 60 | Flutes: 2
DBE2040-080-N160S04 Ball radius R (mm): 2 | Dia. D (mm): 4 | Shank dia. d (mm): 4 | l1 (mm): 12 | l2 (mm): 16 | Overall length L (mm): 80 | Flutes: 2
DBE2040-080-N300S04 Ball radius R (mm): 2 | Dia. D (mm): 4 | Shank dia. d (mm): 4 | l1 (mm): 12 | l2 (mm): 30 | Overall length L (mm): 80 | Flutes: 2
DBE2040-100-N160S04 Ball radius R (mm): 2 | Dia. D (mm): 4 | Shank dia. d (mm): 4 | l1 (mm): 12 | l2 (mm): 16 | Overall length L (mm): 100 | Flutes: 2
DBE2040-100-N400S04 Ball radius R (mm): 2 | Dia. D (mm): 4 | Shank dia. d (mm): 4 | l1 (mm): 12 | l2 (mm): 40 | Overall length L (mm): 100 | Flutes: 2
DBE2040-130-N160S04 Ball radius R (mm): 2 | Dia. D (mm): 4 | Shank dia. d (mm): 4 | l1 (mm): 12 | l2 (mm): 16 | Overall length L (mm): 130 | Flutes: 2
DBE2040-130-N400S04 Ball radius R (mm): 2 | Dia. D (mm): 4 | Shank dia. d (mm): 4 | l1 (mm): 12 | l2 (mm): 40 | Overall length L (mm): 130 | Flutes: 2
DBE2050-110-N200S06 Ball radius R (mm): 2.5 | Dia. D (mm): 5 | Shank dia. d (mm): 6 | l1 (mm): 15 | l2 (mm): 20 | Overall length L (mm): 110 | Flutes: 2
DBE2060-080-N250S06 Ball radius R (mm): 3 | Dia. D (mm): 6 | Shank dia. d (mm): 6 | l1 (mm): 20 | l2 (mm): 25 | Overall length L (mm): 80 | Flutes: 2
DBE2060-110-N250S06 Ball radius R (mm): 3 | Dia. D (mm): 6 | Shank dia. d (mm): 6 | l1 (mm): 20 | l2 (mm): 25 | Overall length L (mm): 110 | Flutes: 2
DBE2060-150-N300S06 Ball radius R (mm): 3 | Dia. D (mm): 6 | Shank dia. d (mm): 6 | l1 (mm): 20 | l2 (mm): 30 | Overall length L (mm): 150 | Flutes: 2
DBE2080-080-N300S08 Ball radius R (mm): 4 | Dia. D (mm): 8 | Shank dia. d (mm): 8 | l1 (mm): 25 | l2 (mm): 30 | Overall length L (mm): 80 | Flutes: 2
DBE2080-110-N300S08 Ball radius R (mm): 4 | Dia. D (mm): 8 | Shank dia. d (mm): 8 | l1 (mm): 25 | l2 (mm): 30 | Overall length L (mm): 110 | Flutes: 2
DBE2080-150-N500S08 Ball radius R (mm): 4 | Dia. D (mm): 8 | Shank dia. d (mm): 8 | l1 (mm): 25 | l2 (mm): 50 | Overall length L (mm): 150 | Flutes: 2
DBE2080-200-N400S08 Ball radius R (mm): 4 | Dia. D (mm): 8 | Shank dia. d (mm): 8 | l1 (mm): 25 | l2 (mm): 40 | Overall length L (mm): 200 | Flutes: 2
DBE2100-080-N400S10 Ball radius R (mm): 5 | Dia. D (mm): 10 | Shank dia. d (mm): 10 | l1 (mm): 30 | l2 (mm): 40 | Overall length L (mm): 80 | Flutes: 2
DBE2100-110-N400S10 Ball radius R (mm): 5 | Dia. D (mm): 10 | Shank dia. d (mm): 10 | l1 (mm): 30 | l2 (mm): 40 | Overall length L (mm): 110 | Flutes: 2
DBE2100-150-N600S10 Ball radius R (mm): 5 | Dia. D (mm): 10 | Shank dia. d (mm): 10 | l1 (mm): 30 | l2 (mm): 60 | Overall length L (mm): 150 | Flutes: 2
DBE2100-200-N500S10 Ball radius R (mm): 5 | Dia. D (mm): 10 | Shank dia. d (mm): 10 | l1 (mm): 30 | l2 (mm): 50 | Overall length L (mm): 200 | Flutes: 2
DBE2120-110-N500S12 Ball radius R (mm): 6 | Dia. D (mm): 12 | Shank dia. d (mm): 12 | l1 (mm): 35 | l2 (mm): 50 | Overall length L (mm): 110 | Flutes: 2
DBE2120-150-N500S12 Ball radius R (mm): 6 | Dia. D (mm): 12 | Shank dia. d (mm): 12 | l1 (mm): 35 | l2 (mm): 50 | Overall length L (mm): 150 | Flutes: 2
DBE2120-200-N600S12 Ball radius R (mm): 6 | Dia. D (mm): 12 | Shank dia. d (mm): 12 | l1 (mm): 35 | l2 (mm): 60 | Overall length L (mm): 200 | Flutes: 2
Ball End MillsKorloy
66 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy DBE2000 Diamond Coated Ball End Mill

Brand Korloy·Ball End Mills

Available part numbers (66)

DBE2006-045-N020S04, DBE2006-045-N050S04, DBE2006-045-N080S04, DBE2006-045-N100S04, DBE2008-045-N030S04, DBE2008-045-N050S04, DBE2008-045-N100S04, DBE2010-060-N030S04, DBE2010-060-N050S04, DBE2010-060-N080S04 + 56 more — see full table ↓
