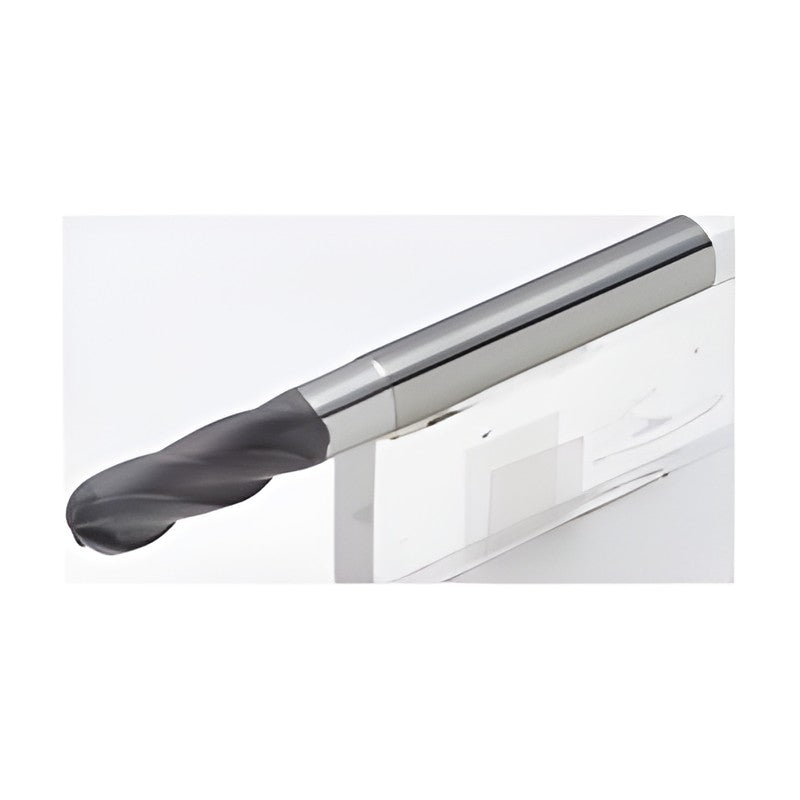

Korloy DBE4000 Diamond Coated Ball End Mill

Korloy DBE4000 Diamond Coated Ball End Mill

Diamond coated solid carbide end mill with tangential cutting-edge geometry for excellent surface finish and wear resistance, e.g. on graphite molds.

Key features

  • Tangential cutting-edge geometry
  • High hardness, high purity diamond coating
  • Prevents stepped cone on the machined surface

Specifications

Grade ND3000 (diamond coated)
Helix angle 30 deg
Shank tolerance h6
DBE4020-060-N080S04 Ball radius R (mm): 1 | Dia. D (mm): 2 | Shank dia. d (mm): 4 | l1 (mm): 6 | l2 (mm): 8 | Overall length L (mm): 60 | Flutes: 4
DBE4020-080-N100S04 Ball radius R (mm): 1 | Dia. D (mm): 2 | Shank dia. d (mm): 4 | l1 (mm): 6 | l2 (mm): 10 | Overall length L (mm): 80 | Flutes: 4
DBE4020-080-N200S04 Ball radius R (mm): 1 | Dia. D (mm): 2 | Shank dia. d (mm): 4 | l1 (mm): 6 | l2 (mm): 20 | Overall length L (mm): 80 | Flutes: 4
DBE4020-080-N300S04 Ball radius R (mm): 1 | Dia. D (mm): 2 | Shank dia. d (mm): 4 | l1 (mm): 6 | l2 (mm): 30 | Overall length L (mm): 80 | Flutes: 4
DBE4020-080-N400S04 Ball radius R (mm): 1 | Dia. D (mm): 2 | Shank dia. d (mm): 4 | l1 (mm): 6 | l2 (mm): 40 | Overall length L (mm): 80 | Flutes: 4
DBE4030-060-N100S04 Ball radius R (mm): 1.5 | Dia. D (mm): 3 | Shank dia. d (mm): 4 | l1 (mm): 9 | l2 (mm): 10 | Overall length L (mm): 60 | Flutes: 4
DBE4030-100-N150S04 Ball radius R (mm): 1.5 | Dia. D (mm): 3 | Shank dia. d (mm): 4 | l1 (mm): 9 | l2 (mm): 15 | Overall length L (mm): 100 | Flutes: 4
DBE4030-100-N200S04 Ball radius R (mm): 1.5 | Dia. D (mm): 3 | Shank dia. d (mm): 4 | l1 (mm): 9 | l2 (mm): 20 | Overall length L (mm): 100 | Flutes: 4
DBE4030-100-N300S04 Ball radius R (mm): 1.5 | Dia. D (mm): 3 | Shank dia. d (mm): 4 | l1 (mm): 9 | l2 (mm): 30 | Overall length L (mm): 100 | Flutes: 4
DBE4030-100-N400S04 Ball radius R (mm): 1.5 | Dia. D (mm): 3 | Shank dia. d (mm): 4 | l1 (mm): 9 | l2 (mm): 40 | Overall length L (mm): 100 | Flutes: 4
DBE4030-100-N500S04 Ball radius R (mm): 1.5 | Dia. D (mm): 3 | Shank dia. d (mm): 4 | l1 (mm): 9 | l2 (mm): 50 | Overall length L (mm): 100 | Flutes: 4
DBE4040-060-N160S04 Ball radius R (mm): 2 | Dia. D (mm): 4 | Shank dia. d (mm): 4 | l1 (mm): 12 | l2 (mm): 16 | Overall length L (mm): 60 | Flutes: 4
DBE4040-080-N160S04 Ball radius R (mm): 2 | Dia. D (mm): 4 | Shank dia. d (mm): 4 | l1 (mm): 12 | l2 (mm): 16 | Overall length L (mm): 80 | Flutes: 4
DBE4040-100-N160S04 Ball radius R (mm): 2 | Dia. D (mm): 4 | Shank dia. d (mm): 4 | l1 (mm): 12 | l2 (mm): 16 | Overall length L (mm): 100 | Flutes: 4
DBE4040-130-N160S04 Ball radius R (mm): 2 | Dia. D (mm): 4 | Shank dia. d (mm): 4 | l1 (mm): 12 | l2 (mm): 16 | Overall length L (mm): 130 | Flutes: 4
DBE4060-080-N250S06 Ball radius R (mm): 3 | Dia. D (mm): 6 | Shank dia. d (mm): 6 | l1 (mm): 20 | l2 (mm): 25 | Overall length L (mm): 80 | Flutes: 4
DBE4060-110-N250S06 Ball radius R (mm): 3 | Dia. D (mm): 6 | Shank dia. d (mm): 6 | l1 (mm): 20 | l2 (mm): 25 | Overall length L (mm): 110 | Flutes: 4
DBE4060-150-N300S06 Ball radius R (mm): 3 | Dia. D (mm): 6 | Shank dia. d (mm): 6 | l1 (mm): 20 | l2 (mm): 30 | Overall length L (mm): 150 | Flutes: 4
DBE4080-080-N300S08 Ball radius R (mm): 4 | Dia. D (mm): 8 | Shank dia. d (mm): 8 | l1 (mm): 25 | l2 (mm): 30 | Overall length L (mm): 80 | Flutes: 4
DBE4080-110-N300S08 Ball radius R (mm): 4 | Dia. D (mm): 8 | Shank dia. d (mm): 8 | l1 (mm): 25 | l2 (mm): 30 | Overall length L (mm): 110 | Flutes: 4
DBE4080-150-N350S08 Ball radius R (mm): 4 | Dia. D (mm): 8 | Shank dia. d (mm): 8 | l1 (mm): 25 | l2 (mm): 35 | Overall length L (mm): 150 | Flutes: 4
DBE4080-200-N400S08 Ball radius R (mm): 4 | Dia. D (mm): 8 | Shank dia. d (mm): 8 | l1 (mm): 25 | l2 (mm): 40 | Overall length L (mm): 200 | Flutes: 4
DBE4100-080-N350S10 Ball radius R (mm): 5 | Dia. D (mm): 10 | Shank dia. d (mm): 10 | l1 (mm): 30 | l2 (mm): 35 | Overall length L (mm): 80 | Flutes: 4
DBE4100-110-N350S10 Ball radius R (mm): 5 | Dia. D (mm): 10 | Shank dia. d (mm): 10 | l1 (mm): 30 | l2 (mm): 35 | Overall length L (mm): 110 | Flutes: 4
DBE4100-150-N400S10 Ball radius R (mm): 5 | Dia. D (mm): 10 | Shank dia. d (mm): 10 | l1 (mm): 30 | l2 (mm): 40 | Overall length L (mm): 150 | Flutes: 4
DBE4100-200-N500S10 Ball radius R (mm): 5 | Dia. D (mm): 10 | Shank dia. d (mm): 10 | l1 (mm): 30 | l2 (mm): 50 | Overall length L (mm): 200 | Flutes: 4
DBE4120-110-N500S12 Ball radius R (mm): 6 | Dia. D (mm): 12 | Shank dia. d (mm): 12 | l1 (mm): 35 | l2 (mm): 50 | Overall length L (mm): 110 | Flutes: 4
DBE4120-150-N500S12 Ball radius R (mm): 6 | Dia. D (mm): 12 | Shank dia. d (mm): 12 | l1 (mm): 35 | l2 (mm): 50 | Overall length L (mm): 150 | Flutes: 4
DBE4120-200-N600S12 Ball radius R (mm): 6 | Dia. D (mm): 12 | Shank dia. d (mm): 12 | l1 (mm): 35 | l2 (mm): 60 | Overall length L (mm): 200 | Flutes: 4
Ball End MillsKorloy
29 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy DBE4000 Diamond Coated Ball End Mill

Brand Korloy·Ball End Mills

Available part numbers (29)

DBE4020-060-N080S04, DBE4020-080-N100S04, DBE4020-080-N200S04, DBE4020-080-N300S04, DBE4020-080-N400S04, DBE4030-060-N100S04, DBE4030-100-N150S04, DBE4030-100-N200S04, DBE4030-100-N300S04, DBE4030-100-N400S04 + 19 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DBE4020-060-N080S04Ball radius R (mm): 1 | Dia. D (mm): 2 | Shank dia. d (mm): 4 | l1 (mm): 6 | l2 (mm): 8 | Overall length L (mm): 60 | Flutes: 4
DBE4020-080-N100S04Ball radius R (mm): 1 | Dia. D (mm): 2 | Shank dia. d (mm): 4 | l1 (mm): 6 | l2 (mm): 10 | Overall length L (mm): 80 | Flutes: 4
DBE4020-080-N200S04Ball radius R (mm): 1 | Dia. D (mm): 2 | Shank dia. d (mm): 4 | l1 (mm): 6 | l2 (mm): 20 | Overall length L (mm): 80 | Flutes: 4
DBE4020-080-N300S04Ball radius R (mm): 1 | Dia. D (mm): 2 | Shank dia. d (mm): 4 | l1 (mm): 6 | l2 (mm): 30 | Overall length L (mm): 80 | Flutes: 4
DBE4020-080-N400S04Ball radius R (mm): 1 | Dia. D (mm): 2 | Shank dia. d (mm): 4 | l1 (mm): 6 | l2 (mm): 40 | Overall length L (mm): 80 | Flutes: 4
DBE4030-060-N100S04Ball radius R (mm): 1.5 | Dia. D (mm): 3 | Shank dia. d (mm): 4 | l1 (mm): 9 | l2 (mm): 10 | Overall length L (mm): 60 | Flutes: 4
DBE4030-100-N150S04Ball radius R (mm): 1.5 | Dia. D (mm): 3 | Shank dia. d (mm): 4 | l1 (mm): 9 | l2 (mm): 15 | Overall length L (mm): 100 | Flutes: 4
DBE4030-100-N200S04Ball radius R (mm): 1.5 | Dia. D (mm): 3 | Shank dia. d (mm): 4 | l1 (mm): 9 | l2 (mm): 20 | Overall length L (mm): 100 | Flutes: 4
DBE4030-100-N300S04Ball radius R (mm): 1.5 | Dia. D (mm): 3 | Shank dia. d (mm): 4 | l1 (mm): 9 | l2 (mm): 30 | Overall length L (mm): 100 | Flutes: 4
DBE4030-100-N400S04Ball radius R (mm): 1.5 | Dia. D (mm): 3 | Shank dia. d (mm): 4 | l1 (mm): 9 | l2 (mm): 40 | Overall length L (mm): 100 | Flutes: 4
DBE4030-100-N500S04Ball radius R (mm): 1.5 | Dia. D (mm): 3 | Shank dia. d (mm): 4 | l1 (mm): 9 | l2 (mm): 50 | Overall length L (mm): 100 | Flutes: 4
DBE4040-060-N160S04Ball radius R (mm): 2 | Dia. D (mm): 4 | Shank dia. d (mm): 4 | l1 (mm): 12 | l2 (mm): 16 | Overall length L (mm): 60 | Flutes: 4
DBE4040-080-N160S04Ball radius R (mm): 2 | Dia. D (mm): 4 | Shank dia. d (mm): 4 | l1 (mm): 12 | l2 (mm): 16 | Overall length L (mm): 80 | Flutes: 4
DBE4040-100-N160S04Ball radius R (mm): 2 | Dia. D (mm): 4 | Shank dia. d (mm): 4 | l1 (mm): 12 | l2 (mm): 16 | Overall length L (mm): 100 | Flutes: 4
DBE4040-130-N160S04Ball radius R (mm): 2 | Dia. D (mm): 4 | Shank dia. d (mm): 4 | l1 (mm): 12 | l2 (mm): 16 | Overall length L (mm): 130 | Flutes: 4
DBE4060-080-N250S06Ball radius R (mm): 3 | Dia. D (mm): 6 | Shank dia. d (mm): 6 | l1 (mm): 20 | l2 (mm): 25 | Overall length L (mm): 80 | Flutes: 4
DBE4060-110-N250S06Ball radius R (mm): 3 | Dia. D (mm): 6 | Shank dia. d (mm): 6 | l1 (mm): 20 | l2 (mm): 25 | Overall length L (mm): 110 | Flutes: 4
DBE4060-150-N300S06Ball radius R (mm): 3 | Dia. D (mm): 6 | Shank dia. d (mm): 6 | l1 (mm): 20 | l2 (mm): 30 | Overall length L (mm): 150 | Flutes: 4
DBE4080-080-N300S08Ball radius R (mm): 4 | Dia. D (mm): 8 | Shank dia. d (mm): 8 | l1 (mm): 25 | l2 (mm): 30 | Overall length L (mm): 80 | Flutes: 4
DBE4080-110-N300S08Ball radius R (mm): 4 | Dia. D (mm): 8 | Shank dia. d (mm): 8 | l1 (mm): 25 | l2 (mm): 30 | Overall length L (mm): 110 | Flutes: 4
DBE4080-150-N350S08Ball radius R (mm): 4 | Dia. D (mm): 8 | Shank dia. d (mm): 8 | l1 (mm): 25 | l2 (mm): 35 | Overall length L (mm): 150 | Flutes: 4
DBE4080-200-N400S08Ball radius R (mm): 4 | Dia. D (mm): 8 | Shank dia. d (mm): 8 | l1 (mm): 25 | l2 (mm): 40 | Overall length L (mm): 200 | Flutes: 4
DBE4100-080-N350S10Ball radius R (mm): 5 | Dia. D (mm): 10 | Shank dia. d (mm): 10 | l1 (mm): 30 | l2 (mm): 35 | Overall length L (mm): 80 | Flutes: 4
DBE4100-110-N350S10Ball radius R (mm): 5 | Dia. D (mm): 10 | Shank dia. d (mm): 10 | l1 (mm): 30 | l2 (mm): 35 | Overall length L (mm): 110 | Flutes: 4
DBE4100-150-N400S10Ball radius R (mm): 5 | Dia. D (mm): 10 | Shank dia. d (mm): 10 | l1 (mm): 30 | l2 (mm): 40 | Overall length L (mm): 150 | Flutes: 4
DBE4100-200-N500S10Ball radius R (mm): 5 | Dia. D (mm): 10 | Shank dia. d (mm): 10 | l1 (mm): 30 | l2 (mm): 50 | Overall length L (mm): 200 | Flutes: 4
DBE4120-110-N500S12Ball radius R (mm): 6 | Dia. D (mm): 12 | Shank dia. d (mm): 12 | l1 (mm): 35 | l2 (mm): 50 | Overall length L (mm): 110 | Flutes: 4
DBE4120-150-N500S12Ball radius R (mm): 6 | Dia. D (mm): 12 | Shank dia. d (mm): 12 | l1 (mm): 35 | l2 (mm): 50 | Overall length L (mm): 150 | Flutes: 4
DBE4120-200-N600S12Ball radius R (mm): 6 | Dia. D (mm): 12 | Shank dia. d (mm): 12 | l1 (mm): 35 | l2 (mm): 60 | Overall length L (mm): 200 | Flutes: 4
