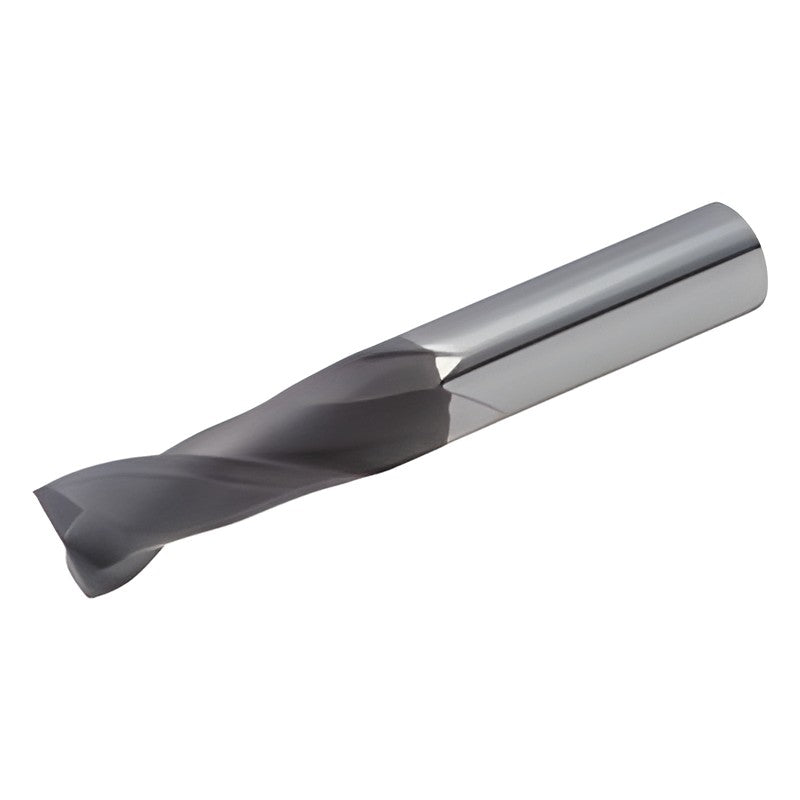

Korloy DFE2000 Diamond Coated Flat End Mill

Korloy DFE2000 Diamond Coated Flat End Mill

Diamond coated solid carbide end mill with tangential cutting-edge geometry for excellent surface finish and wear resistance, e.g. on graphite molds.

Key features

  • Tangential cutting-edge geometry
  • High hardness, high purity diamond coating
  • Prevents stepped cone on the machined surface

Specifications

Grade ND3000 (diamond coated)
Helix angle 30 deg
Shank tolerance h6
DFE2010-045-N050S04 Dia. D (mm): 1 | Shank dia. d (mm): 4 | l1 (mm): 3 | l2 (mm): 5 | Overall length L (mm): 45 | Flutes: 2
DFE2010-060-N050S04 Dia. D (mm): 1 | Shank dia. d (mm): 4 | l1 (mm): 3 | l2 (mm): 5 | Overall length L (mm): 60 | Flutes: 2
DFE2010-060-N100S04 Dia. D (mm): 1 | Shank dia. d (mm): 4 | l1 (mm): 3 | l2 (mm): 10 | Overall length L (mm): 60 | Flutes: 2
DFE2010-060-N150S04 Dia. D (mm): 1 | Shank dia. d (mm): 4 | l1 (mm): 3 | l2 (mm): 15 | Overall length L (mm): 60 | Flutes: 2
DFE2010-060-N200S04 Dia. D (mm): 1 | Shank dia. d (mm): 4 | l1 (mm): 3 | l2 (mm): 20 | Overall length L (mm): 60 | Flutes: 2
DFE2010-060-N250S04 Dia. D (mm): 1 | Shank dia. d (mm): 4 | l1 (mm): 3 | l2 (mm): 25 | Overall length L (mm): 60 | Flutes: 2
DFE2015-060-N050S04 Dia. D (mm): 1.5 | Shank dia. d (mm): 4 | l1 (mm): 4 | l2 (mm): 5 | Overall length L (mm): 60 | Flutes: 2
DFE2015-060-N100S04 Dia. D (mm): 1.5 | Shank dia. d (mm): 4 | l1 (mm): 4 | l2 (mm): 10 | Overall length L (mm): 60 | Flutes: 2
DFE2015-060-N150S04 Dia. D (mm): 1.5 | Shank dia. d (mm): 4 | l1 (mm): 4 | l2 (mm): 15 | Overall length L (mm): 60 | Flutes: 2
DFE2015-060-N200S04 Dia. D (mm): 1.5 | Shank dia. d (mm): 4 | l1 (mm): 4 | l2 (mm): 20 | Overall length L (mm): 60 | Flutes: 2
DFE2015-060-N250S04 Dia. D (mm): 1.5 | Shank dia. d (mm): 4 | l1 (mm): 4 | l2 (mm): 25 | Overall length L (mm): 60 | Flutes: 2
DFE2020-045-N080S04 Dia. D (mm): 2 | Shank dia. d (mm): 4 | l1 (mm): 6 | l2 (mm): 8 | Overall length L (mm): 45 | Flutes: 2
DFE2020-080-N080S04 Dia. D (mm): 2 | Shank dia. d (mm): 4 | l1 (mm): 6 | l2 (mm): 8 | Overall length L (mm): 80 | Flutes: 2
DFE2020-080-N100S04 Dia. D (mm): 2 | Shank dia. d (mm): 4 | l1 (mm): 6 | l2 (mm): 10 | Overall length L (mm): 80 | Flutes: 2
DFE2020-080-N150S04 Dia. D (mm): 2 | Shank dia. d (mm): 4 | l1 (mm): 6 | l2 (mm): 15 | Overall length L (mm): 80 | Flutes: 2
DFE2020-080-N200S04 Dia. D (mm): 2 | Shank dia. d (mm): 4 | l1 (mm): 6 | l2 (mm): 20 | Overall length L (mm): 80 | Flutes: 2
DFE2020-080-N250S04 Dia. D (mm): 2 | Shank dia. d (mm): 4 | l1 (mm): 6 | l2 (mm): 25 | Overall length L (mm): 80 | Flutes: 2
DFE2020-080-N300S04 Dia. D (mm): 2 | Shank dia. d (mm): 4 | l1 (mm): 6 | l2 (mm): 30 | Overall length L (mm): 80 | Flutes: 2
DFE2020-080-N400S04 Dia. D (mm): 2 | Shank dia. d (mm): 4 | l1 (mm): 6 | l2 (mm): 40 | Overall length L (mm): 80 | Flutes: 2
DFE2030-050-N100S06 Dia. D (mm): 3 | Shank dia. d (mm): 6 | l1 (mm): 9 | l2 (mm): 10 | Overall length L (mm): 50 | Flutes: 2
DFE2030-080-N100S04 Dia. D (mm): 3 | Shank dia. d (mm): 4 | l1 (mm): 9 | l2 (mm): 10 | Overall length L (mm): 80 | Flutes: 2
DFE2030-080-N200S04 Dia. D (mm): 3 | Shank dia. d (mm): 4 | l1 (mm): 9 | l2 (mm): 20 | Overall length L (mm): 80 | Flutes: 2
DFE2030-080-N250S04 Dia. D (mm): 3 | Shank dia. d (mm): 4 | l1 (mm): 9 | l2 (mm): 25 | Overall length L (mm): 80 | Flutes: 2
DFE2030-080-N300S04 Dia. D (mm): 3 | Shank dia. d (mm): 4 | l1 (mm): 9 | l2 (mm): 30 | Overall length L (mm): 80 | Flutes: 2
DFE2030-080-N400S04 Dia. D (mm): 3 | Shank dia. d (mm): 4 | l1 (mm): 9 | l2 (mm): 40 | Overall length L (mm): 80 | Flutes: 2
DFE2040-050-N160S06 Dia. D (mm): 4 | Shank dia. d (mm): 6 | l1 (mm): 12 | l2 (mm): 16 | Overall length L (mm): 50 | Flutes: 2
DFE2040-080-N160S04 Dia. D (mm): 4 | Shank dia. d (mm): 4 | l1 (mm): 12 | l2 (mm): 16 | Overall length L (mm): 80 | Flutes: 2
DFE2050-060-N200S06 Dia. D (mm): 5 | Shank dia. d (mm): 6 | l1 (mm): 15 | l2 (mm): 20 | Overall length L (mm): 60 | Flutes: 2
DFE2050-110-N200S06 Dia. D (mm): 5 | Shank dia. d (mm): 6 | l1 (mm): 15 | l2 (mm): 20 | Overall length L (mm): 110 | Flutes: 2
DFE2060-060-N180S06 Dia. D (mm): 6 | Shank dia. d (mm): 6 | l1 (mm): 18 | Overall length L (mm): 60 | Flutes: 2
DFE2060-110-N250S06 Dia. D (mm): 6 | Shank dia. d (mm): 6 | l1 (mm): 18 | l2 (mm): 25 | Overall length L (mm): 110 | Flutes: 2
DFE2060-150-N250S06 Dia. D (mm): 6 | Shank dia. d (mm): 6 | l1 (mm): 18 | l2 (mm): 25 | Overall length L (mm): 150 | Flutes: 2
DFE2080-070-N250S08 Dia. D (mm): 8 | Shank dia. d (mm): 8 | l1 (mm): 25 | Overall length L (mm): 70 | Flutes: 2
DFE2080-150-N400S08 Dia. D (mm): 8 | Shank dia. d (mm): 8 | l1 (mm): 25 | l2 (mm): 40 | Overall length L (mm): 150 | Flutes: 2
DFE2100-080-N300S10 Dia. D (mm): 10 | Shank dia. d (mm): 10 | l1 (mm): 30 | Overall length L (mm): 80 | Flutes: 2
DFE2100-150-N500S10 Dia. D (mm): 10 | Shank dia. d (mm): 10 | l1 (mm): 30 | l2 (mm): 50 | Overall length L (mm): 150 | Flutes: 2
DFE2120-080-N350S12 Dia. D (mm): 12 | Shank dia. d (mm): 12 | l1 (mm): 35 | Overall length L (mm): 80 | Flutes: 2
DFE2120-150-N600S12 Dia. D (mm): 12 | Shank dia. d (mm): 12 | l1 (mm): 35 | l2 (mm): 60 | Overall length L (mm): 150 | Flutes: 2
End MillsKorloy
38 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy DFE2000 Diamond Coated Flat End Mill

Brand Korloy·End Mills

Available part numbers (38)

DFE2010-045-N050S04, DFE2010-060-N050S04, DFE2010-060-N100S04, DFE2010-060-N150S04, DFE2010-060-N200S04, DFE2010-060-N250S04, DFE2015-060-N050S04, DFE2015-060-N100S04, DFE2015-060-N150S04, DFE2015-060-N200S04 + 28 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
